Installation Guide

EN

Decorative door and bottom-
drawer panels layout

The dimensions of the panels are indicated in the table
and drawings on next pages.
Nevertheless, according to the requirements for aligning
with other kitchen structures, the door panel can be high-
er than the upper edge of the refrigerator door, and the
drawer panel can be lower than the edge of the drawer.
The panels must be mounted using special braces which
attach to adjustable devices provided on the door and
drawer and with brackets that anchor and adjust the
panel’s vertical direction.
Braces, brackets and fixing screws are provided with the
appliance and must be applied to the panel as indicat-
ed.

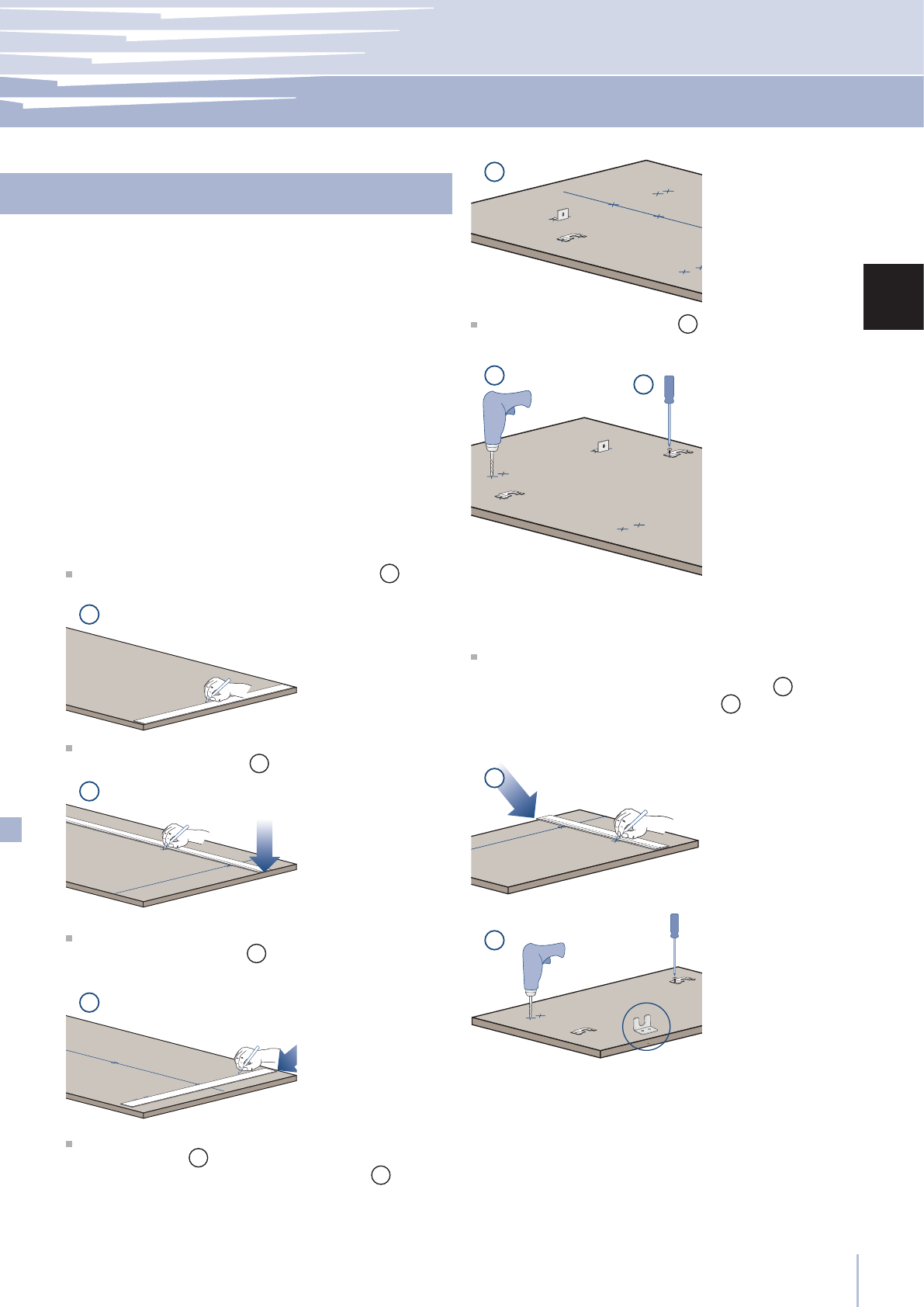

Operate as follows:
To prepare the panels to be mounted on the appliance,
follow these steps, working on the back of the panel.

Door Panel

  Trace, a line dividing the panel width in half

1

.

  Starting form the Bottom edge of the panel, mark the

positioning of the brackets

2

.

  Following the corresponding table, mark the external

and then the internal hole

3

.

  Position the brackets on each set of marks to make sure

they are aligned

4

, then drill holes through the panel

(pay close attention to the panel’s thickness)

5

.

  Screw the brackets in place

6

.

Drawer Panel

  When preparing the Drawer Panel, follow the same in-

structions as per the door panel, but make sure measure-
ments are taken starting from the top edge

7

. The sup-

port bracket faces the opposite way

8

 (note imgs 4 and

8).
