29

ENGLISH

Detection lever

The volume of ice cubes are

checked periodically by the

detection lever.

Ice cube volume will decrease when

the ice cubes are not smoothed.

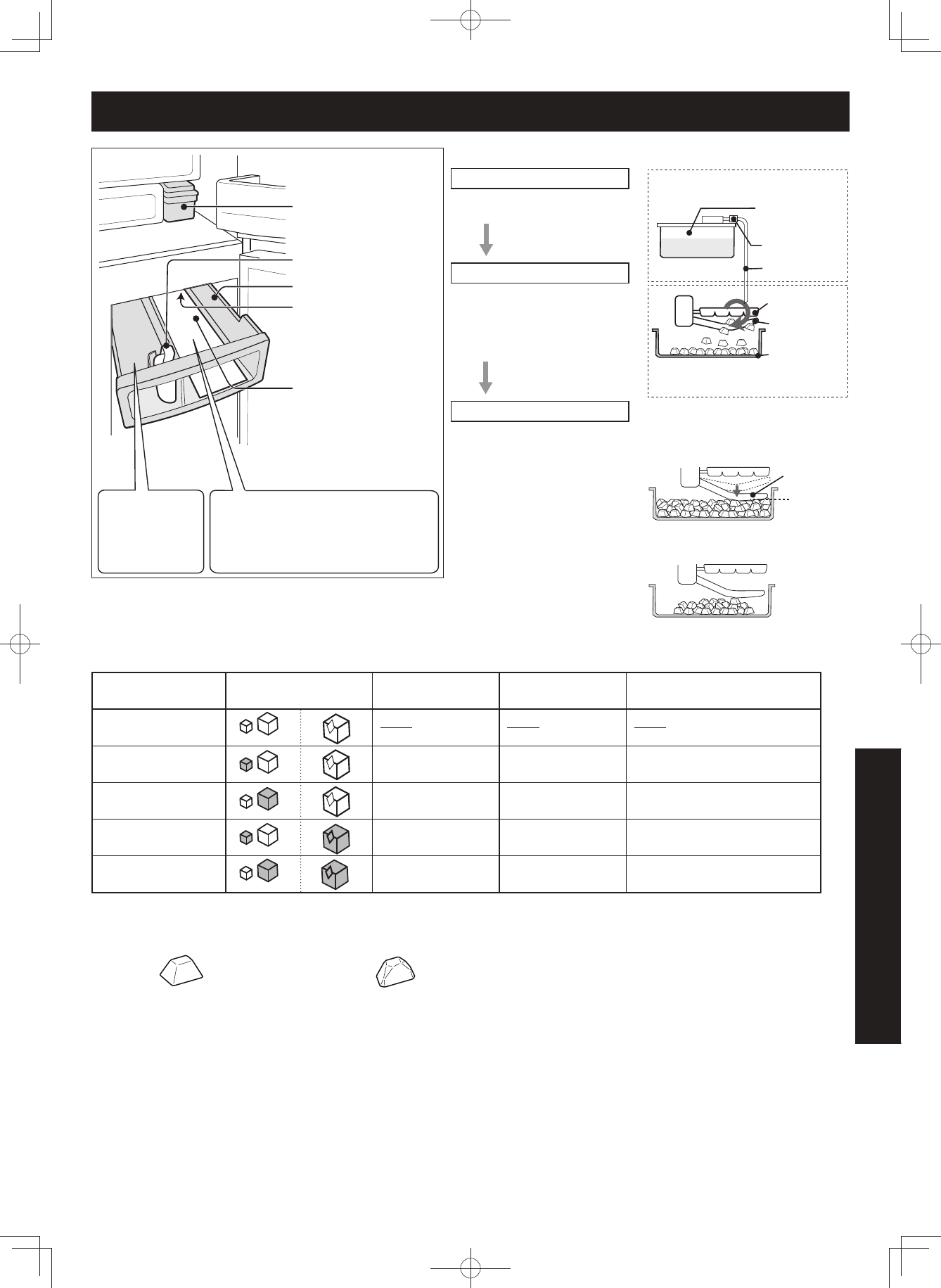

AUTOMATIC ICE MAKER

Water tank

(Approx. 1.8 L)

Shovel
Ice storage box

Noise-prevention

sheet

To turn down the

dropping sound of ice

cubes.

Do not throw away this

sheet.

Ice storage area

Stored ice cube volume (Maximum)

Normal size ice    : Approx. 232 pcs.

Large size ice    : Approx. 112 pcs.

Food area

Store the small

frozen food.

How ice cubes are made

Water supply

Water is sent from the

●

water tank to the ice tray.

Ice making

Ice cubes are made.

●

(8 pieces at one time)

The number of ice cubes

●

per cycle may sometimes

change.

Releasing

Ice tray rotates, releasing

●

the ice and returns to

“Water supply”.

The ice tray will not rotate

●

when the ice storage box

is full.

<Refrigerator compartment>

Water tank

Pump
Pipe

Ice tray

Detection

lever

Ice storage

box

<Freezer compartment>

Detection

lever

Full volume

(About half the volume)

Kinds of ice making mode

There are 5 modes you can choose as shown below.

The size or the clarity of ice cube differs according to the selected mode.

Mode

Icon

Ice size

Clarity of ice

Required time

for each ice making

Ice making OFF

[

Normal ice

[

Normal

Normal

Approx.2 hours

Large ice

[

Large

Normal

Approx.3 and a half hours

Clear ice

(Normal size)

[

Normal

High

Approx.6 hours

Clear ice

(Large size)

[

Large

High

Approx.8 hours

NOTE

2 types of ice cube are made at the same time.

•

Cube

Multifaceted shape

More than one mode cannot be selected at one time.

•

The ice making time as shown above is only a rough indication

•

at the ambient temperature of 30°C, the temperature

adjustment set to Med, Energy saving turned off, and with no

opening or closing of the doors.

Ice making right after changing the mode

The first batch of ice cubes made right after changing the

•

operating mode does not reflect the change in size or clarity.

This is because there are still half-made ice cubes left in the

ice tray when switching to the changed mode. Ice cubes of the

2nd batch or later will reflect the mode change.

Ice making takes longer when:

The room temperature is high.

•

Less cooling operation, e.g. in winter.

•

Many food products are stored.

•

Refrigerator is defrosting.

•

The door is frequently opened.

•

When you restart the ice making operation.

•

Energy saving mode is in operation.

•

The clarity of clear ice is declined

under the following conditions

Ice making is carried out for the first time.

•

Large amount of food is stored in the other compartments.

•

Energy saving or Express freezing is in operation.

•

The temperature is set higher or lower than the initial

•

temperature adjustment. (Refrigerator : 3°C, Freezer : -18°C)

Ice tray

Ice tray is located at

the upper section in the

back.

(Unremovable)

The indication will disappear.
