15

EN

NOTE

•

This water line installation is not covered by the

appliance warranty.

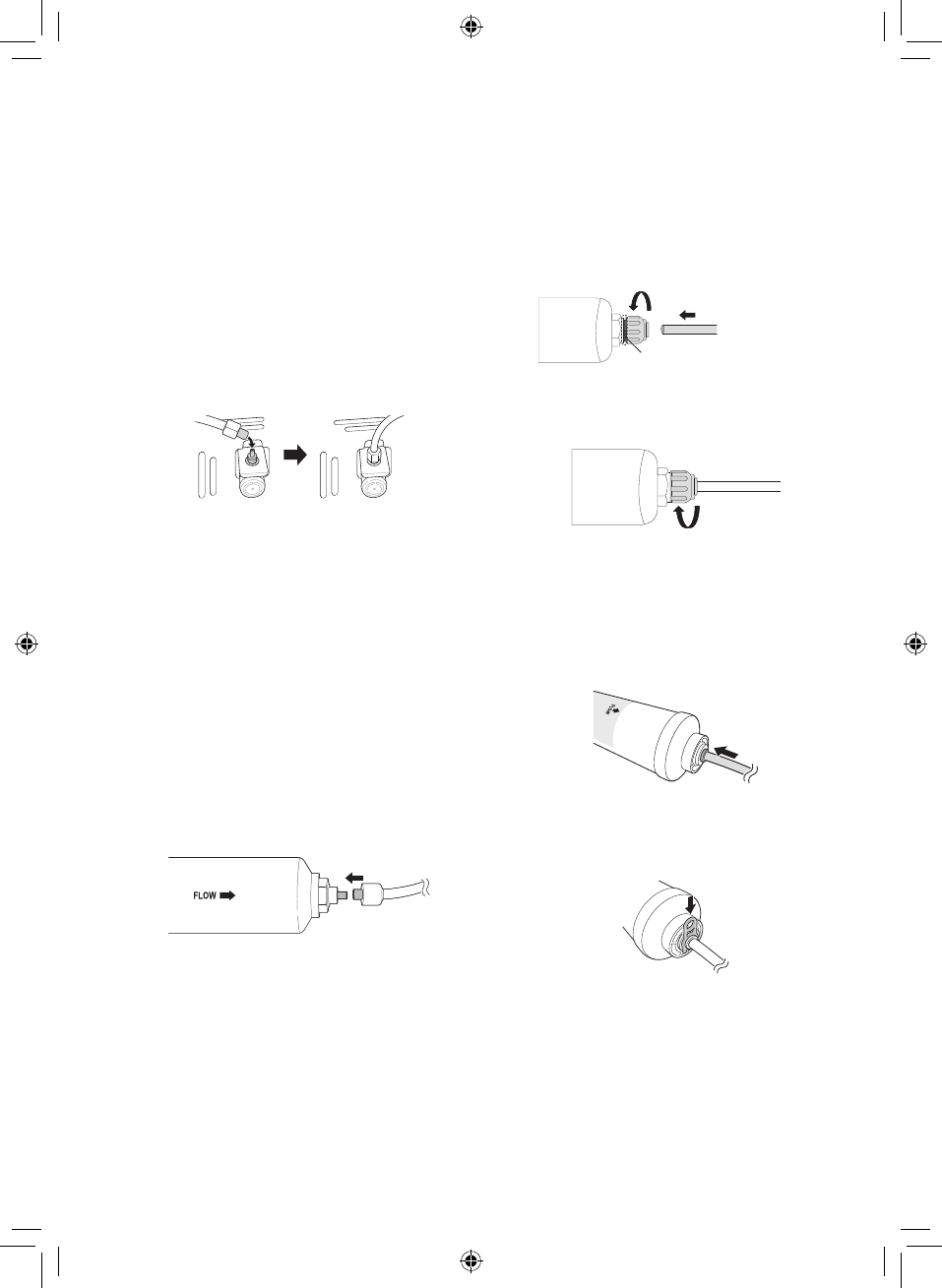

Connecting to the Appliance

1

Unscrew the metal threaded collar nut at the

back of the appliance and place it over one

end of the water tube.

2

Firmly push the water tube onto the water

inlet valve and tighten up the collar nut.

Connecting to the Water Filter

There are two types of filters. The methods of

connection are different. One has a threaded

plastic nut fitting and the other uses a self locking

push fit connectors. The filter is marked with the

direction of the water flow from the water tap to the

appliance.

<Type 1>

1

Unscrew the threaded connector and place it

over the end of the cut section of pipe coming

from the appliance. Push the pipe over the

end of the filter that the flow arrow points to

and tighten up the threaded connector.

2

Repeat the same process on the other end

of the filter using the remainder of the water

tube.

<Type 2>

1

Cut the tubing end squarely, then check for

and remove any burrs. Push the fitting onto

the end of tubing, making sure the end is fully

sealed.

(1)

(2)

Colored line in the water filter

2

Tighten the screw cap until the colored line in

the water filter is no longer visible.

<Type 3>

1

Firmly push the water tube connected from

the appliance into the end that has the arrow

pointing outward. Push the tube all the way in

(approx. 10-12 mm).

2

After inserting the tube securely into the filter,

fit the locking clip into position under the pull

up collar.

3

Repeat on the other end of the filter using the

remainder of the water tube.
