9 ENGLISH

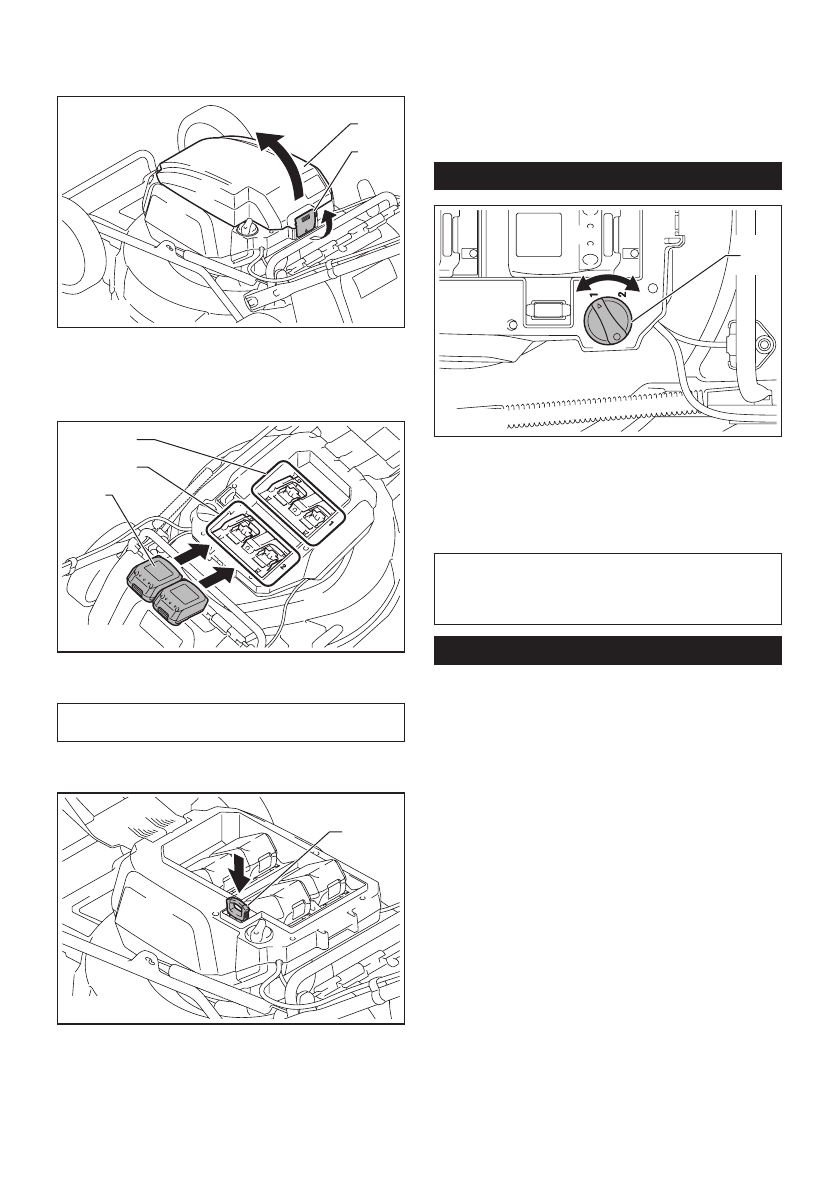

To install the battery cartridge;
1.

  Pull up the locking lever, and then open the battery

cover.

1
2

►

1.

 Battery cover

2.

 Locking lever

2.

  Align the tongue on the battery cartridge with the

slot on the machine, and then slide the cartridge until it

locks in place with a little click.

1
2

3

►

(1)

 Battery port 1

(2)

 Battery port 2

(3)

 Battery

cartridge

NOTE:

 Install at least 2 battery cartridges to battery

port 1 or battery port 2.

3.

  Insert the lock key in the place shown in the figure

as far as it will go.

1

►

1.

 Lock key

4.

  Close the battery cover and push it until it is

latched with the locking lever.

To remove the battery cartridge;
1.

  Pull up the locking lever and open the battery cover.

2.

  Pull out the battery cartridge from the machine

while sliding the button on the front of the cartridge.

3.

  Pull out the lock key.

4.

  Close the battery cover.

Switching the battery cartridges

1

►

1.

 Battery selection switch

The machine uses 2 battery cartridges for operation

at a time. Up to 4 battery cartridges can be installed to

the machine. Before operating the machine, select the

battery port 1 or battery port 2 by turning the battery

selection switch.

NOTE:

 If only 2 battery cartridges are installed to the

machine, be sure to select the battery port to which

the battery cartridges are installed using the battery

selection switch.

Machine / battery protection system

The machine is equipped with a machine/battery protec-

tion system. This system automatically cuts off power to

the motor to extend machine and battery life. The machine

will automatically stop during operation if the machine or

battery is placed under one of the following conditions:

Overload protection

When the battery is operated in a manner that causes

it to draw an abnormally high current, the machine

automatically stops and the main power lamp blinks in

green. In this situation, turn the machine off and stop

the application that caused the machine to become

overloaded. Then turn the machine on to restart.

Overheat protection

When the machine or battery is overheated, the

machine stops automatically and the main power lamp

lights up in red. In this case, let the machine and battery

cool before turning the machine on again.

Overdischarge protection

When the battery capacity is not enough, the machine

stops automatically and the main power lamp blinks in

red. In this case, remove the battery from the machine

and charge the battery cartridges or change the battery

cartridges to fully charged ones.
