4

C H A P T E R   O N E

MFC 1870MC and MFC 1970MC

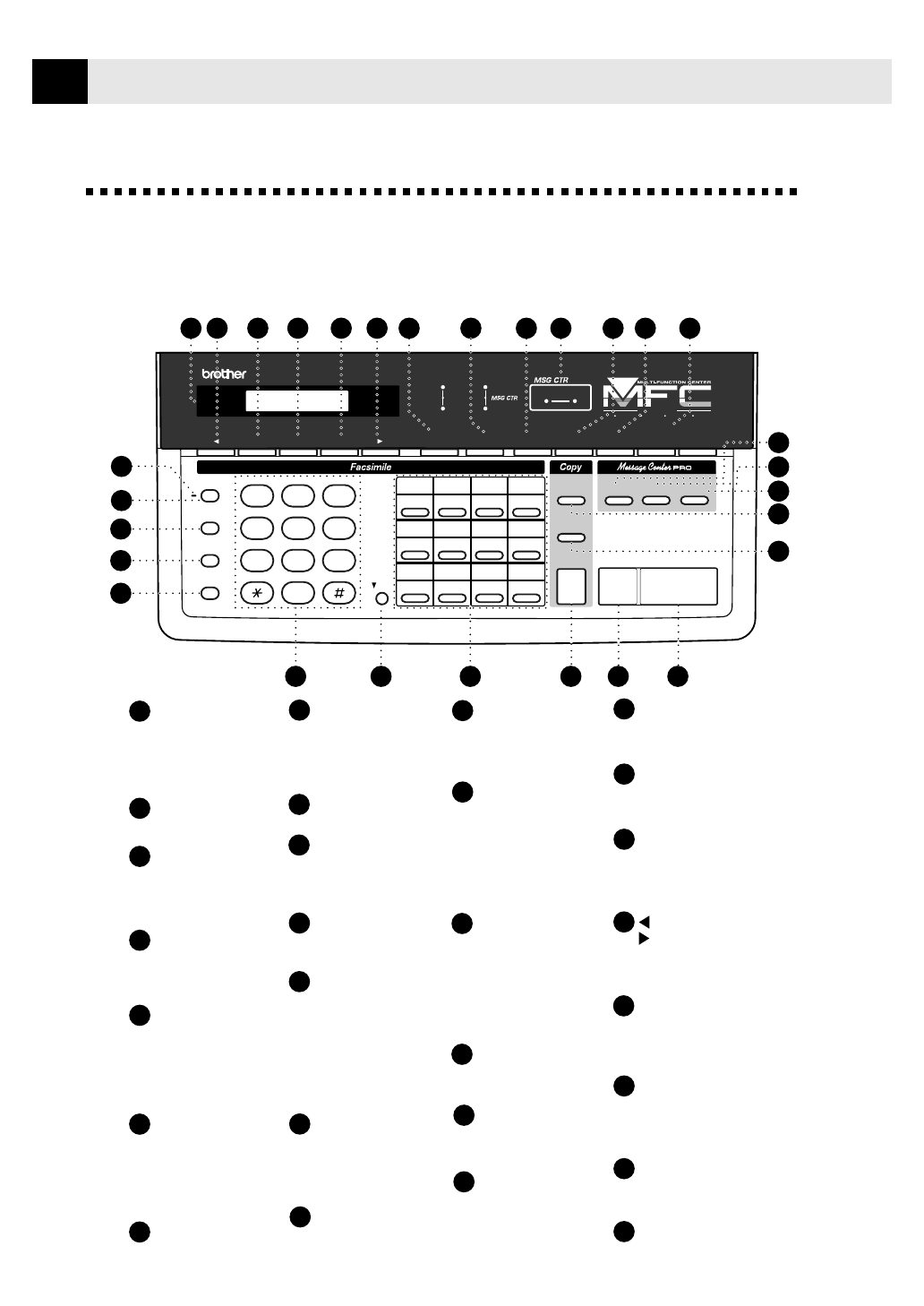

Control Panel Overview

Hold

Redial / Pause

Speaker phone

1

4

7

5

6

2

3

8

9

0

A B C

D E F

G H I

J K L

M N O

PQR S

T U V

W X YZ

Speed Dial

MFC 1970MC

FAX

PRINTER

COPIER

SCANNER

PC FAX

FIVE

IN



ONE

Plain

Paper

Shift

02

03

04

14

15

16

06

07

08

10

11

12

18

19

20

22

23

24

01

13

05

09

17

21

Stop

Start

Function

Clear

Set

Resolution

Copy

Sort

Enlarge/

Reduce

Mode

Help

Low

Q.Scan

High

Tel-index

Record

Erase

Play

6

6

7

7

8

9

Fine


S.Fine

FAX

F/T

FAX

Voice

status

- Speaker Volume -

3

4

5

2

1

6

7

8

9

10

11

13

12

14

15

16

24

25

27

26

24

28

17

18

19

20

21

22

23

6

7

8

24

9

25

10

11

3

4

5

2

1

13

19

17

20

18

22

23

21

27

26

28

14

15

16

12

Speaker Phone

Lets you speak to the
person at the other end
and dial telephone and
fax numbers without
lifting the handset.

Hold

Lets you put calls on hold.

Microphone

Picks up your voice
when you speak with
another party using
speaker phone.

Redial / Pause

Redials the last number
called. Also inserts a
pause in autodial
numbers.

Speed Dial

Lets you dial stored
phone numbers by press-
ing a two-digit number.

Dial Pad

Dials phone and fax
numbers, and can be
used as a keyboard for
entering information
into the MFC.

Shift

Use this key to access

“13” through “24” One

Touch keys.

(Left Arrow)
(Right Arrow)

Moves the LCD cursor to
the left or right.

Set

Stores a function setting
into the MFC.

Clear

Deletes entered data or
backs up one step in
function procedure.

Copy

Makes a  copy.

Stop

Stops a fax, cancels an
operation, or exits
from function mode.

Start

Starts an operation,
such as sending a fax.

Sort

Use this key when you
want multiple copies of
a multiple page origi-
nal copied in order.

Enlarge/Reduce

Use this key to enlarge or re-
duce copies depending on
the ratio you select: 150%,
125%, 120%, 100%, 93%,
87%, 75% or 50%.
To reduce the image size au-
tomatically select  AUTO.

MSG CTR Status

Indicator lights remind
you that you have voice
or fax messages in the
memory.

Speaker Volume
Low

High

You can press to decrease
or increase speaker vo-
lume during a call using
Speaker Phone or while
playing a message.

One Touch Dial Keys

These twelve keys give
you instant access to
previously stored
phone numbers.

Q. Scan

Lets you take advantage
of memory transmission.

Help

Prints a quick reference
Help List.

Mode

Resolution

Sets the resolution when
you send a fax or make a
copy.

Function

Lets you access the func-
tion and programming
mode.

Tel-index

Lets you look up numbers
stored in the dialing memory.

Liquid Crystal Display

Play

Lets you listen to voice mes-
sages and outgoing messag-
es, and print fax messages
stored in memory.

Erase

Lets you delete voice
messages, fax messages
or all messages.

Record

Lets you record Outgo-
ing Message (OGM),
memos and telephone
calls, and store infor-
mation for Message
Center Pro features.

LCD displays messages to
help you set up and oper-
ate your MFC.

Use to select how MFC will
handle incoming calls.
