I N T R O D U C T I O N
FAX 1570MC Control Panel
Overview
Stop
Start
02
03
04
14
15
16
06
07
08
10
11
12
18
19
20
22
23
24
1
4
7
5
6
2
3
8
9
0
A B C
D E F
G H I
J K L
M N O
PQR S
T U V
W X YZ
Shift
Sort
Enlarge/
Reduce
Copy
01
13
05
09
17
21
Record
Erase
Play
Hold
Redial / Pause
Speaker Phone
Speed Dial
Fine
S.Fine
Resolution
Mode
Tel-index
Q.Scan
Help
Function
Set
Clear
Low
- Speaker Volume -
High
FAX
F/T
FAX
Voice
status
P L A I N P A P E R F A C S I M I L E
1570MC
3
4
5
6
7
8
9
10
11
24
25
27
26
24
28
2
13
12
14
15
16
17
18
19
20
21
22
23
6
7
8
24
9
25
10
11
3
4
5
2
1
13
19
17
20
18
22
23
21
27
26
28
14
15
16
12
1

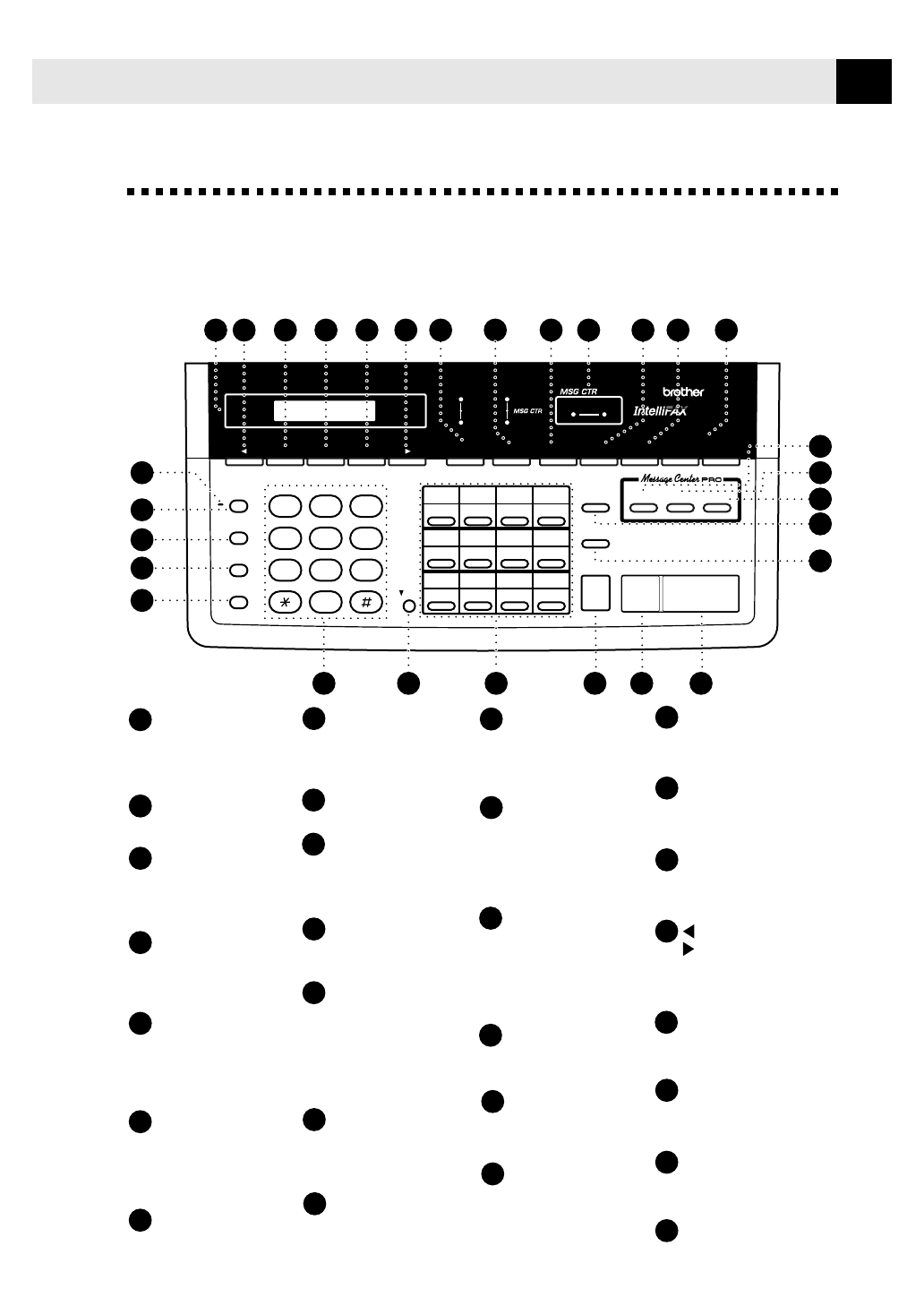

Speaker Phone
Lets you speak to the person
at the other end and dial tele-
phone and fax numbers with-
out lifting the handset.
Hold
Lets you put calls on hold.
Microphone
Picks up your voice when you
speak with another party using
speaker phone.
Redial / Pause
Redials the last number called.
Also inserts a pause in autodial
numbers.
Speed Dial
Lets you dial stored phone
numbers by pressing a two-
digit number.
Dial Pad
Dials phone and fax
numbers, and can be used as
a keyboard for entering infor-
mation into the FAX.
Shift
Use this key to access “13”
through “24” One Touch
keys.
(Left Arrow)
(Right Arrow)
Moves the LCD cursor to the
left or right.
Set
Stores a function setting into
the FAX.
Clear
Deletes entered data or backs up
one step in function procedure.
Copy
Makes a copy.
Stop
Stops a fax, cancels an opera-
tion, or exits from function
mode.
Start
Starts an operation, such as
sending a fax.
Sort
Use this key when you want
multiple copies of a multiple
page original copied in order.
Enlarge/Reduce
Use this key to enlarge or reduce
copies depending on the ratio
you select: 150%, 125%, 120%,
100%, 93%, 87%, 75% or 50%.
To reduce the image size au-
tomatically, select AUTO.
MSG CTR Status
Indicator lights remind you
that you have voice or fax mes-
sages in the memory.
Speaker Volume
Low
High
You can press to decrease or in-
crease speaker volume during a
call using Speaker Phone or
while playing a message.
One Touch Dial Keys
These twelve keys give you in-
stant access to previously
stored phone numbers.
Q. Scan
Lets you take advantage of
memory transmission.
Help
Prints a quick reference Help
List.
Mode
Resolution
Sets the resolution when you
send a fax or make a copy.
Function
Lets you access the function
and programming mode.
Tel-index
Lets you look up numbers stored in
the dialing memory.
Liquid Crystal Display
Play
Lets you listen to voice messages
and outgoing messages, and print
fax messages stored in memory.
Erase
Lets you delete voice messag-
es, fax messages or all mes-
sages.
Record
Lets you record Outgoing
Message (OGM), memos and
telephone calls, and store in-
formation for Message Center
Pro features.
LCD displays messages to help
you set up and operate your
FAX.
Use to select how FAX will handle
incoming calls.
