Installation instructions

 en

35

¡

All work on the appliance, including replacing the
cabling, must only be carried out by the after-sales
service.

19.7 Important information about the
electrical connection

Note the following information and ensure that:

WARNING ‒ Risk of electric shock!

There is a risk of electric shock if you touch live com-
ponents.

▶

Hold the mains plug with dry hands only.

▶

Never pull out the mains plug from the socket while
the appliance is in operation.

▶

Pull out the power cable directly at the plug and
never by pulling the power cable as this may be-
come damaged.

¡

Fit the mains plug and socket together.

¡

The mains plug can be accessed at all times.

¡

The cross section of the cable is sufficient.

¡

The mains cable is not kinked, crushed, modified or
severed.

¡

If required, the mains cable must only be replaced
by a qualified electrician. A replacement mains
cable is available from the after-sales service.

¡

Do not use any multiple plugs or multi-connectors
and extension cords.

¡

The earthing system is correctly installed.

¡

If using a residual current device, only use one that
bears the mark

. The presence of this mark is the

only way to be sure that it fulfils all the applicable
regulations.

¡

The mains cable does not come into contact with
heat sources.

19.8 Power cable with protective contact
plug

Connect the appliance only to a correctly installed,
earthed socket.
If the plug can no longer be accessed following install-
ation, provide a separator in the phases in the fixed
electrical installation in accordance with the set-up in-
structions.

19.9 Power cable without protective contact
plug

Only allow a licensed professional to connect the appli-
ance.
Provide a separator in the phases in the fixed electrical
installation in accordance with the construction instruc-
tions. Identify the phase conductor and the neutral con-
ductor (zero conductor) in the socket. An incorrect con-
nection may damage the appliance.
Only connect in accordance with the connection dia-
gram. The information about the voltage can be found
on the rating plate. Connect the wires of the mains
power cable according to the colour coding:

Cable colour

Cable type

Green-yellow

Earthing cable

Blue

Neutral conductor (zero)

Brown

Phase conductor (external
conductor)

19.10 Only Sweden, Finland and Norway

You can also connect the appliance to the protective
contact system with the enclosed plug. The plug must
be accessible following the installation. If the plug can
no longer be accessed following installation, provide a
separator in the phases in the fixed electrical installa-
tion in accordance with the set-up instructions.

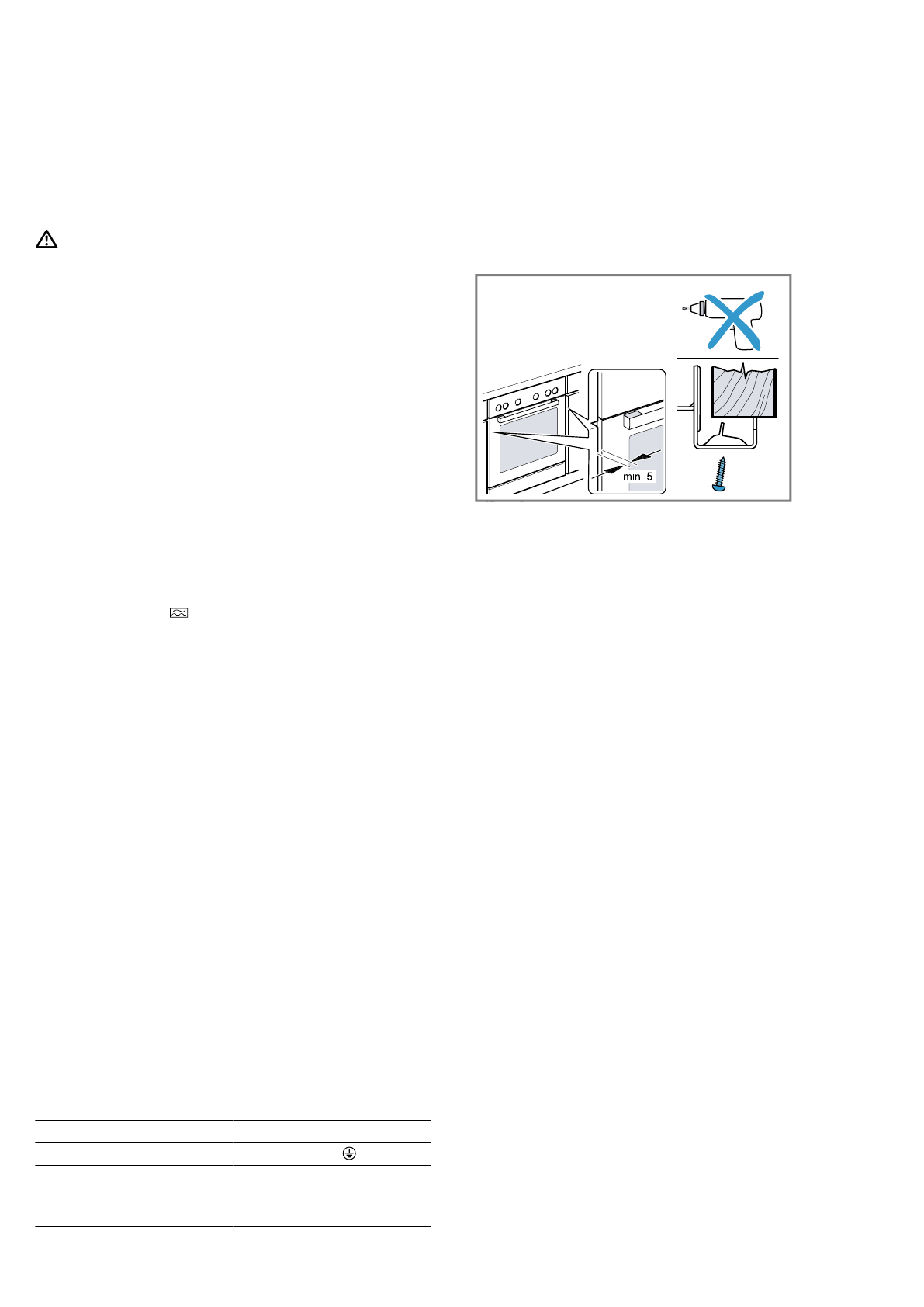

19.11 Securing the appliance

¡

Slide the appliance in fully and centre it.

¡

Screw the appliance into place.

The gap between the worktop and the appliance must
not be closed by additional battens.
Do not attach any thermal insulation strips to the side
panels of the surround unit.
To remove:

¡

Disconnect the appliance from the power supply.

¡

Undo the fastening screws.

¡

Lift the appliance slightly and pull it out completely.
