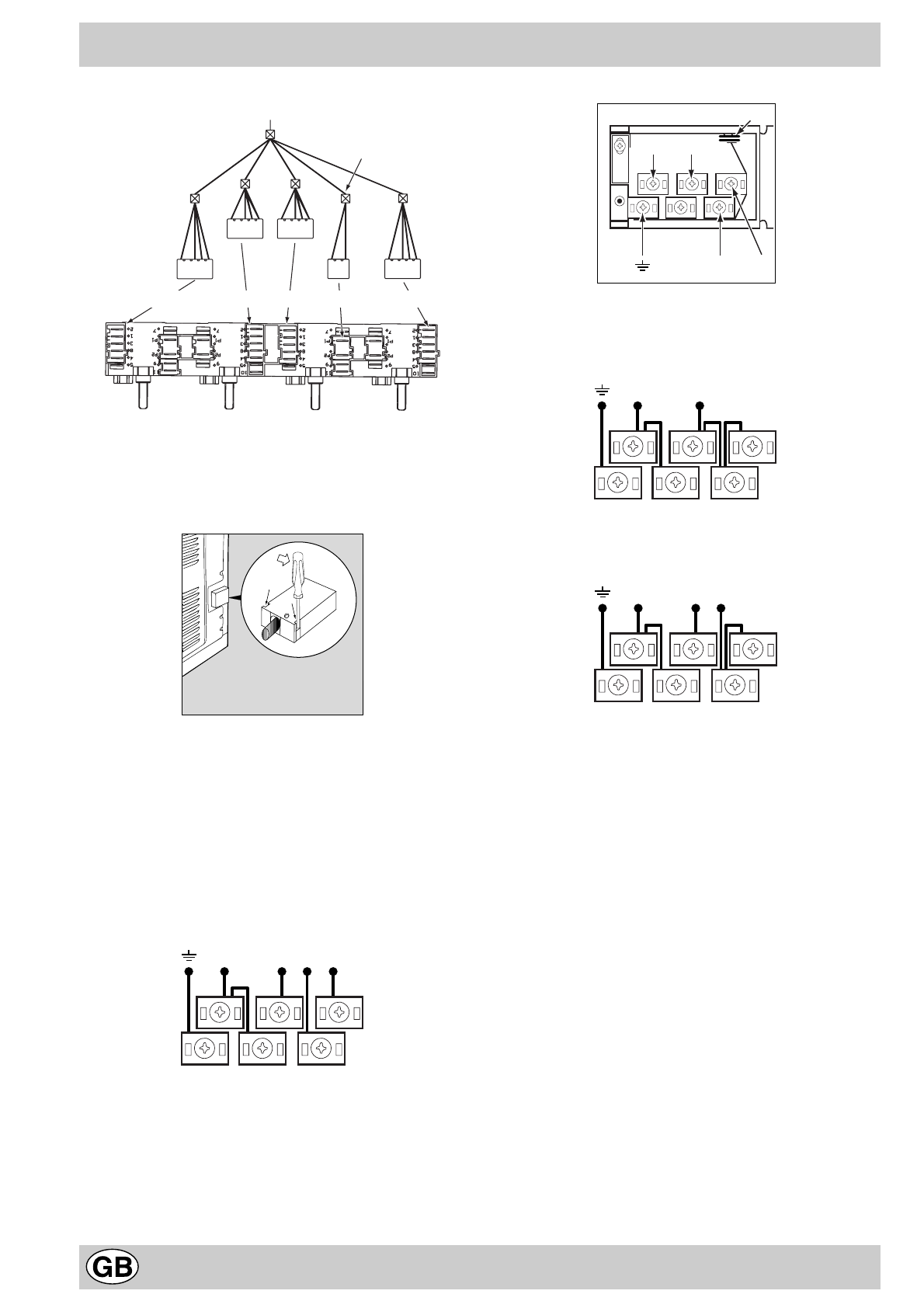

Fitting on a Power Supply Cable
Opening the terminal board:
•

Using a screwdriver, prise on the side tabs of the
terminal board cover;

•

Pull open the cover of the terminal board.

To install the cable, proceed as follows:
•

unscrew the wire clamp screw and the contact screws
Note:  the jumpers are factory-set for a three-phase
400V connection (fig. D).

•

to make the electrical connections illustrated in fig. F
and fig. G, use the two jumpers housed in the box (fig.
E - reference “P”)

•

fasten the supply cable in place with the clamp and
close the cover of the terminal board.

Fig. D

Fig. E

Fig. F

Fig. G

Connecting the supply cable to the mains
Install a standardised plug corresponding to the load indi-
cated on the data plate. When connecting the cable di-
rectly to the mains, install an omnipolar circuit-breaker with
a minimum contact opening of 3 mm between the appli-
ance and the mains. The omnipolar circuit breaker should
be sized according to the load and should comply with
current regulations (the ear th wire should not be inter-
rupted by the circuit breaker).
The supply cable should be positioned so that it does not
reach a temperature of more than 50°C with respect to
the room temperature, anywhere along its length.
Before making the connection, check that:
•

The electrical safety of this appliance can only be guar-
anteed if the cooker is correctly and efficiently ear thed,
in compliance with regulations on electrical safety. Al-
ways ensure that the ear thing is efficient; if you have
any doubts call in a qualified technician to check the
system. The manufacturer declines all responsibility
for damage resulting from a system which has not been
ear thed.

•

Before plugging the appliance into the mains, check
that the specifications indicated on the date plate (on
the appliance and/or packaging) correspond to those
of the electrical mains system of your home.

BUILT-IN HOB

BUILT-IN COOKER

WHITE

RED YELLOW BLUE

GREEN

Only on

certain models

N

L

230V 1N~

H07RN-F 3x4 CEI-UNEL 35364

1

3

2

4

5

N

L2 L1

400V 2N~

H05RR-F 4x2.5 CEI-UNEL 35363

1

3

2

4

5

N

L3

L1

L2

400V 3N~

H05RR-F 5x2.5 CEI-UNEL 35363

1

3

2

4

5

N

L2

L3

L1

P
