Subwoofer control panels

a

LED display

b

VOL-/

:  previous  track  (pressed  short  in  the  Player

mode);

previous station

*

 (pressed short in the Tuner mode);

volume down (pressed long)

c

 VOL+

/

: next track (pressed short in the Player mode);

next station

*

(pressed short in the Tuner mode);

volume up (pressed long)

d

SD/MMC  CARD:

slot  for  SD/MMC  cards

**

contai-

ning МР3 audio files

e

TREBLE: treble level up/down

f

BASS:

bass level up/down

g

IR:

infrared sensor

h

 MODE: AUX/FM/MP3-player switching mode (pressed

short)

i

: Play/Pause (pressed short in the Player mode);

Start/Stop auto scan (pressed long in the Tuner mode)

j

USB:  slot  for  a  USB  flash  device**  containing  МР3

audio files

k

FM ANT: radio antenna input jack

l

 INPUT L

: AUX sound source

left channel

input jack

m

 INPUT

 R: AUX sound source

right channel

input jack

n

OUTPUT R: right speaker output jack

o

OUTPUT L: left speaker output jack

p

 ON/OFF:

power switch

q

Power cord

Remote control

(see Fig. 3)

a

 MUTE

: sound on/off

b

SD:  MP3  player  mode  switch-on  button  (playing  MP3

files from an SD card

**

)

c

 USB

: MP3 player mode switch-on button (playing MP3

files from a USB flash device

**

)

d

TUNE+/-: manual band scanning (in the Tuner mode)

e

CH-/

:  previous  track  (pressed  short  in  the  Player

mode*)

previous station

*

(pressed short in the Tuner mode)

f

EQ+/-:  equalizer  mode  selection  button  (in  the  Player

mode only)

g

0-9: numeric pad

h

REPEAT: player operation mode selection

i

 FM

: enter the Tuner mode

j

AUX: AUX input selection button

k

: Play/Pause (in the Player mode)

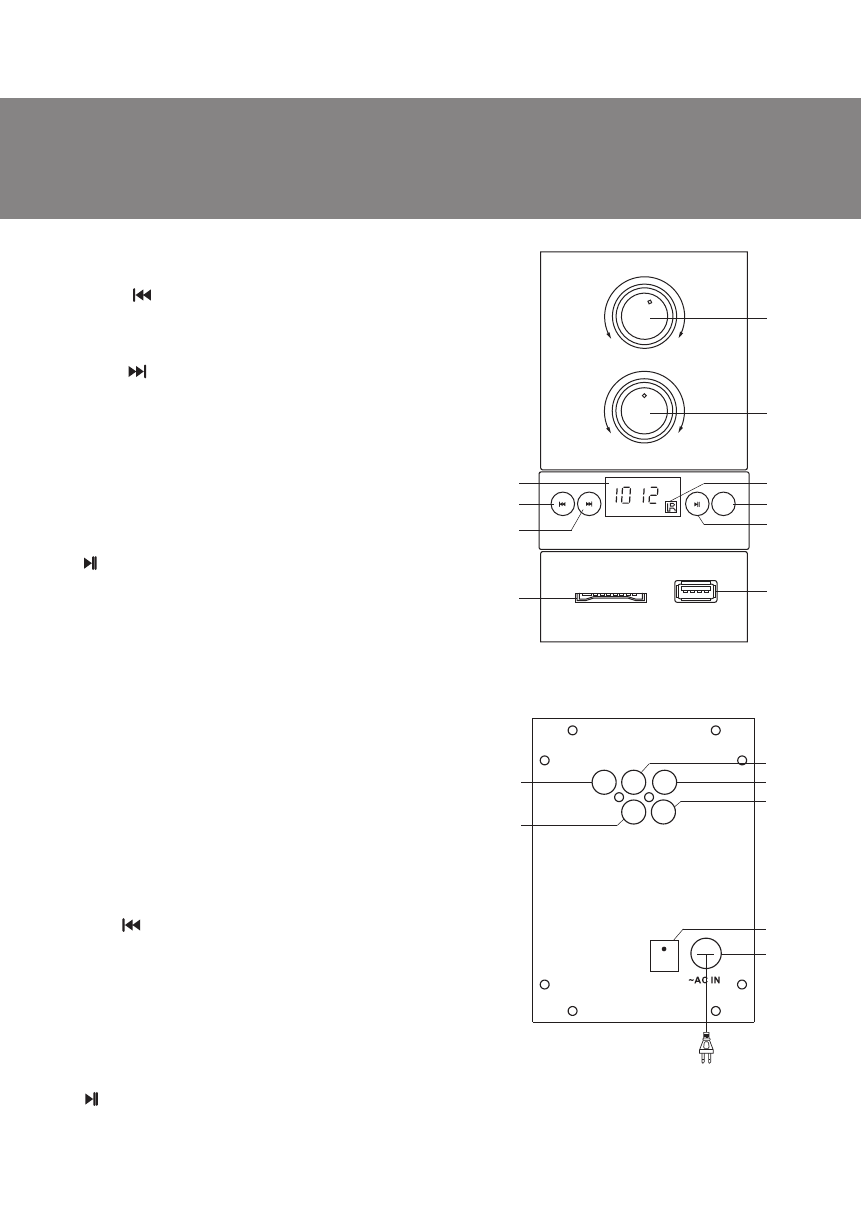

Fig. 2. Subwoofer rear panel

i

VOL–

SD/MMC

CARD

USB

VOL+

BASS

MODE

+

–

TREBLE

+

–

Fig. 1. Subwoofer front panel

e

f

h

b
c

d

a

g

j

n

o

q

p

m

k

l

OFF

ON

 FM
ANT

A UX

R

L

INPUT OUTPUT
