9

3.4. Installation Of Inner Duct Mounting Bracket
2  fixing  holes  are  drilled  on  the  wall  with  Ø  6  mm  electric  drill  at  a

suitable height and place to fix the inner duct hanger plate onto the wall.

6mm drywall anchors are nailed into those holes and inner duct mounting

brackrets are pinned down.At the last step of chimney hood installation,

the inner duct is screwed on the inner duct mounting brackets.

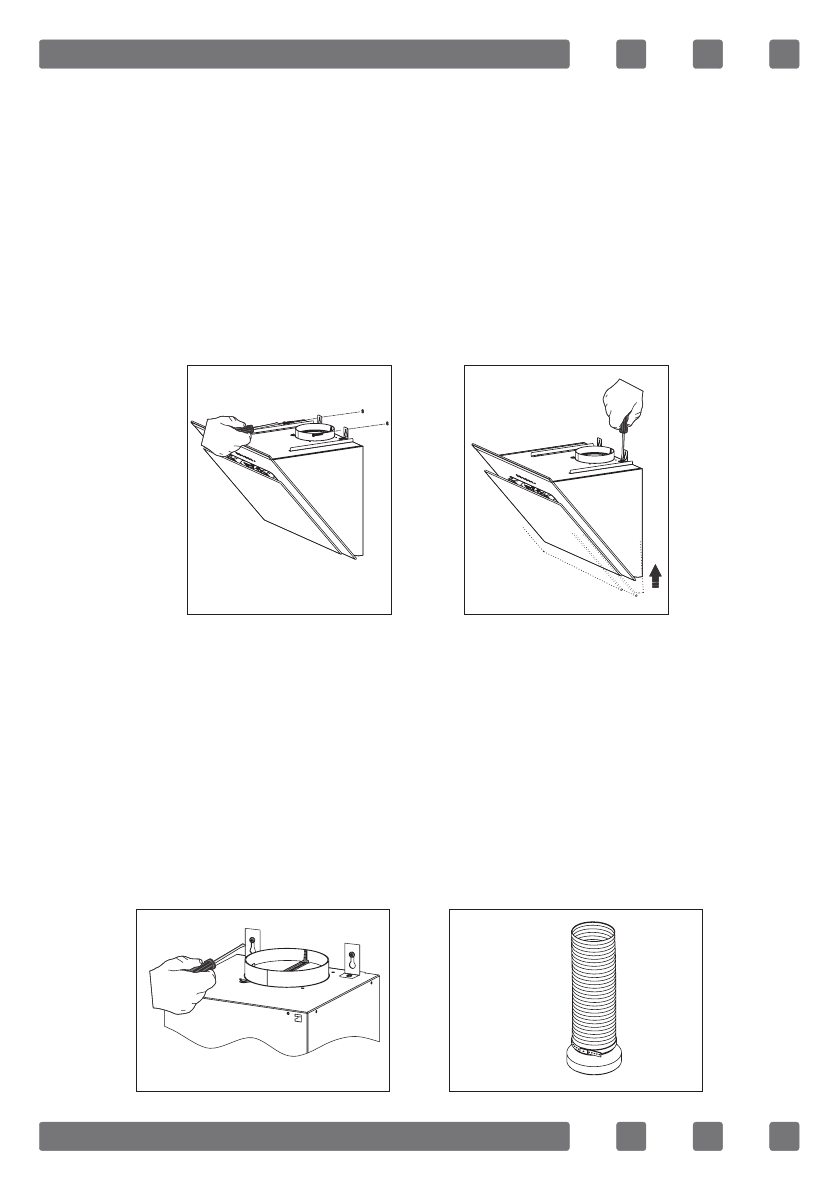

4. MOUNTING THE CHIMNEY HOOD ON THE WALL
Lift  the  chimney  hood  body  and  fix  the  hanger  plates  onto  the  wall

anchors as shown in

Figure 3

.

4.1. Leveling The Chimney Hood

If the chimney hood is inclined on one side, the chimney hood

can be leveled with the adjustment screws as shown in

 Figure 4.

Once the balancing is complete, the screws shown in

Figure 5

 must be

fixed tightly. After this, fix the body with one screw through the hole on

the body.

4.2. Mounting The Aluminum Pipe
Place the aluminum pipe on the plastic duct. Place the other end of the

pipe into the air outlet in the kitchen. (

Figure 6)

Figure 4

Figure 3

Figure 5

Figure 6
