6. OPERATING THE CHIMNEY HOOD

Chimney hood is used in ducted and non-ducted kitchens.

6.1. In Ducted Use
In  ducted  use,  extractor  fan  should  be  connected  to  an  air  outlet  to

send the air out. In order to use your chimney hood efficiently, make sure

length of the pipe system between the chimney hood and the air outlet

should be short. Your product has been manufactured suitable for ducted

and non-ducted use.

6.2. Round Charcoal Filter

In kitchens with no duct, a round charcoal filter should be reintroduced

the clean air into the kitchen. You can obtain the round filter from your

service or dealer.

6.3. Use Of Charcoal Filter

•

Our products allow the installation of charcoal filter.

•

Regardless of use of charcoal filters or not, grease filters should be

installed on the product. Do not use your product without grease

filter.

•

Use of charcoal filteris as follows.

•

Cut off the device power before replacing charcoal filter.

•

Charcoal filter is used in the kitchens with no duct therefore should

be replaced in every 3-5 months depending on the frequency of use.

•

Charcoal filter should never be washed.

6.4. Installation Of Charcoal Filter

•

Charcoal filters are used in the kitchens with no duct.

•

Charcoal filters are installed onto both sides of the fan as shown in

Figure 10

 by turning 10 degrees clock-wise.

•  When uninstalling, reverse the same procedure.

6.5. Use Of Aluminum Cartridge Filter
Aluminum  cartridge  filter  holds  dust  and  grease  in  the  air.  Chimney

hoodshould never be used without aluminum cartridge filter.

 (Figure 11)

Installing Position

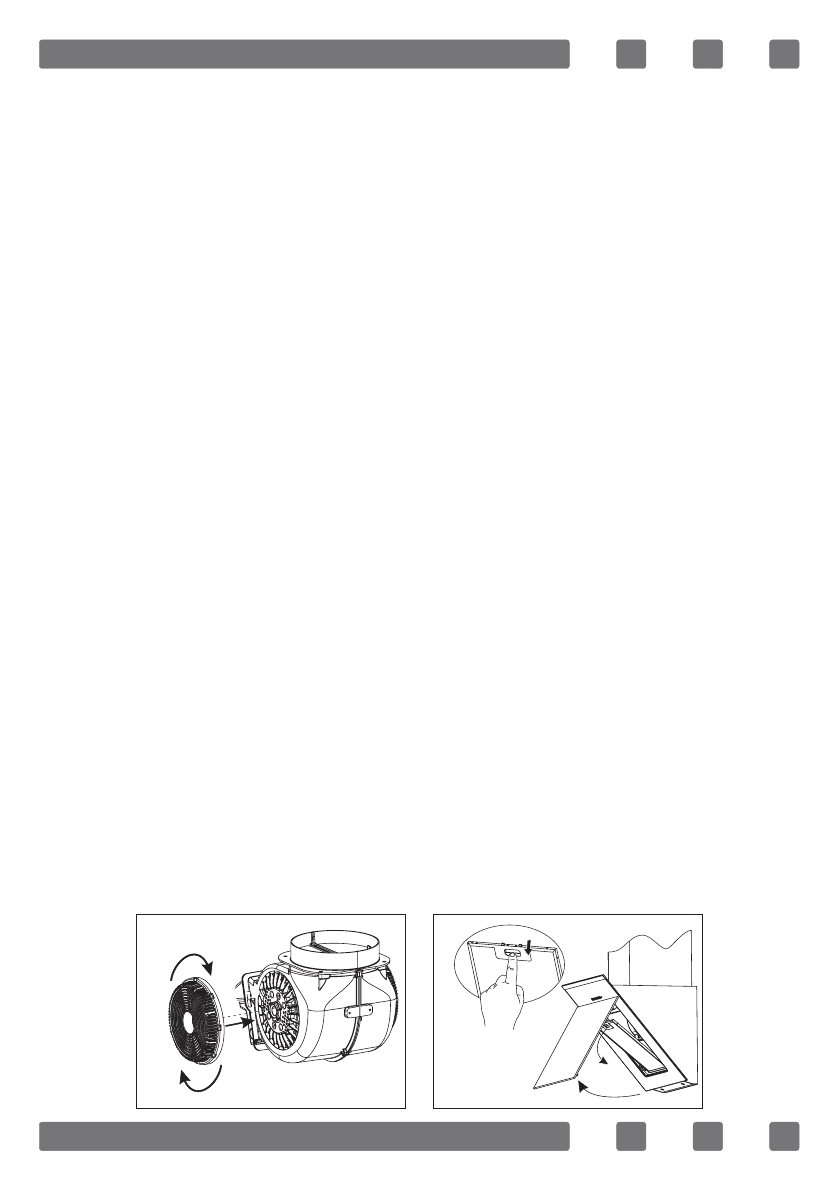

Figure 10

Figure 11
