Cooker hood

TECHNICAL PASSPORT

is damaged, request a new one from

Technical Service.

MOUNTING

Very heavy product; hood handling

and installation must be carried out by

at least two persons.

Before beginning installation:

• Check that the product purchased

is of a suitable size for the chosen in-

stallation area.

•  Remove  the  charcoal  (*)  filter/s  if

supplied (see also relative paragraph).

This/these is/are to be mounted only if

you want lo use the hood in the filtering

version.

• Check (for transport reasons) that

there is no other supplied material in-

side the hood (e.g. packets with screws

(*), guarantees (*), etc.), eventually re-

moving them and keeping them.

• If possible, disconnect and move

freestanding or slide-in range from cab-

inet opening to provide easier access to

rear wall/ceiling. Otherwise put a thick,

protective covering over countertop,

cooktop or range to protect from dam-

age and debris. Select a flat surface for

assembling the unit. Cover that surface

with a protective covering and place all

canopy hood parts and hardware in it.

• In addition check whether near the

installation area of the hood (in the area

accessible also with the hood mounted)

an electric socket is available and it is

possible to connect a fumes discharge de-

vice to the outside (only suction version).

• Carry out all the masonry work

necessary (e.g. installation of an electric
socket and/or a hole for the passage of
the discharge tube).

Expansion wall plugs are provided to

secure the hood to most types of walls/

ceilings. However, a qualified technician

must verify suitability of the materials in

accordance with the type of wall/ceiling.

The wall/ceiling must be strong enough

to take the weight of the hood. Do not

tile, grout or silicone this appliance to

the wall. Surface mounting only.

Using

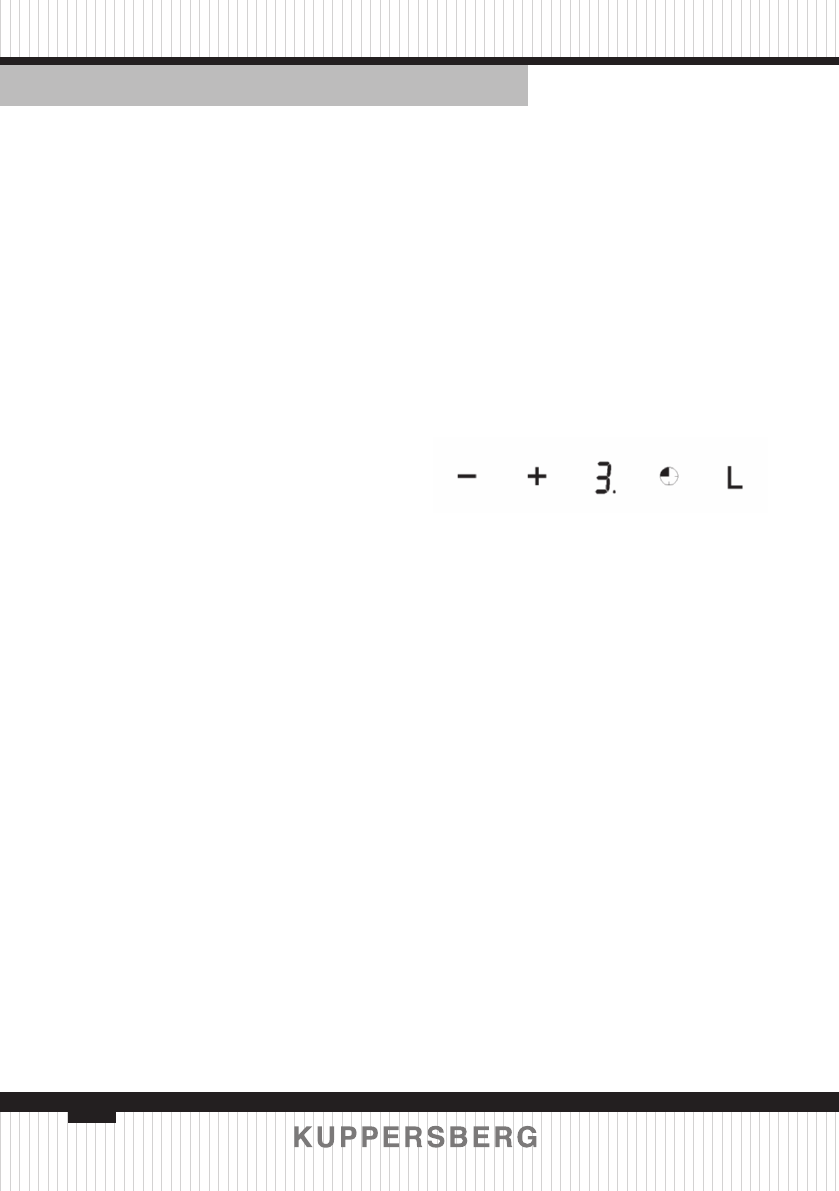

The hood can be operated by using

the control panel (see drawing)

To select the functions of the hood,

simply touch the controls.

The control panel consists of:

“-” ‘+’ – motor on/off; speed plus,

speed minus

“1” – first speed of the motor,

“2” – second speed of the motor,

“3” – third speed of the motor,

“clock” – timer function, allows you

to program the fan off time

“Lamp” – light on/off.

MAINTENANCE

Â

Attention!

 Before performing

any maintenance operation, isolate

the hood from the electrical supply by

switching off at the connector and re-

moving the connector fuse.

Or if the appliance has been con-

nected through a plug and socket, then

the plug must be removed from the

socket.
