Note:

 The 4th suction speed (power) stays on for 5 minutes,

after which the suction motor will position itself on the 2nd

speed.
If pressed again, the suction motor will switch off (stand-by).


Grease filters need cleaning:

 FLASHING GREEN LED light

(read instructions found under “Reset and configuration for
filter saturation signal”)

Coal filters must be cleaned or replaced:

 FLASHING

ORANGE (amber) LED light (read instructions found under
“Reset and configuration for filter saturation signal”)

Note:

 The reset procedure may be activated by both the

control panel and the remote control.


Center light check

The center light may be switched on and off by pressing the

T2

 button on the control panel.

Side light check (when scheduled)

The side lights may be switched on and off by pressing AND
HOLDING DOWN the

T2

button on the control panel.

HOLDING DOWN the button, besides permitting to switch the
hood on and off, it also regulates the light intensity given from
the lights.

Note:

 The switching on and off functions (and regulating

function) alternate.
The regulation of the light intensity is not available for hoods
with neon lights.


Reset and configuration for filter saturation signal

Switch on hood to any speed (see above paragraph “Suction
speed (power) selection”)


Reset grease filter saturation signal (FLASHING GREEN
LIGHT on control panel)
First proceed with filter maintenance as described in
corresponding paragraph.

Press and hold down (for more than 3 seconds) the

T1

button

on the control panel, the LED light will stop flashing indicating
that the signal reset has been carried out, the hood will switch
off.


Reset coal filter saturation signal (FLASHING ORANGE
(amber) LED light)
First proceed with filter maintenance as described in
corresponding paragraph.

Press and hold down (for more than 3 seconds) the

T1

button

on the control panel, the LED light will stop flashing indicating
that the signal reset has been carried out, the hood will switch
off.


Coal filter saturation signal disactivaction (for particular
applications)

Switch off hood (see above paragraph “suction speed (power)
selection”).
Press and hold down (for more than 5 seconds) the

T1

button

on the control panel, the LED light will start flashing GREEN

indicating that the coal filter saturation signal has been
disactivated.
In order to reactivate the coal filter saturation signal, repeat
operation, the LED light will flash ORANGE (amber)

Command panel disassembly.

Remove equipment from electrical grid.
Remove grease filter.
Disconnect connectors.
Extract command panel by lifting it with a small screwdriver or
similar tool.

Fig. 23

Using the remote control

The remote control is able to control all the functions of the
hood:

Select the suction speed (power)

Control the central light

Control the lateral lights

  Reset e configure the saturation of the filters signal

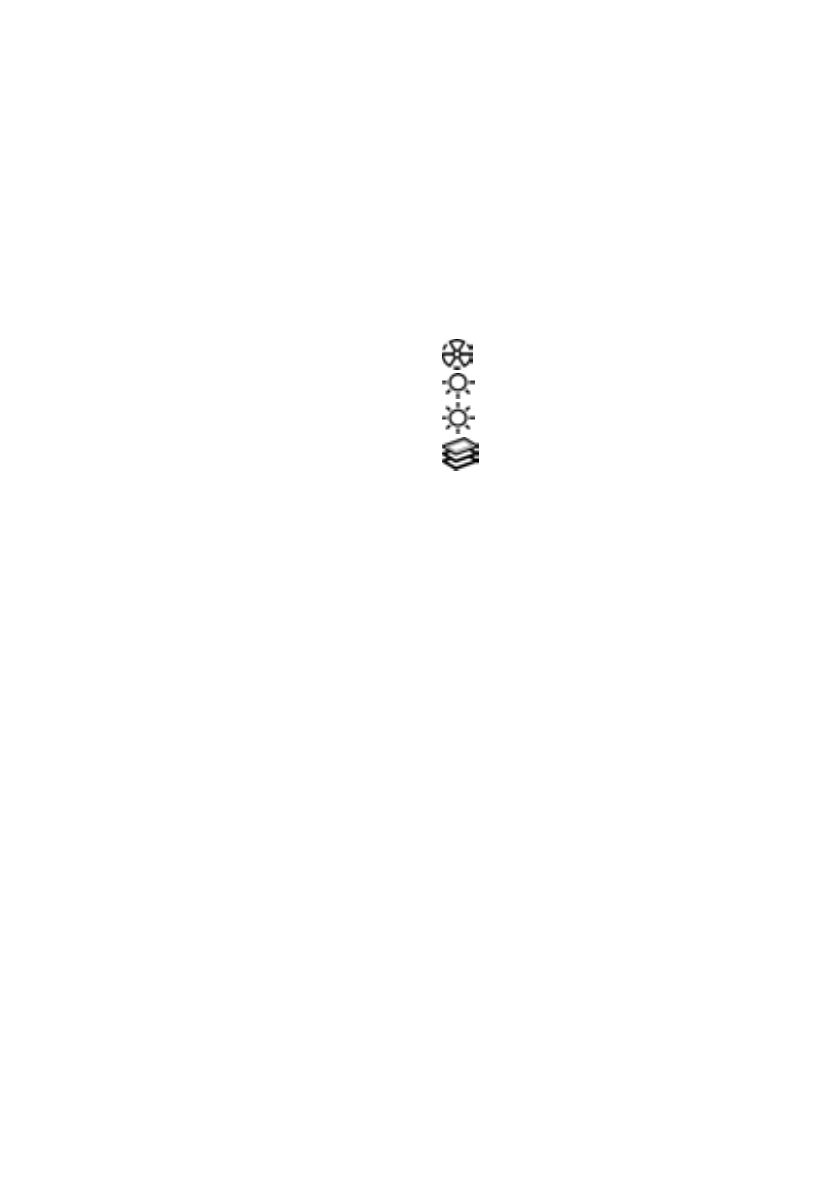

Selecting the suction speed (power):

Press the "

◄

" key or the "

►

" key until you see the symbol

relating to the “Select the suction speed (power)” function.
Press the “+” key or the “-” key or the "

■

" key respectively to

increase or diminish or switch off (stand-by) the speed
(suction power).


Controlling the central light:

Press the "

◄

" key or the "

►

" key until seeing the symbol

relating to the “Controlling the central light” function on the
remote control.
The central light can be switched on and off in two ways:

1.

  Press the “+” key or the “-” key respectively to switch the

central light (ON) or (OFF).

2.

  Press the "

■

" key to change the state of the light from

(OFF) to (ON) or vice versa.

Controlling the lateral lights:

Press the "

◄

" key or the "

►

" key until seeing the symbol

relating to the “Controlling the lateral lights” function on the
remote control.
Press the "

■

" key to change the state of the lateral lights from

(OFF) to (ON) at maximum intensity and viceversa.
Press the “-” key to diminish the intensity of the lateral lights
until switching them off.
Press the  “+” key to increase the intensity of the lateral lights.


Resetting and configuring the saturation of the filters
signal

Switch the hood on at any speed (see paragraph above
“Selecting the suction speed (power”).
Press the "

◄

" key or the "

►

" key until seeing the symbol

relating to the “Resetting and configuration of the saturation of
the filters signal” function on the remote control.
