  Electrical connection

The mains power supply must correspond to the rating
indicated on the plate situated inside the hood. If provided with
a plug connect the hood to a socket in compliance with current
regulations and positioned in an accessible area, after
installation. If it not fitted with a plug (direct mains connection)
or if the plug is not located in an accessible area, after
installation,  apply a double pole switch in accordance with
standards which assures the complete disconnection of the
mains under conditions relating to over-current category III, in
accordance with installation instructions.

Warning!

 Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that
the mains cable is correctly assembled.

Warning!

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified
persons in order to avoid hazard.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with

screws (*), guarantees (*), etc.), eventually removing
them and keeping them.




In the case of the presence of panels and/or walls and/or
lateral wall units check that there is sufficient space to install
the hood and that access to the command panel is easy.

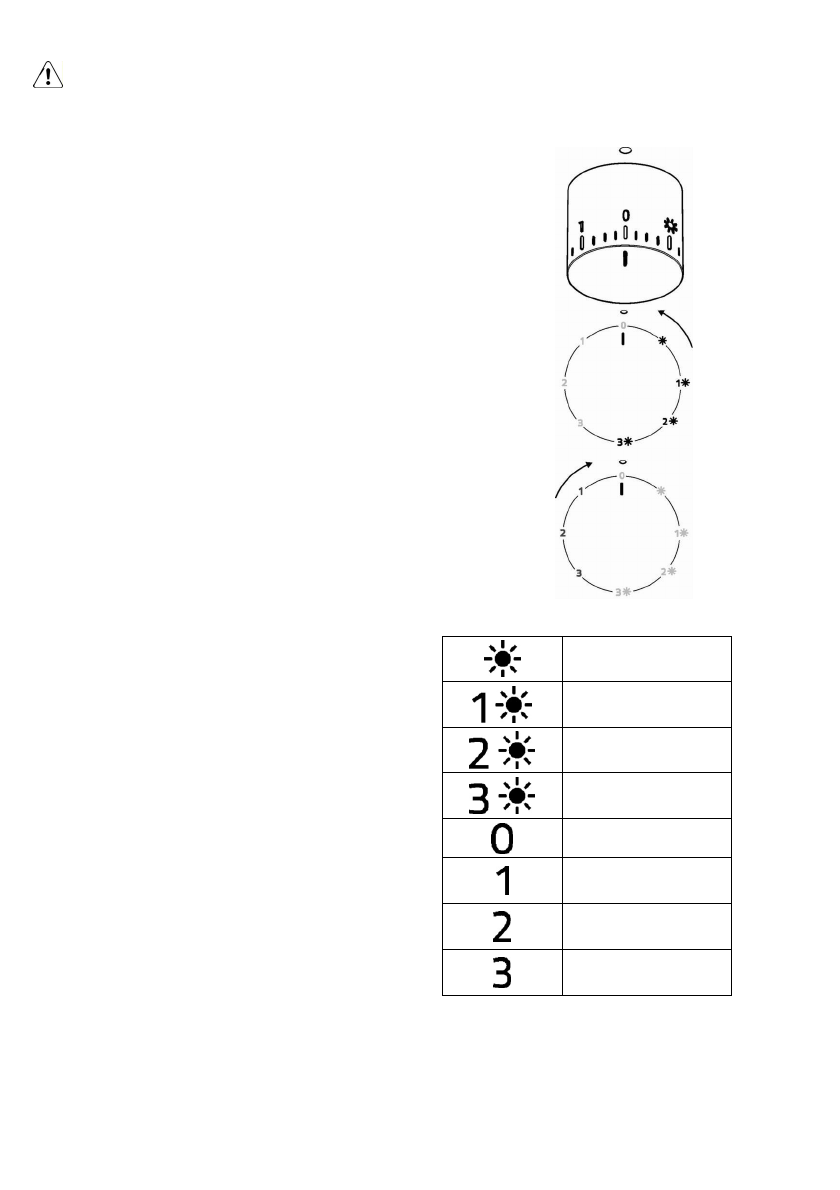

Operation

 Always fully open the

vapour catcher (A)

.

Fig. 10


Light ON

Speed 1
Light ON

Speed 2
Light ON

Speed 3
Light ON

OFF

Speed 1
Light OFF

Speed 2
Light OFF

Speed 3
Light OFF
