Operation

The hood is equipped with a

“TOUCH”

 device to control the

lights and speed.
For the correct use please carefully read the intructions below.


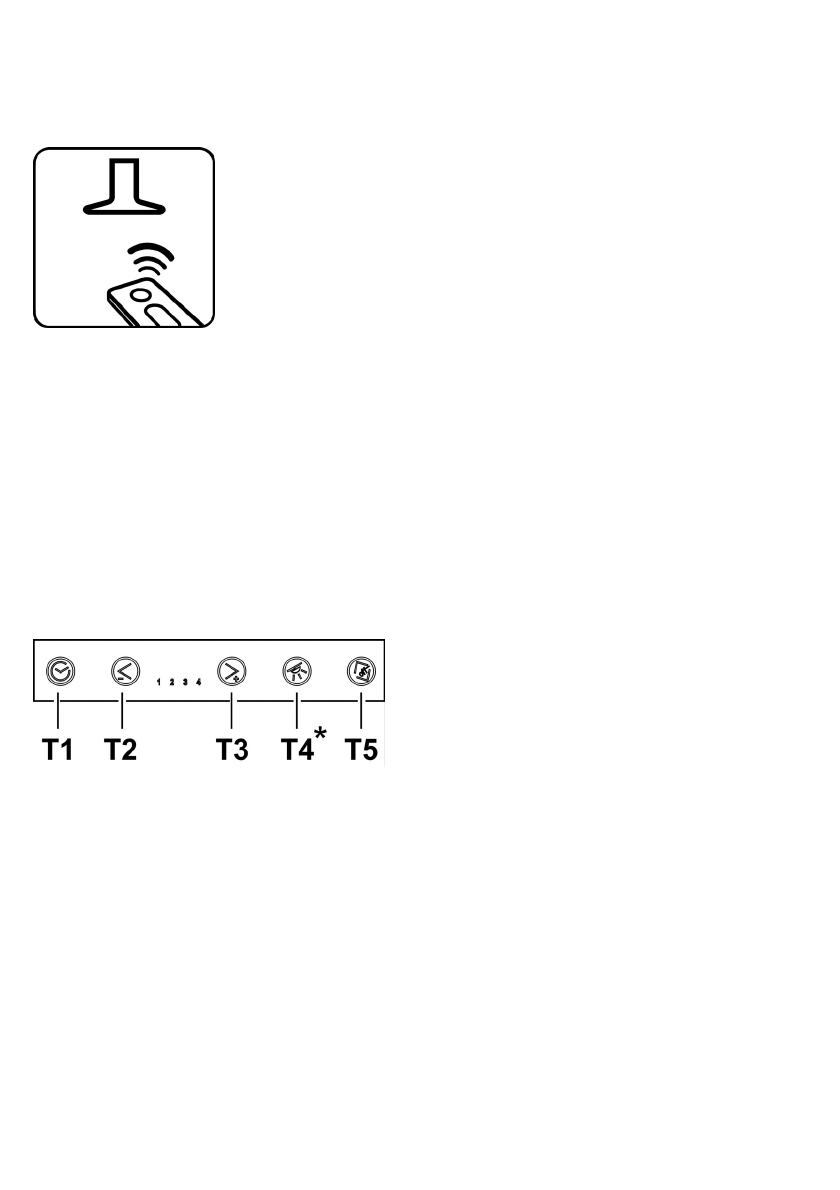

This product is designed to work with an Elica remote control,
either supplied with the product or purchased separately as an
optional.

To control the hood via remote control, the affiliation
procedure must be carried out.


CAUTION!

To begin, the hood must be disconnected and then
reconnected to the power supply and the affiliation procedure
must be carried out within the first minute of connection to the
power.

Read the instructions supplied with the remote control, which
provide detailed instructions on affiliation and correct use.


• Key

T1

: delays hood switching off timing the speed set

for some minutes.

By such function, when the timing is elapsed, the hood
switches off.

The timing is divided as follows:

•  suction speed (power) 1:

20 minutes

•  suction speed (power) 2:

15 minutes

•  suction speed (power) 3:

10 minutes

•  suction speed (power) 4:

5 minutes

PLEASE NOTE:

When operating the timer, the hood

might switch to a lower intake speed (power) before
turning off, as on some speeds there is already a timing
on the speed reduction itself.

 When

keys

T2

 and

T3

 are pressed, the hood leaves the

timed function and the suction speed (power) increases
or decreases according to the key pressed. During the
timing phase the LED related to the corresponding speed
flashes.

• Key

T2:

Decreases the active suction speed (power)

(

4

→

3

→

2

→

1

→

OFF

).

The speed is displayed through the LED related to the
corresponding speed.

 Key

T2

 has no effect on the opening/closure of the

suction panel.

• Key

T3:

Increases the active suction speed (power)

(

1

→

2

→

3

→

4

).

The speed is displayed through the LED related to the
corresponding speed.

Note: (only for models fitted with a motor or a remote
GME 22):

Suction speed 4 (power) is timed for 6 minutes, after
which the hood will automatically switch to suction speed
3 (power).

Note:

 (

only for remote GME 88):

Suction speed 3 (power) is timed for 7 minutes, after
which the hood will automatically switch to suction speed
2 (power).

Suction speed 4 (power) is timed for 6 minutes, after
which the hood will automatically switch to suction speed

2 (power).

Note:

 If the panel is closed (hood is off) key

T3

 activates

the opening of the suction panel first and then sets the
hood to the suction speed (power)

1

.

• Key

T4*

: Switches on the light

 Note:

 If the suction panel is closed (hood is off) key

T4

activates the opening of the suction panel first and then
switches on the light.

• Key

T5:

 Opens (Lifts) and closes (lowers) the suction

panel.

With the hood switched off and the panel closed, key

T5

opens the suction panel first and then sets the hood to
the suction speed (power)

1

.

With the hood switched on (at any speed) and the panel
open, key

T5

 switches off the hood first (and, if they are

on, it switches off the lights as well) and then closes the
suction panel.

*

Depending on the model available.

Additional operating information

During the removal of the front panel due to cleaning and
maintenance operations, all the electronic functions of suction
and movement are locked.
Anti-pinch safety: if an obstacle obstructs the closure of the
Downdraft, the closure is stopped and the trolley goes up.


Grease Filter saturation signal.

Every 40 hours of use the hood signals the need for
maintenance of the grease filter.
The signal is by making all the suction speed LEDs (powers)
flash contemporaneously.
Reset of the grease filter signal
After carrying out the maintenance of the grease filter, press
key T1 for more than 3" in order to reset the signal.
Note: The signal is not displayed with hood switched off
(OFF), regardless of the position of the suction panel.
