www.timberk.com • electrical storage water heater

6

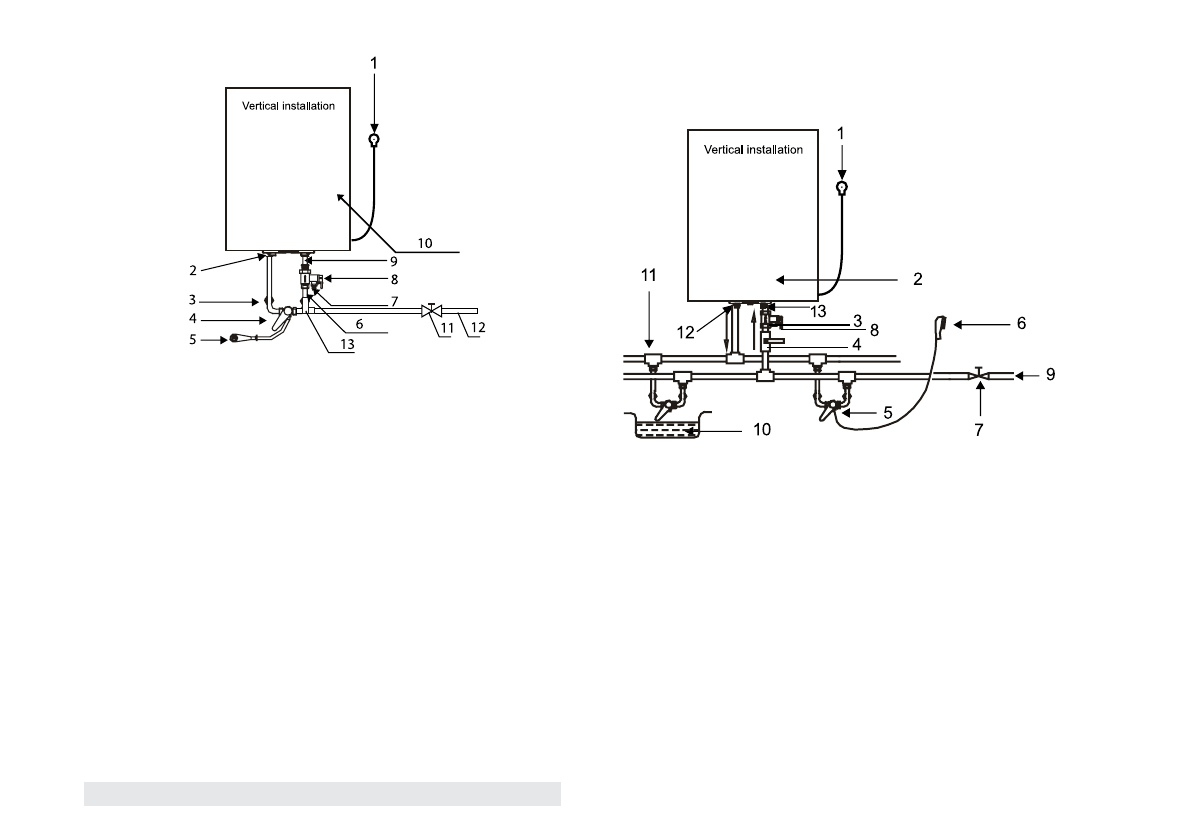

1. Power cord with a plug
2. Magnesium anode – water discharge nozzle
3. Water outlet
4. Hot water supply adjustment tap*
5. Mixer*
6. Shower header*
7. Cold water supply adjustment tap*
8. Pressure relieving opening
9. Check relief valve
10. Water inlet
11. Water heater
12. Water main shut-off valve*
13. Water main
14. T-bend*

*Does not included in the scope of delivery

Fig. 5

Water heater mounting methods

Fig. 6 shows the way to mount the water heater for several consumption

points  (for SWH RED3 ... V).

1. Power cord with a plug
2. Water heater
3. Check relief valve
4. Cold water supply valve*
5. Mixer*
6. Shower header*
7. Water main shut-off valve*
8. Pressure relieving opening
9. Water main
10. Bath tub*
11. T-bend*
12. Water outlet
13. Water inlet

Fig. 6
