www.timberk.com • electrical storage water heater

5

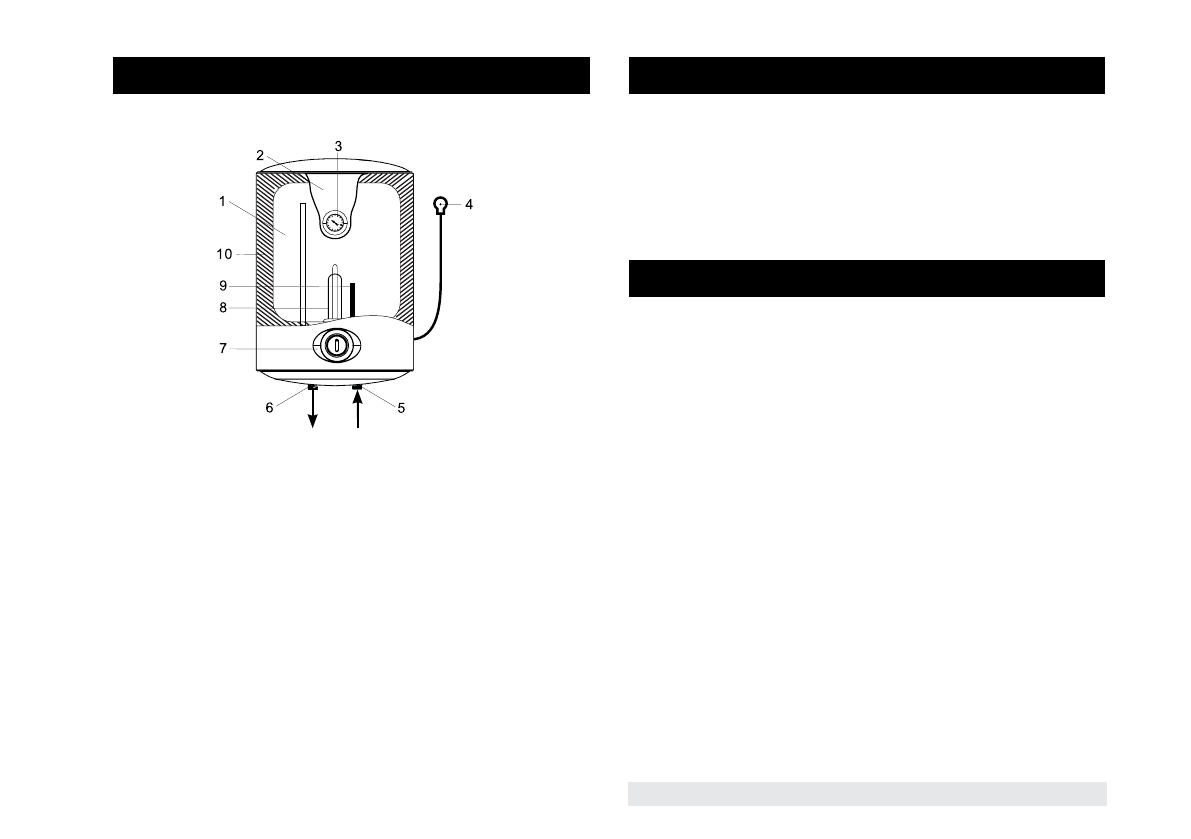

5. WATER HEATER DESCRIPTION

RED3…V

1. Internal tank
2. External case
3. Thermometer
4. Power cable
5. Hot water inlet nozzle
6. Hot water outlet nozzle
7. Control panel
8. Heating element
9. Protective magnesium anode
10. Heat insulation

Fig. 4

6.  SCOPE OF DELIVERY

7. WATER HEATER INSTALLATION

1. Water heater – 1 pc.
2. Anchor bolt – 2 pcs.
3. Pressure safety valve – 1 pc.
4. Operation manual – 1 pc.
5. Guarantee slip – 1 pc.
6. Package – 1 pc.

Location

1. Electric water heater should be mounted on a firm wall.
2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.
3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.

Water heater mounting methods

Fig. 5 shows the way to mount the water heater for one consumption point

(for SWH RED3 ... V).
