www.timberk.com • electrical storage water heater

9

1. The water heater is designed to be connected to 220V single-phase

electric main. Prior to connecting make sure that parameters of the electric

main in the place of connection correspond to parameters, specified on the

identification plate with technical parameters of the appliance. You should

follow the current electrical safety code when installing the water heater.
2. The power outlet must be properly grounded. The outlet must be

designed for rated current not less than 10A, electric cable with copper

core must have cross section not less than 3x1.5 mm

2

 (for copper).

The power outlet and plug must always be dry to prevent current leakage.

Regularly check if the power plug is tightly connected to the outlet. Do

it in the following order: insert the power plug into the outlet, switch off

the water heater after half-hour operation and unplug the cord, check if

the plug is heated by your hand. If the plug is heated over 50°C, then to

prevent damages, accidents and fire as a result of bad electrical contact,

replace the outlet with a new one. A specialist must do this.

1. At first, open one of the separable taps at the water heater outlet, then

open the inlet tap. The electric water heater will start filling with water.

When water flows from separable tap freely, it means the water heater is

fully filled with water and you can close the separable tap.

2. Plug the power cord into the outlet.

Connection to electric main

IMPORTANT!

If water in the installation location contains a large

amount of calcium, manganese or iron salts, then

necessary to mount a respective filter in the delivery

system to reduce the amount of scale generated in

the tank and on the heating element.

IMPORTANT!

Prior to connecting the tank water heater, make sure

that the water heater is properly grounded. Proper

grounding is important to minimize electric shocks

and risk of fire. The power cord is equipped with a plug

with a grounding pin. The appliance must be used

with a properly grounded power outlet. If the outlet,

you are intending to use, is not properly grounded or

grounded by a time-delay fuse or a circuit breaker,

contact a qualified electrician to install a proper outlet.

IMPORTANT!

To provide reliable operation and safe use of the

water heater, prior to the first run check if it is properly

connected to the 220V AC mains. The water heater to

be connected must be securely linked with the earth

circuit of your electric mains.  The waterheater must be

grounded properly, otherwise it is extremly dangerous

for life safety.

8. WATER HEATER OPERATION

NOTE:

During normal operation the cold water supply valve

must be opened.

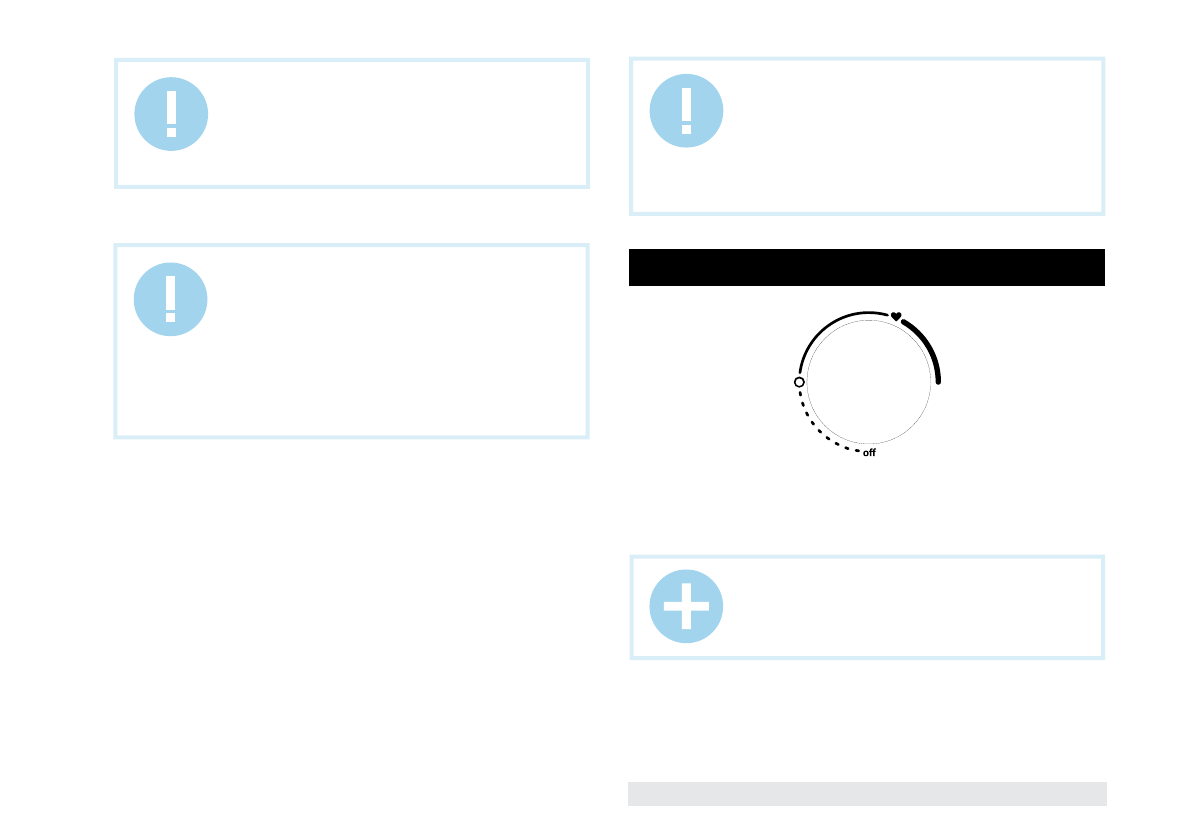

Fig.8
