5. WATER HEATER DESCRIPTION

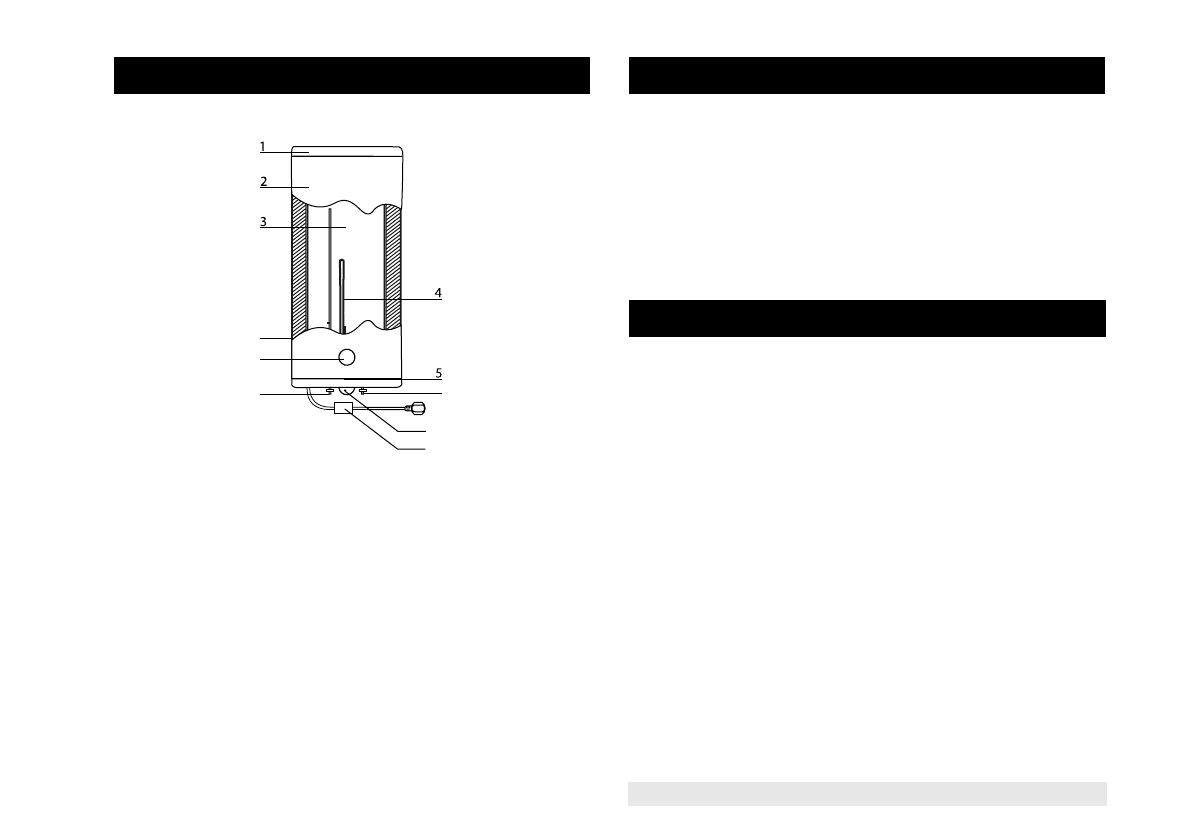

Fig. 2
1 – top composite protective cover
2 – external case
3 – inner tank
4 – heating element
5 – bottom composite protective cover
6 – urethane foam heat insulation layer
7 – inlet nozzle
8 – hot water outlet nozzle
9 – indicator lamp
10 – control panel
11 – GFCI

МE1 series (Fig. 2)

6.  SCOPE OF DELIVERY

1. Water heater – 1 pc.
2. Securing plate – 1 pc.**
3. Pressure safety valve – 1 pc.
4. Discharge pipe – 1 pc.
5. Operation manual – 1 pc.
6. Guarantee card – 1 pc.
7. Packing – 1 pc.

7. WATER HEATER INSTALLATION

Location
1. Electric water heater should be mounted on a firm wall.
2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.
3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.
