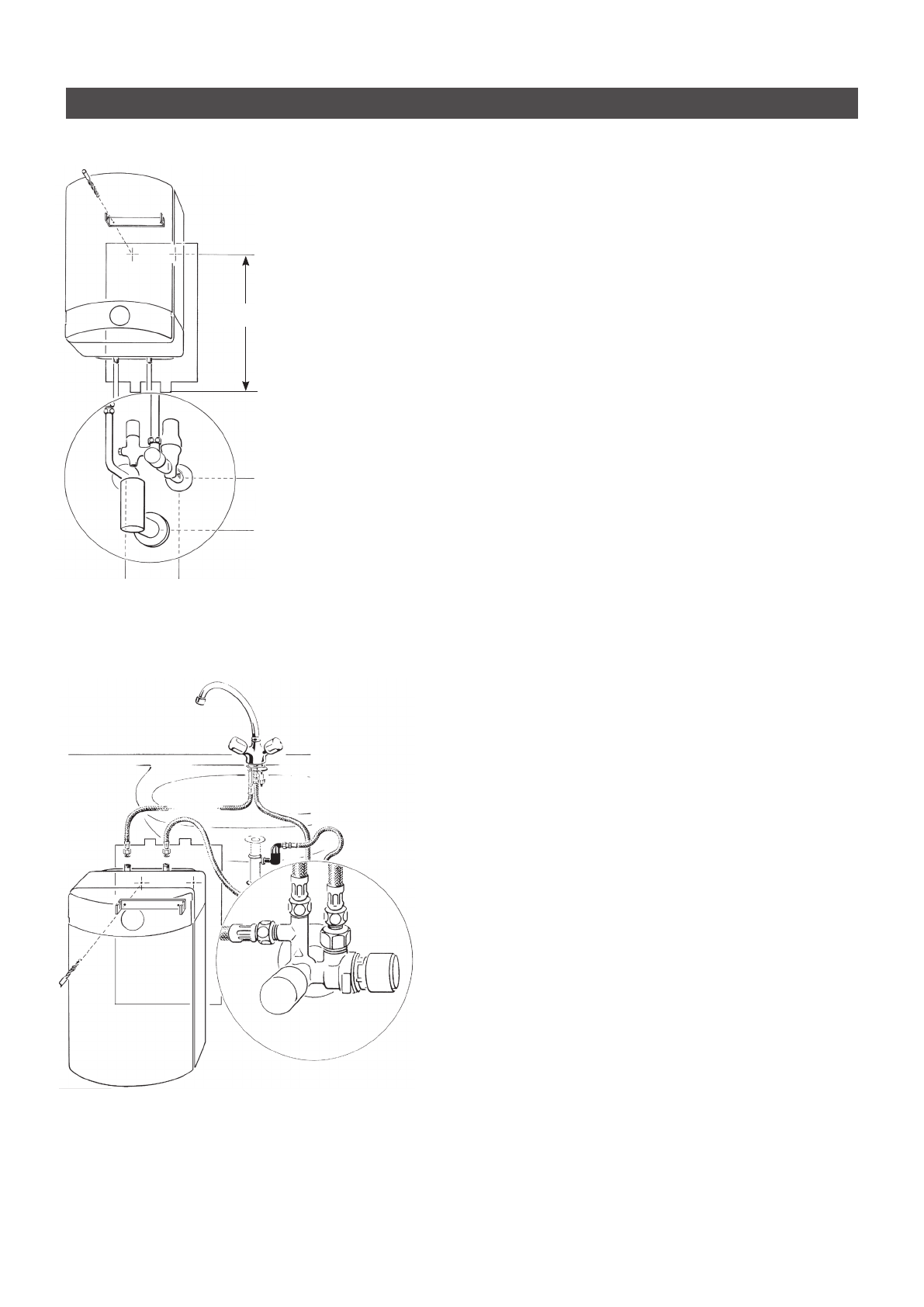

Oversink (S 10-O / S 15-O)

100 mm

6 mm

6 mm

100 mm

426 mm

6. Installation

Pressure-type installation (closed-outlet)

•  Suitable for one or more taps.
•  Any suitable mixing battery may be used, provided that it is approved for use with

water storage heaters.

•  A type-tested relief valve to DIN 1988 must be installed in the water supply line for

pressure-type installation.

•  Water due to expansion drips from the overflow valve as the water is heated. The

overflow must never be blocked.

•  The overflow valve of the pressure-relief device must be connected to a water drain-

age via a discharge pipe with continuous drop.

•  A one-way restrictor or shutoff valve must never be installed between the pressure-

type storage heater and diaphragm safety valve.

•  The water pressure at the cold water connection must not exceed 5 bar, otherwise a

pressure reducing valve must be installed. The water storage heater is subjected to
the full pressure of the water mains downstream of the connection.

•  For safety reasons, the appliance must be inspected by a professional at regular

intervals of not more than two years.

SGU, Art.-Nr. 4100-0013

SG, Art.-Nr. 4100-0011 for S 10-O,

SGM, Art.-Nr. 4100-0012 for S 15-O

Undersink (S 10-U / S 15-U)
