Instructions for the installer

33

4

POSITIONING OF THE HOB

The following operation requires building and/or carpentry work so must

be carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat
resistant (T 90°C).

4.1

Attachment to support structure

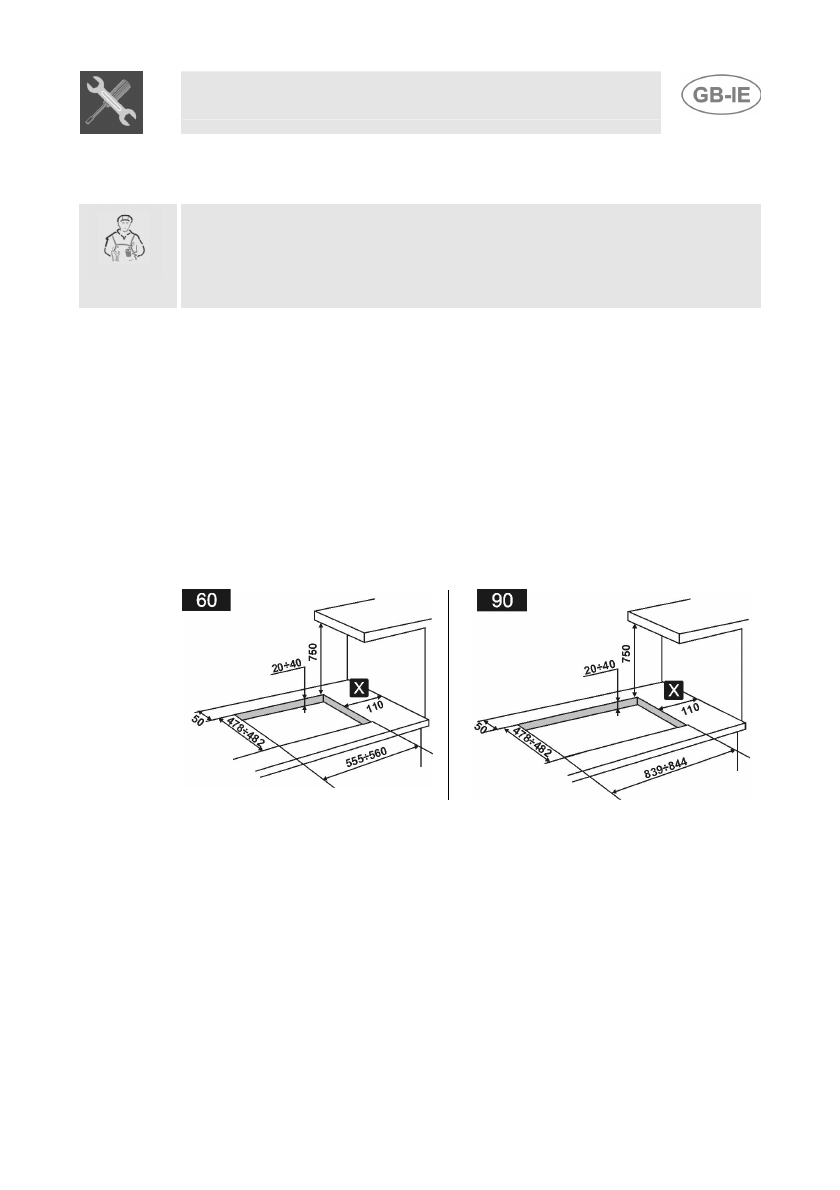

 Create an opening with the dimensions shown in the figure in the top

surface of the counter, keeping a minimum distance of

50 mm

 from the

rear border.
This appliance is classified as “type Y” in relation to fire hazards and
can therefore be mounted against walls higher than the work surface on
condition that a certain distance “X” be kept between the appliance and
the wall as shown in the figure so as to avoid damage from
overheating.
Make sure there is a minimum of

750 mm

 between the hot plate flames

and any shelf that may be installed directly above them.

 Carefully position the insulating seal supplied on the outer perimeter of

the hole made in the counter top as shown in

figure 4

 (the dimensions

in the figure refer from the hole to the inside of the seal), trying to
ensure that it sticks across the whole of its surface by applying light
pressure with your hands. Fix the hob to the unit using the appropriate
brackets

B

 and spacer

A

 as shown in figures

1

,

2

 and

3

. Spacer

A

 will

help to keep the hob top at the right distance from the edge of the
counter top to avoid future overheating during operation and must be
used

solely in the front left-hand corner of the appliance

. Carefully

trim the surplus away from edge

C

 beyond the seal (

Fig.5

).
