Electrical connection

Fit a plug suitable for the load on the power lead and connect it to a suitable safety
socket. If an appliance is not equipped with supply cable and plug, the power supply
must be fitted with a disconnect switch in which the distance between contacts permits
total disconnection in accordance with overvoltage category III, as required by installation
regulations.The switch must not break a contact in the yellow/green earth wire.
The brown live wire (connected to the "L" terminal of the terminal board) must always
be connected to the live wire of the power supply mains.
In all cases, the power supply lead must be positioned so that it does not reach a
temperature 50°C above the room temperature in any point.

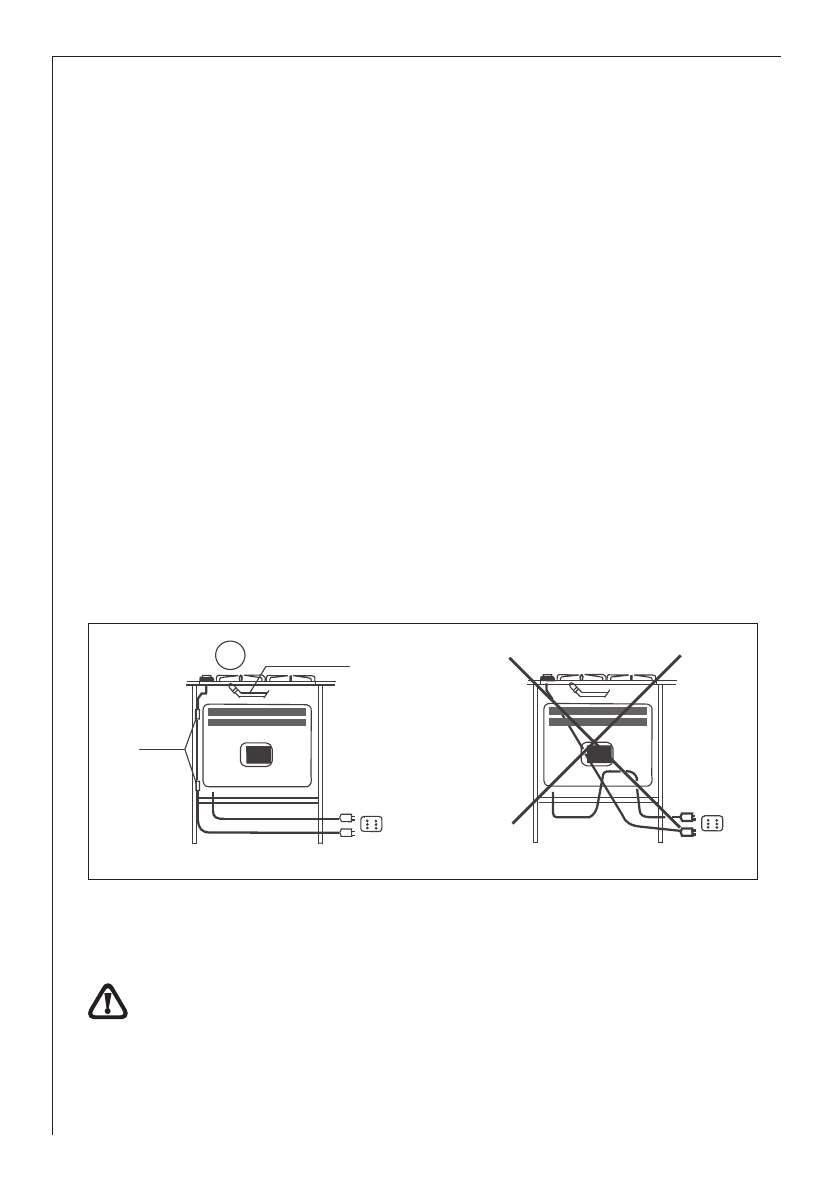

One example of an ideal route is shown in the illustration (fig. 4).
The cable is guided by means of band clamps fixed to the side of the cabinet, in order
to avoid any contact with the appliance underneath the hob.

Replacing the power supply lead

YES

COPPER PIPE OR
STAINLESS STEEL
HOSE

Service

opening in

cabinet

REAR VIEW

BAND CLAMPS

NO

REAR VIEW

The  appliance  is  prefitted  to  operate  with  a  power  supply  voltage  of 220/  230  V
singl-ephase.The connection must be made in accordance with the regulations and
laws in force.
Before making the connection, make sure that:
1) the safety circuit-breaker and the electrical system are able to withstand the load

of the appliance (see nameplate).

2) the  power  supply  system  has  an  earth  connection  in  good  working  order  in

accordance with the regulations in force;

3) the  socket  or  omnipolar  switch  used  are  easily  accessible  with  the  appliance

installed.

The power supply lead must be replaced by the manufacturer or its after-
sales service, or someone with similar qualifications, to prevent all risks.

Fig. 4
