Technical passporT

gas hob

6.3. eLeCtRICAL ConneCtIon

The electrical connections of the

appliance must be carried out in

compliance with the provisions and

standards in force.

Â

Before connecting the appliance,

check that the socket or system has an

efficient earth connection in compliance

with the provisions and standards in

force. The manufacturer declines all

responsibility for failing to comply with

these provisions.When the appliance is

connected to the electricity main by a

socket:

Â

Fit a standard plug suited to the

load indicated on the data label to the

cable.

Â

Fit  the  wires  following  figure  4,

taking care of respecting the following

correspondences:

Letter L (live) = brown wire;

Letter N (neutral)=blue wire;

Earth symbol

 = green - yellow

wire.

Â

The power supply cable must be

positioned so that no part of it is able to

reach an overtemperature of 65 °C.

Â

Never use reductions, adapters

of shunts for connection since these

could create false contacts and lead

to dangerous overheating. When the

appliance is connected straight to the
electricity main:

Â

Install an omnipolar circuit-

breaker between the appliance and the
electricity main. This circuit-breaker
should be sized according to the load
rating of the appliance and possess a
minimum 3 mm gap between its contacts.

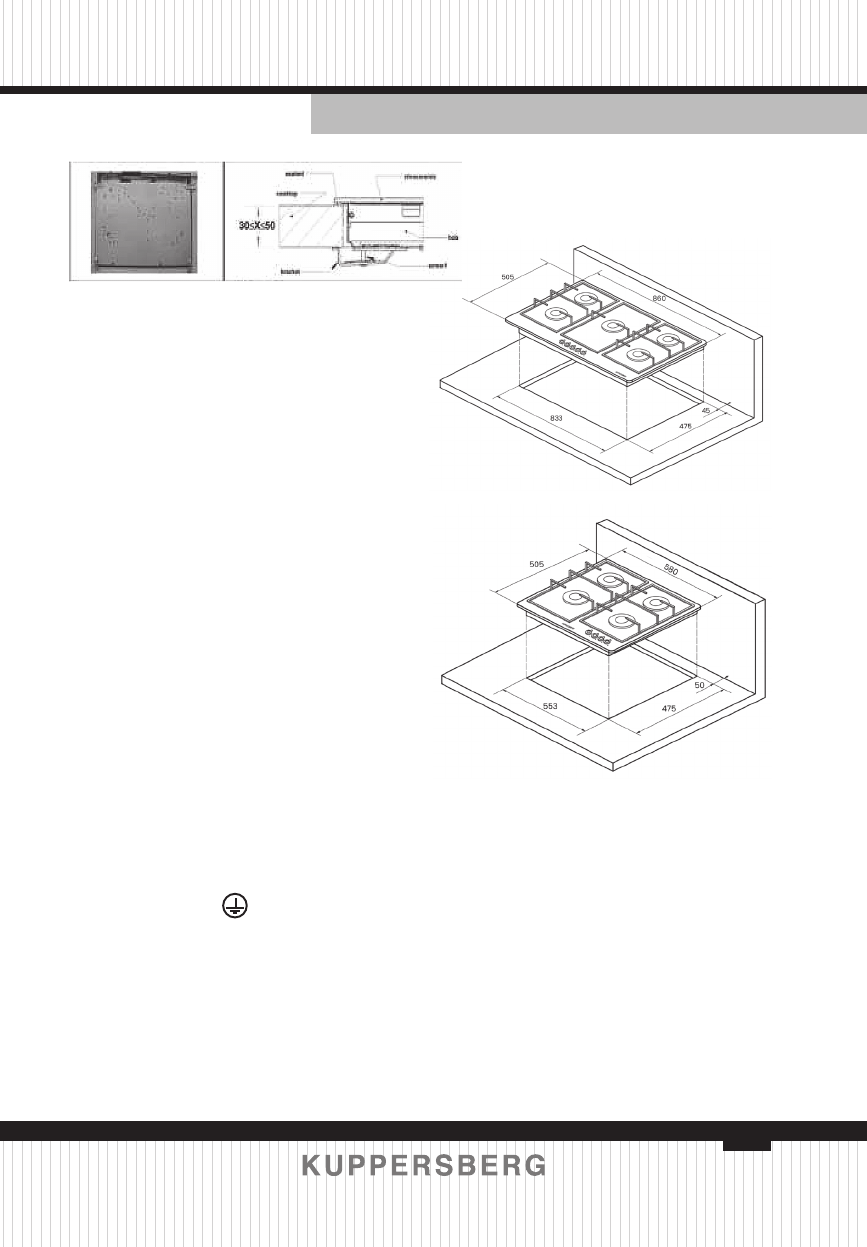

F I G.  1

F I G.  3

F V6TG RZ

F V9TG RZ
