8

Technical passporT

english

gas hob

used for installation should be proper,
and the counter should be resistant
against heat.

Read the following instructions
to fix the hob on the counter:

In order to prevent insertion of the

foreign materials and liquids between
the hob and the counter attache the
adhesive band on the counter hole
without allowing any overlapping
before the installation.

Place the hob on the counter hole

to center the installation hole.

Secure the unit on the counter by

using the installation sheet and screws.

Please review the following figures

carefully so that the hob will be
installed properly.

6.2. InstALLInG tHe
APPLIAnCe

Check that the appliance is in a

good condition after having removed
the outer packaging and internal
wrappings from around the various
loose parts.

In case of doubt, do not use the

appliance  and  contact  qualified
personnel.

Never leave the packaging materials

(cardboard, bags, polystyrene foam,
nails, etc.) within children’s reach since
they could become potential sources
of danger.

The measurements of the opening

made in the top of the modular cabinet

and into which the hot plate will be
installed are indicated in either (fig. 1.)

Always comply with the

measurements given for the hole into
which the appliance will be recessed.

The hot plate has a special seal

which prevents liquid from infiltrating
into the cabinet.Strictly comply with
the following instructions in order to
correctly apply this seal:

Â

Take off all the movable parts of

the hob.

Â

Cut the seal in 4 parts of the

necessary lenght to positionning it on
the 4 edges of the crystal.

Â

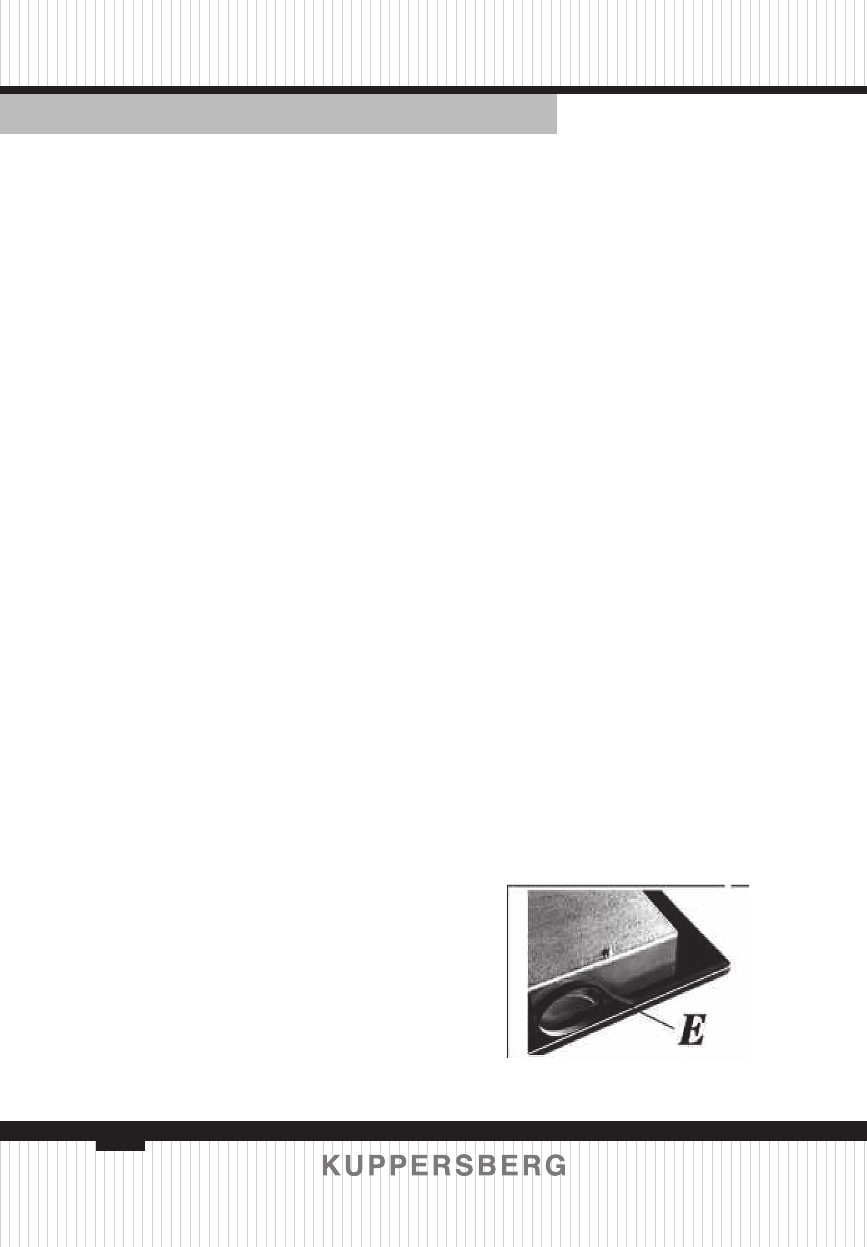

Overturn the hot plate and

correctly  position  seal  «E»  (fig.  2)
under the edge of the hob itself, so
that the outer side of the seal perfectly
matches the outer perimetral edge of
the hob. The ends of the strips must fit
together without overlapping.

Â

Evenly  and  securely  fix  the  seal

to the hob

Â

Fit the hot plate into the hole

in the cabinet and lock it in place with
the relative screws of the fixing hooks
(see fig 3 )

F I G.  2
