IMPORTANT

  -  To ensure a correct

operation, a savingof energy and the
long life of the appliance, the voltage
p re s s u re   o f   t h e   a p p l i a n c e   m u s t
correspond to the recommended values.
The adjustable connection is fixed to the
comprehensive ramp by means of a
threaded nut G 1/2". Interpose the
sealing between the components as
shown in Fig. 5. Screw the parts without
forcing, adjust the connection in the
required direction and tighten everything.

C o n n e c t i o n   u s i n g   f l e x i b l e
nonmetal pipes

When the connection can be easily
inspected in its full extent, there is the
chance to use a flexible pipe according
to the rules in force. The flexible pipe
m u s t   b e   t i g h t l y   f i x e d   u s i n g   c l a m p s
according to the rules in force.

Liquid gas:

use the rubber pipe holder

«

D

». Always insert the gasket «

B

». Then

proceed with the gas connection. The
flexible pipe should be made ready for
use in such a way that:
- nowhere it can reach overtemperature,

other than room temperature, higher
than 30°C; if the flexible pipe, to reach
the cock, must run behind the range,
it must be installed as shown in picture;

- it is no longer than 1500 mm;
- it shows no throttles;
- it is not subject to traction or torsion;
- it doesn't get in touch with cutting

edges or corners;

-it can be easily inspected in order to
check its condition.
The control of preservation of the flexible

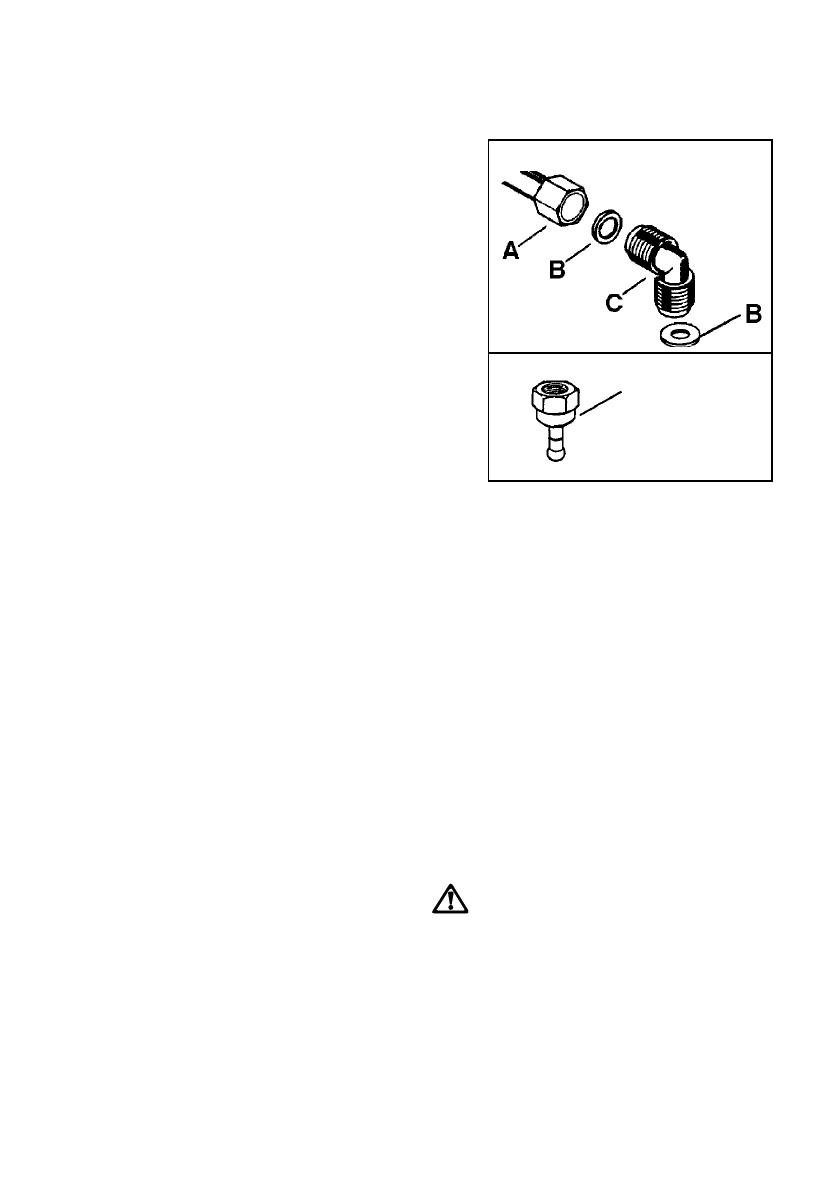

A)

Ramp with ending nut

B)

Seal

C)

 Adjustable connection

D)

 Rubber pipe holder for liquid gas

D

Natural gas

Liquid gas

pipe consistsin checking that:
- it doesn't show cracks, cuts, marks

of burnings bothon the end parts and
on its full extent;

- the material is not hardened, but

shows its normal elasticity;

- the fastening clamps are not rusted;
- expiry term is not due.
If one or more abnormalities are seen,
do not repair the pipe, but replace it.

IMPORTANT

Once installation is complete,
check the perfectseal of every
p i p e   f i t t i n g ,   u s i n g   a   s o a p y
solution, never a flame.
