1. Air humidifier – 1
2. User’s manual - 1
З. Guarantee slip - 1
4. Package - 1
5. Cleaning brush - 1

5. LIST OF PARTS

6. FILLING OF TANK WITH WATER

1. Steam outflow intensity indicators
2. Current temperature indicator
3. No water indicator
4. Operation mode indicators
5. Current humidity level indicator
6. Power indicator
7. Operation mode selection button
8. On/Off button

Other indicators may show up on the display, it depends on the unit’s

serial number. All indicators correspond to some or other operation mode

(depending on user presets).

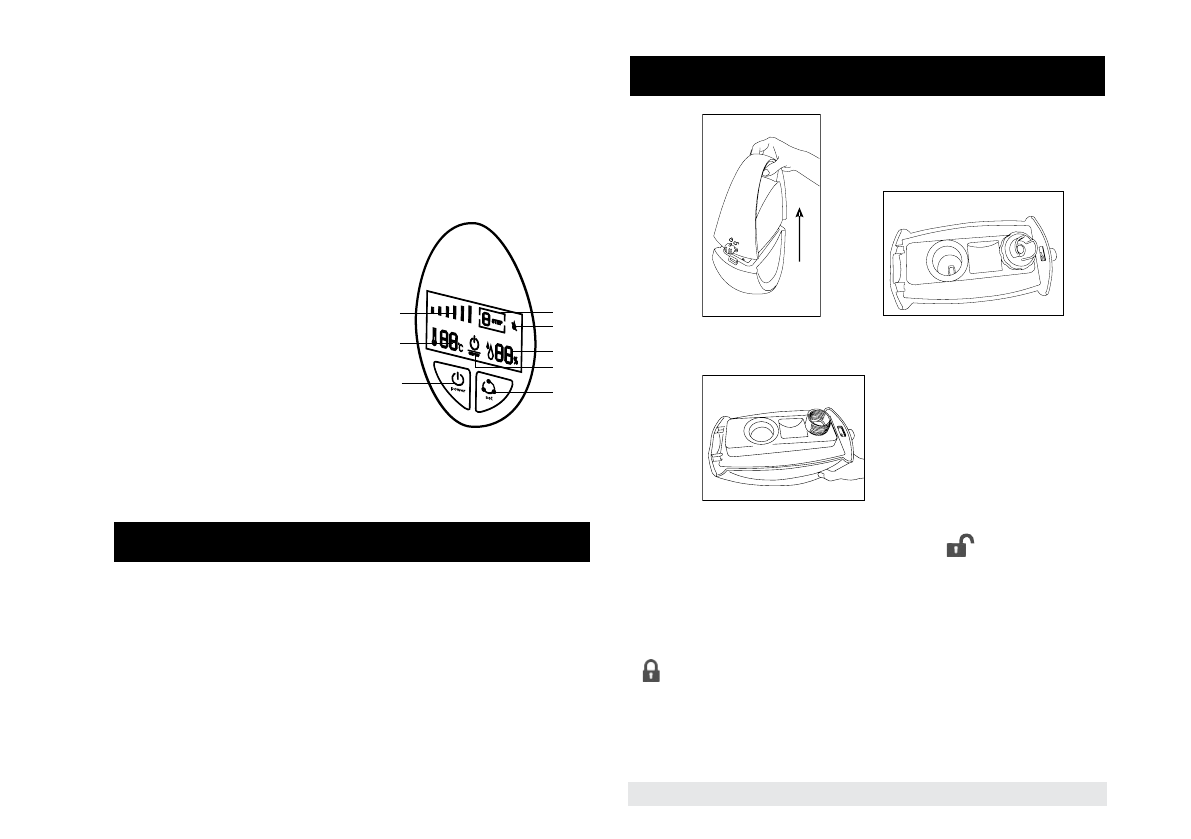

1. Turn the water tank lock lever to position «        », holding the unit

vertically (Fig. 4-1).
2. Unscrew the tank’s cover counterclockwise (Fig. 4-2).
3. Fill the tank with water (Fig. 4-3).
4. Screw the tank’s cover tightly clockwise. Make sure it is tightly locked.
5. Install the tank into the unit and turn the tank lock lever to position

«        ».

Fig. 4-1

Fig. 4-3

Fig. 4-2

10. Base of the unit
11. Gasket of the unit’s base
12. Air vent
13. Ultrasonic membrane
14. Water level sensor float
15. Water tank (lower part)
16. Cover with the water tank valve
17. Water filler hole

1

2

8

3

4

5
6

7

Fig. 3
