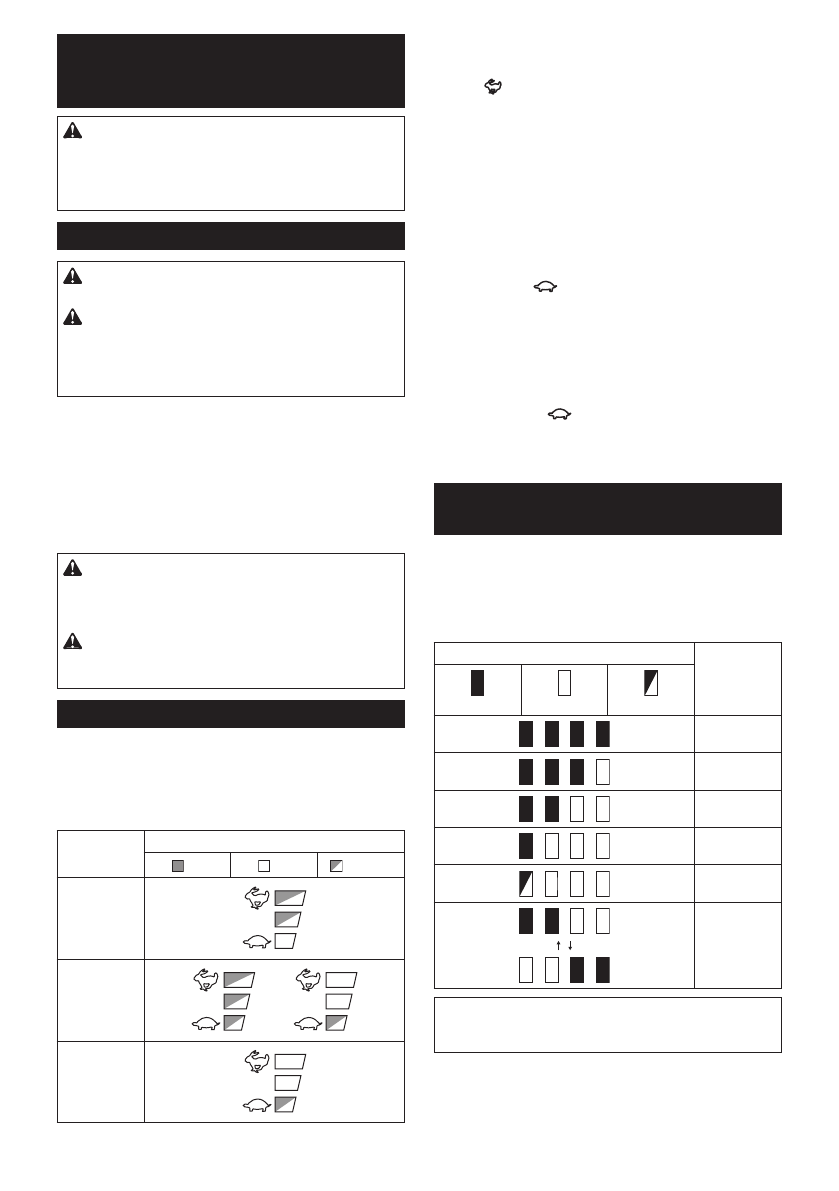

12 ENGLISH

FUNCTIONAL

DESCRIPTION

WARNING:

Always be sure that the tool is

switched off and the battery cartridge is removed

before adjusting or checking function on the tool.

Failure to switch off and remove the battery cartridge may

result in serious personal injury from accidental start-up.

Installing or removing battery cartridge

CAUTION:

Always switch off the tool before

installing or removing of the battery cartridge.

CAUTION:

Hold the tool and the battery cartridge

firmly when installing or removing battery cartridge.

Failure to hold the tool and the battery cartridge firmly may

cause them to slip off your hands and result in damage to

the tool and battery cartridge and a personal injury.

►

Fig.5:

1.

 Red indicator

2.

 Button

3.

 Battery cartridge

To remove the battery cartridge, slide it from the tool

while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Insert it all the way until it locks in place

with a little click. If you can see the red indicator on the

upper side of the button, it is not locked completely.

CAUTION:

Always install the battery cartridge

fully until the red indicator cannot be seen.

 If not,

it may accidentally fall out of the tool, causing injury to

you or someone around you.

CAUTION:

Do not install the battery cartridge

forcibly.

 If the cartridge does not slide in easily, it is

not being inserted correctly.

Tool / battery protection system

The tool is equipped with a tool/battery protection sys-

tem. This system automatically cuts off power to the

motor to extend tool and battery life. The tool will auto-

matically stop during operation if the tool or battery is

placed under one of the following conditions:

Status

Indicator lamps

 On

 Off

 Blinking

Overload

Overheat

Over

discharge

Overload protection

If the tool is overloaded by entangled weeds or other
debris,

 and the middle indicators start blinking and

the tool automatically stops.

In this situation, turn the tool off and stop the application

that caused the tool to become overloaded. Then turn

the tool on to restart.

Overheat protection for tool or

battery

There are two types of overheating; tool overheating

and battery overheating. When the tool over heating

occurs, all speed indicators blink. When the battery over
heating occurs,

 indicator blinks.

If the overheating occurs, the tool stops automatically.

Let the tool and/or battery cool down before turning the

tool on again.

Overdischarge protection

When the battery capacity becomes low, the tool stops
automatically and

 indicator blinks.

If the tool does not operate even when the switches are

operated, remove the batteries from the tool and charge

the batteries.

Indicating the remaining battery

capacity

Only for battery cartridges with the indicator

►

Fig.6:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indi-

cate the remaining battery capacity. The indicator lamps

light up for a few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.
