English |

25

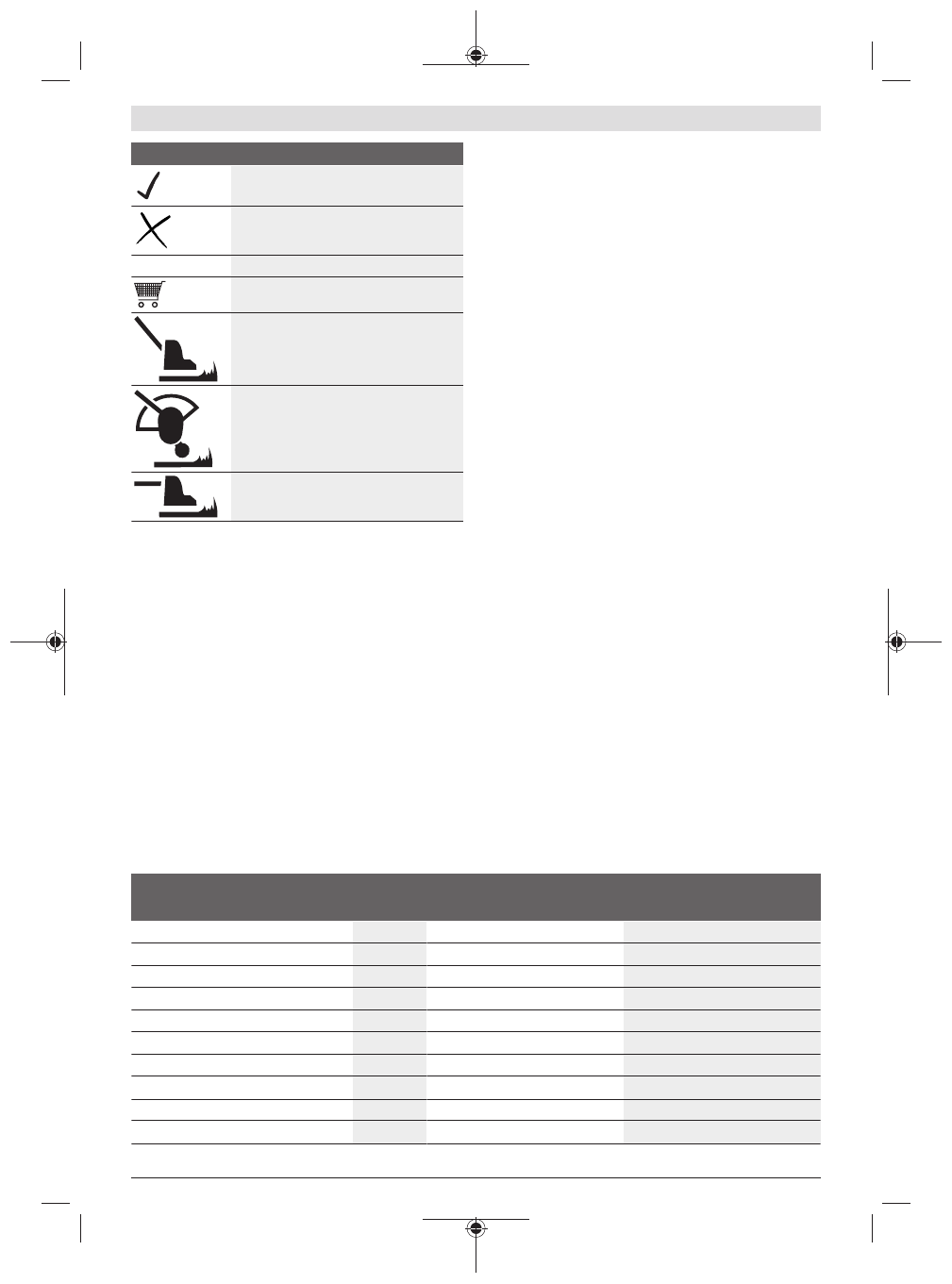

Symbol

Meaning

Permitted action

Prohibited action

CLICK!

Audible noise

Accessories/Spare Parts

Recommended position for grass cutting

Recommended position for edge trim-
ming

Recommended position for cutting under
bushes

Intended Use

The garden tool is intended for domestic use, for trimming
grass, weeds and nettles. It is designed for trimming grass
growing on slopes, under obstacles and lawn edges that can-
not be reached by the lawn mower. The garden tool is not
designed for use as a brush cutter. The garden tool is not in-
tended for commercial or industrial use.

Deliver scope (see figure B)

Carefully remove the garden tool from its packaging and
check if the following parts are complete:
– Grass trimmer
– Protection guard
– Wheel

– Battery**
– Charger**
– Original instructions
When parts are missing or damaged, please contact your
dealer.
** country specific

Product Features (see figure A)

The numbering of the product features refers to the illustra-
tion of the product on the graphics pages.

(1)

Battery unlocking button

(2)

Battery

A)

(3)

Folding handle

(4)

Foot pedal for adjusting the working angle for lawn
trimming/edge cutting

(5)

Protection guard

(6)

Wheel

(7)

Handle-adjustment release

(8)

On/Off switch

(9)

Lock-off button for On/Off switch

(10)

Button for adjustment of the working height

(11)

Lever

(12)

Charger

A)

(13)

Spool cover

(14)

Spool

(15)

Hole for line wind-up

(16)

Clamping ring

(17)

Hook for threading-in the cutting line

(18)

Slot for line guiding

(19)

Hole for line guiding

A)

Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.

Technical Data

Lawn Trimmer/Lawn Edge Trimmer

UniversalGrassCut 18

UniversalGrassCut 18-260

UniversalGrassCut 18-26

Article number

3 600 HC1 D..

3 600 HC1 E..

Rated voltage

V=

18

18

No-load speed

min

-1

7300

7300

Cutting line diameter

mm

1.6

1.6

Cutting diameter

cm

26

26

Cutting spool capacity

m

6

6

Height adjustment

cm

120 − 140

120 − 140

Folding handle

●

●

Edge cutting

●

●

Plant protector/Wheel

●

●
