Before you start

5

4

Before you start

Connection

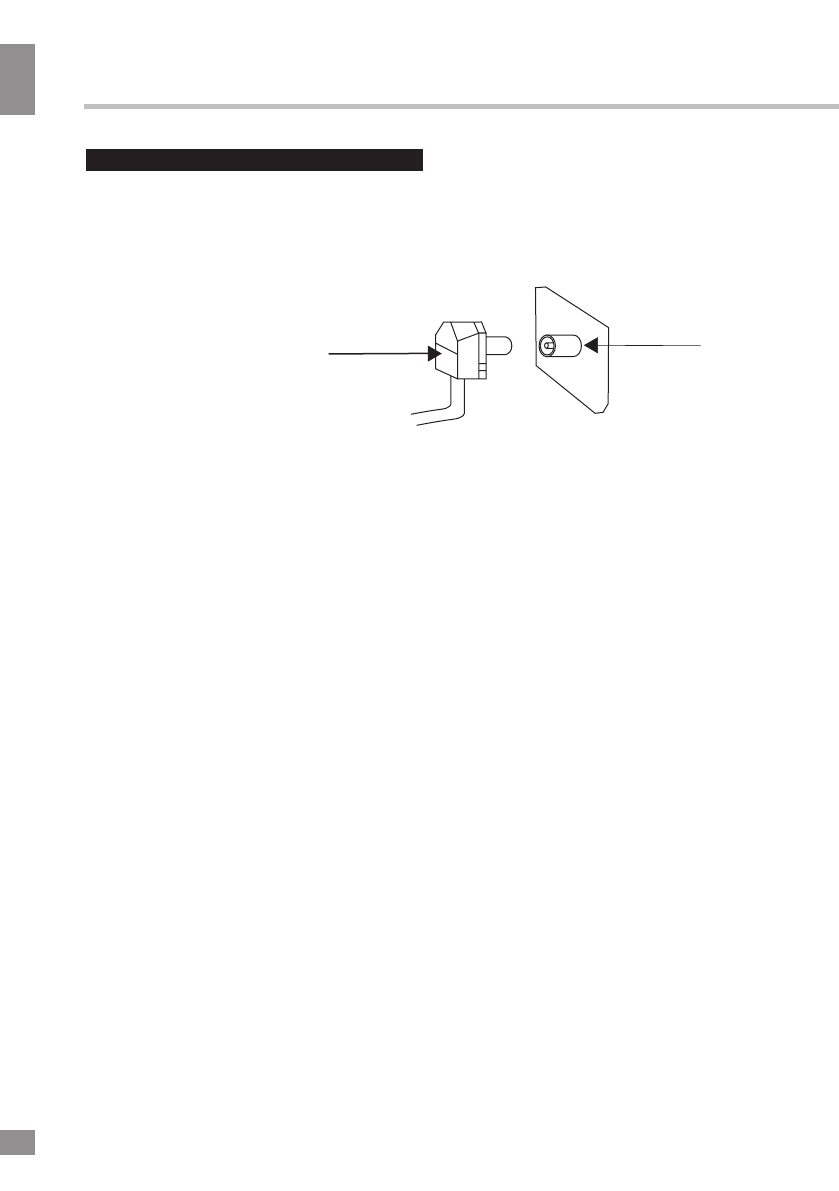

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output

jack, you can connect the signal to the

TV

with the HDMI cable (not included).

• Coaxial SPDIF output is intended for

transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection (not included).

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

• Connect the video source to the

AV mini

 input using a special cable

(not included).

• Component input miniYPbPr is

intended to receive component video signal
from the external device. Connection is made
with the help of a special component cable
(not included).

Other connections

.

• RJ45 Ethernet port is used for connecting

the TV to the Internet using the Ethernet cable
(not included).
