Operation

4

4

Operation

Connection

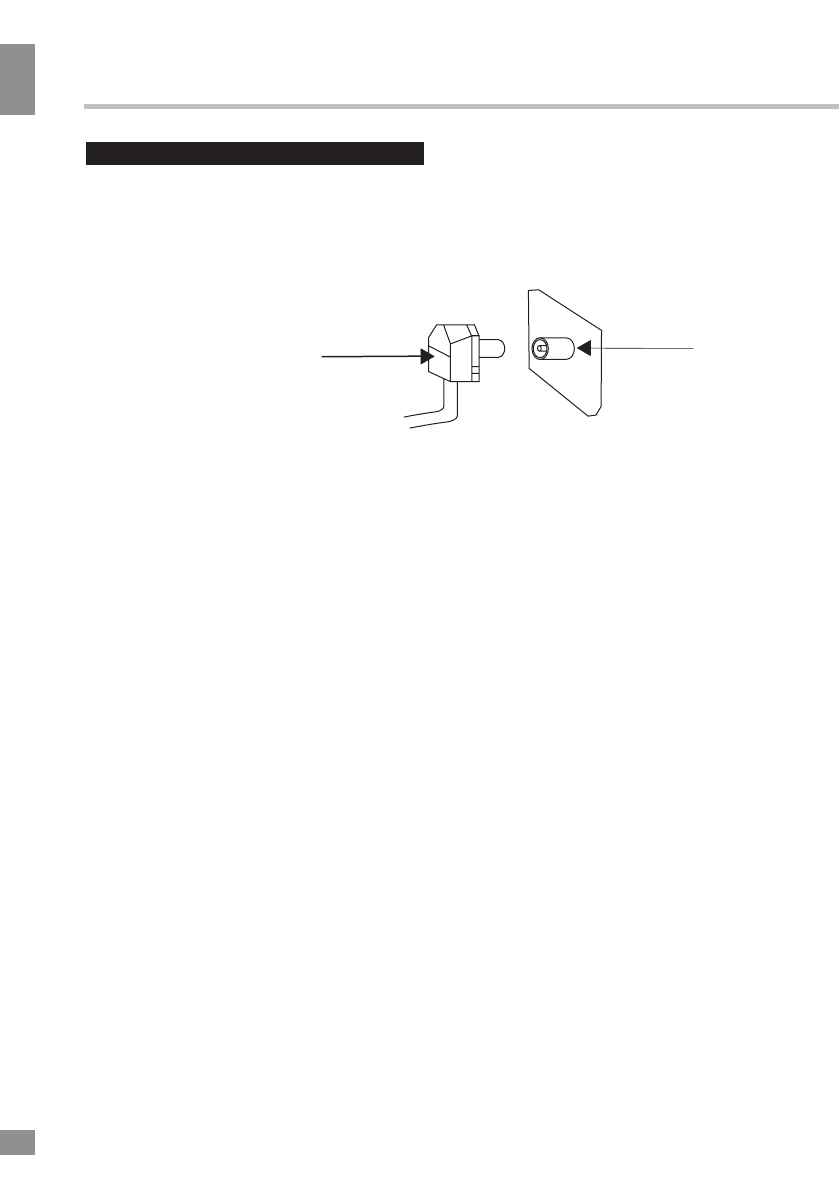

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the video source to the

Video

 input using

an

RCA

 cable.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

• Connect the audio sources (

i

ncluding

DVD, VCDR,

camcorders, etc.

) to the

Audio input

s

 ‘L’ and ‘R’

 using an RCA

cable

.

• If the video source has a HDMI output jack,

you can connect the signal to the monitor by
the HDMI cable (not included). Use the HDMI-1

(MHL) input to connect your smartphone via a
special cable to see the digital content on the
TV screen. Use the HDMI-

2

 (ARC) input to

connect audio devices (such as home theatres,
etc

.

) with ARC function.
