Before you start

5

5

Before you start

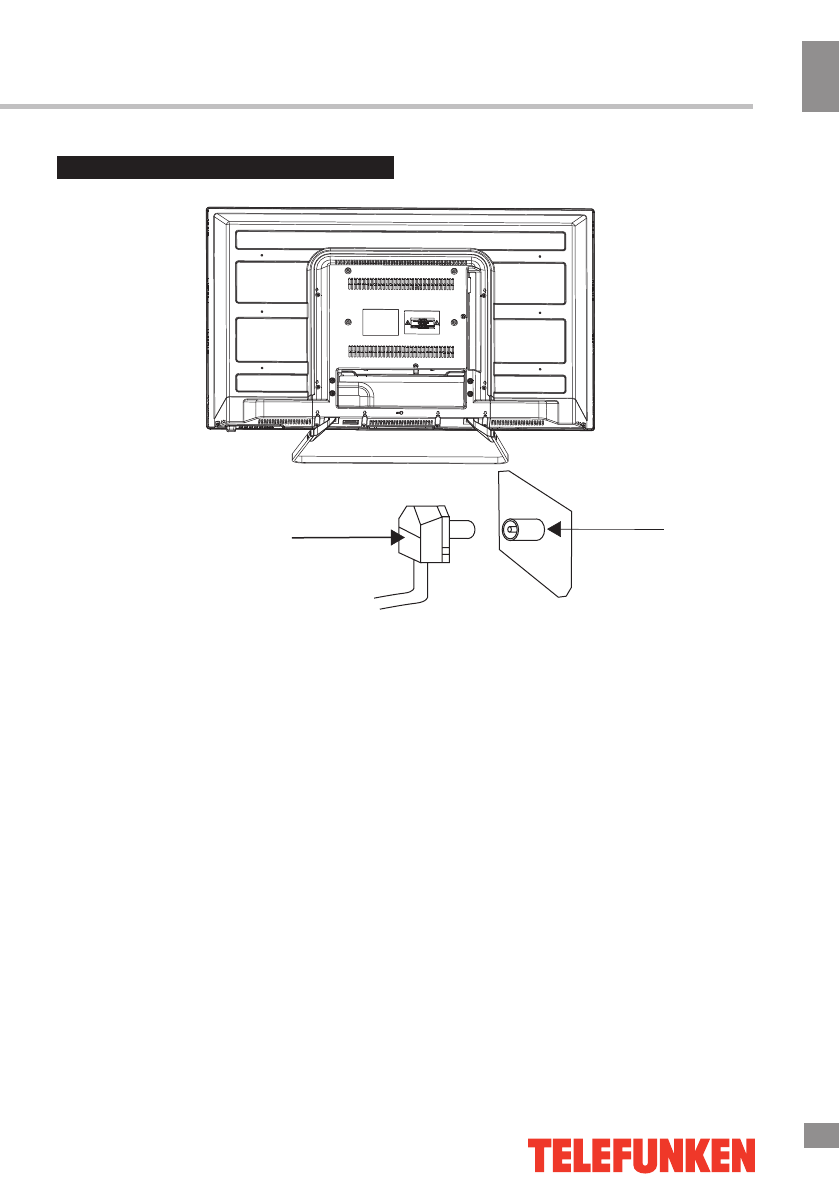

Connection

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks ‘L’ and ‘R’.

• Connect the video source to the

Composite video jack by RCA cable

.

•

Component input YPbPr is

intended to receive component video signal
from the external device. Connection is made
with the help of a special component cable. To
receive audio signal for component video, please
use Left and Right audio inputs of this unit

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• When using the LED as a computer

screen, connect the PC to the VGA jack from

the monitor by the relevant cable (not included).

• If the video source has a HDMI output jack,

you can connect the signal to the monitor by
the HDMI cable (not included).

• Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
