Before you start

5

5

Before you start

Connection

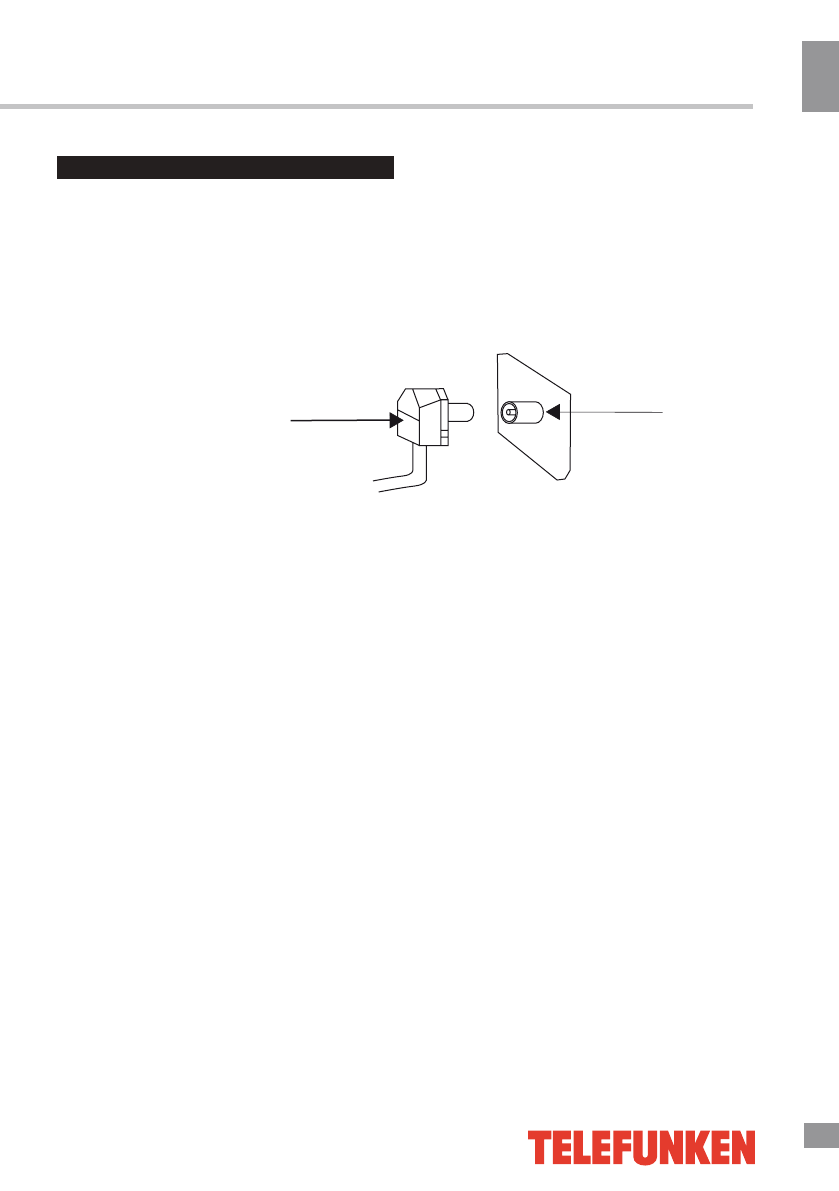

Outdoor antenna connection

Use  75  Ohm  cable  plug  or  300-75  Ohm

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• If the video source has a HDMI output

jack, you can connect the signal to the
monitor with the HDMI cable (not included).

• Optical output is intended for

transmitting multi-channel sound to an
external decoder (e.g. in 5.1-CH format).
Optical cable should be used for connection
(not included).

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• Connect the video source to the

AV input using a CVBS cable (not included).

• Connect the audio source to the

Left and Right stereo audio inputs.

• CI slot is used for CI (PCMCIA) modules

that are obtained from your digital TV provider.

.
