Before you start

5

5

Before you start

Connection

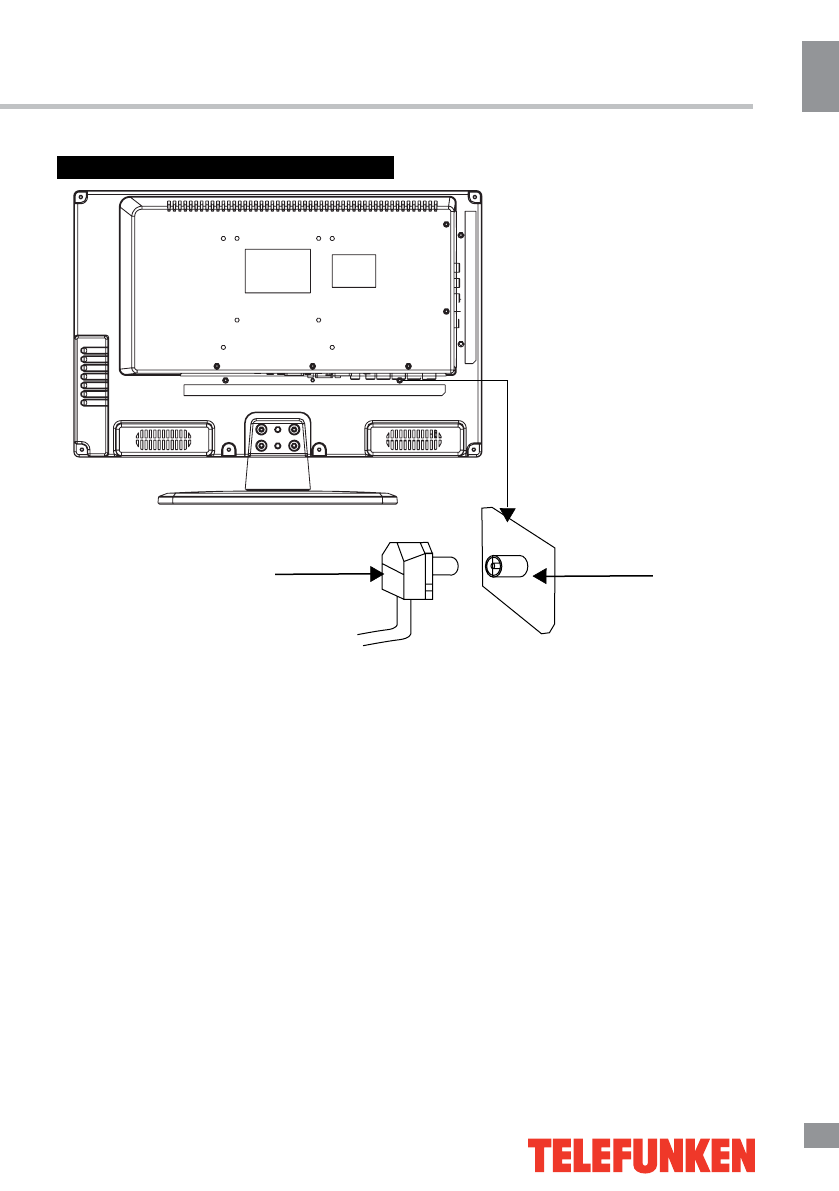

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

•  Connect a TV or CATV antenna to the

antenna jack.

•  Connect a video source to the Composite

video input jack with RCA cable.

•  Connect an audio source to the proper

Audio input jacks (left and right).

•  Connect the power cord to the DC

adapter, then connect the adapter to the DC
power socket of this unit.

•  Connect PC audio input to PC main unit

with a correspondent audio cable in PC mode.

•  When using the unit as a computer screen,

connect the PC to the PC jack of the unit by a
suitable cable.

•  If the video source has a HDMI output

jack, you can connect the signal to the unit by
HDMI cable (not included).

•  Component input is intended for receiving

component video signal if connected to the
component output of external signal source. To
receive audio signal for component video, please
use Left and Right audio inputs of this unit.

•  Connect your headphones or earphones

(not included) to the audio output socket of this
unit. When headphones are connected, the
sound output through the built-in speakers of
this unit is mute.

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
