Introduction

Sockets

Note

:

The location and names of the sockets on the TV may vary according to TV model, and not all sockets

available on all models.

LAN

This socket can be used to connect to external modem or network

access equipment.

HDMI, HDMI (Service port) or HDMI (eARC/ARC) socket (input)

The HDMI (High-Definition Multimedia Interface) socket can be

used to connect a Blu-ray player, PC with a compatible video

card installed, certain DVD players or a high-definition compatible

digital satellite decoder. This socket provides an uncompressed

digital connection that carries both video and audio data by way

of an integrated mini-plug cable.

Antenna/Cable input socket

This socket can be used to connect the outside aerial or cable

network.

Satellite input socket

This socket can be used to connect a coaxial cable to receive the

signal from your satellite receiver.

AV adapter socket (input)

This socket can be used to connect the attached AV adapter

cable with VIDEO and AUDIO L & R IN sockets. The AV IN

sockets can be used to connect a range of equipment, including

video recorders, camcorders, decoders, satellite receivers, DVD

players, or games consoles.

Digital audio out (Optical) socket

This socket can be used to connect a compatible digital audio

receiver.

Headphone socket (output)

This socket can be used to connect headphones or stereo

earphones.

Warning:

Excessive sound pressure from earphones and

headphones can cause hearing loss.

Common interface slot

This slot can be used to watch encrypted digital TV channels by

inserting a CAM (Conditional Access Module) along with a smart

card provided by a digital TV service operator.

USB 2.0 or USB 3.0 socket(input)

The USB socket(s)can be used to connect a USB 2.0 or USB 3.0

device.

Note

: The number of USB sockets on the TV may vary

according to TV model.

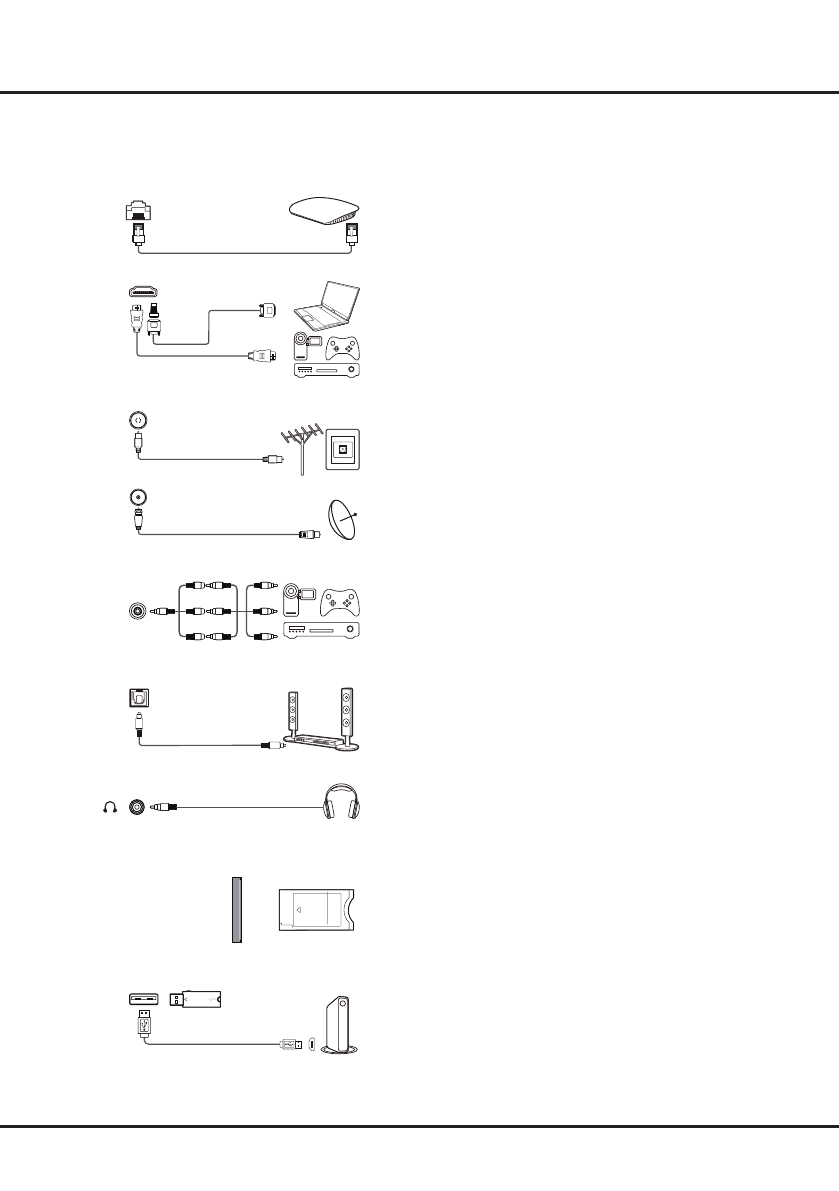

LAN

Antenna/

Cable input

Router / Modem

USB 2.0

or USB 3.0

Satellite

input

Common interface

Digital

audio out

(Optical)

HDMI

or

HDMI

(Service port)

or

HDMI

(eARC/ARC)

V

L

R

V

L

R

V

L

R

AV adapter

HDD
