Introduction

Sockets

Note

: The location and names of the sockets on the TV may vary according to TV model, and not all sockets

available on all models.

SPDIF

HDMI

or

HDMI

(SERVICE)

ANTENNA/

CABLE IN

SATELLITE

IN

AV IN

adapter

AUDIO

OUT

COMMON INTERFACE

USB 2.0

HDD

V

L

R

V

L

R

V

L

R

L

R

L

R

L

R

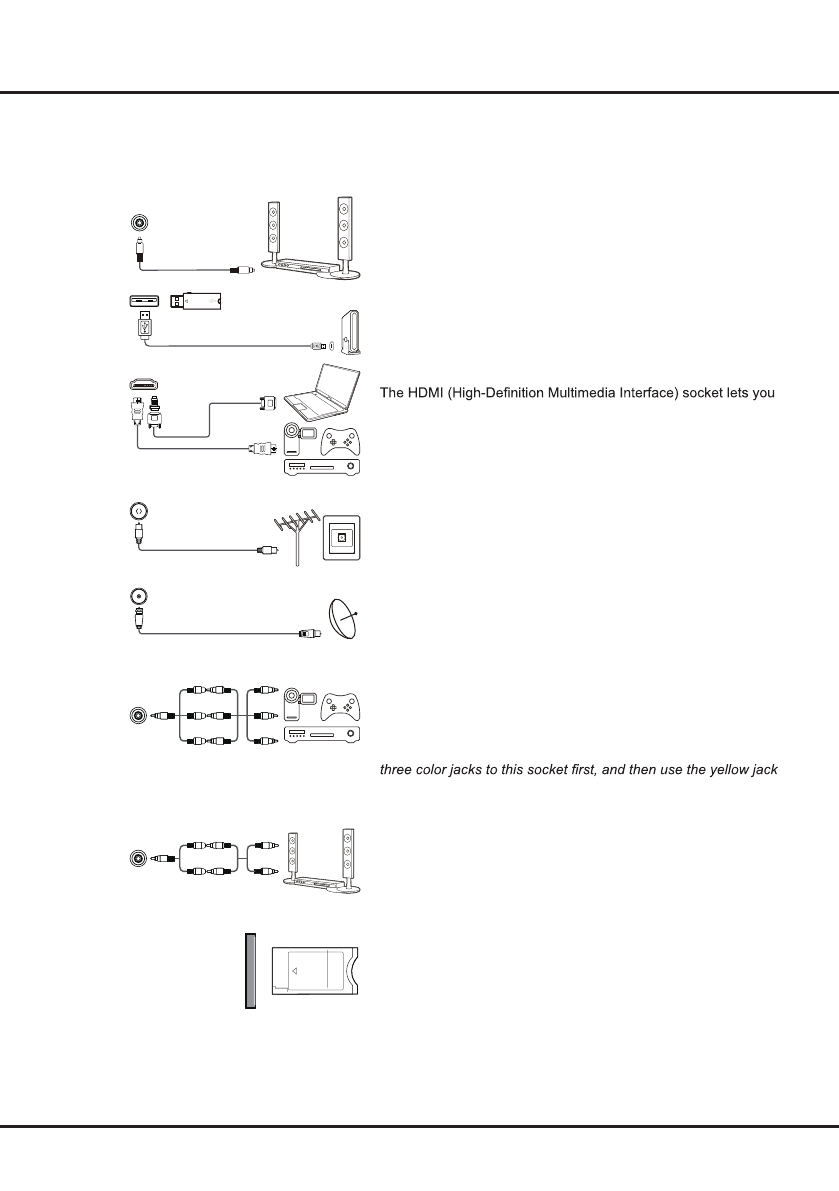

SPDIF socket (output)

This socket can be used to connect a compatible digital audio

receiver.

USB 2.0 or USB 2.0/SERVICE socket (input)

This socket can be used to connect a USB device.

HDMI or HDMI (SERVICE) socket (input)

connect a device, such as a Blu-ray player, with an HDMI output

for best picture quality. It also provides an uncompressed digital

connection that carries both video and audio data by way of an

integrated mini-plug cable.

ANTENNA/CABLE IN socket (input)

This socket can be used to connect the outside aerial or cable

network.

SATELLITE IN socket (input)

This socket can be used to connect a coaxial cable to receive

the signal from your satellite receiver.

AV IN adapter socket (input)

This socket can be used to connect a range of equipment,

including video recorders, camcorders, decoders, satellite

receivers, DVD players, or games consoles.

Note

: You must connect the attached AV adapter cable with

for VIDEO connection and the red and white jacks for AUDIO

connection.

AUDIO OUT socket (output)

COMMON INTERFACE slot

This slot can be used to watch encrypted digital TV channels by

inserting a CAM (Conditional Access Module) along with a smart

card provided by a digital TV service operator.

Use a MINI JACK audio cable to connect your TV to a compatible

analog audio receiver.
