Connections and Setup

Sockets

Note:

 The location and names of the sockets on the TV may vary according to TV model, and not all sockets are available on all models.

USB2.0 socket (input)

These sockets can be used to connect a USB device.

Note:

The number of USB sockets on the TV may vary according to

TV model.

HDMI(SERVICE) or HDMI(ARC) socket (input)

The HDMI (High-Definition Multimedia Interface) socket can be

used to connect a Blu-ray player, PC with a compatible video card

installed, certain DVD players or a high-definition compatible digital

satellite decoder. This socket provides an uncompressed digital

connection that carries both video and audio data by way of an

integrated mini-plug cable.

AV IN adapter socket

The AV IN adapter socket can be used to connect the attached

AV adapter cable with VIDEO and AUDIO L & R IN sockets. The

AV IN sockets can be used to connect a range of equipment,

including video recorders, camcorders, decoders, satellite receivers,

DVD players, or games consoles. The VIDEO IN socket provides

composite video connection.

ANTENNA IN socket (input)

This socket can be used to connect an outside aerial.

LAN

RJ45 plug for connecting to external modem or network access

equipment.

SPDIF or DIGITAL AUDIO OUT (OPTICAL) socket (output)

The SPDIF socket can be used to connect a compatible digital audio

receiver.

Headphone socket (output)

This socket can be used to connect headphones or stereo

earphones.

Warning:

 Excessive sound pressure from earphones and

headphones can cause hearing loss.

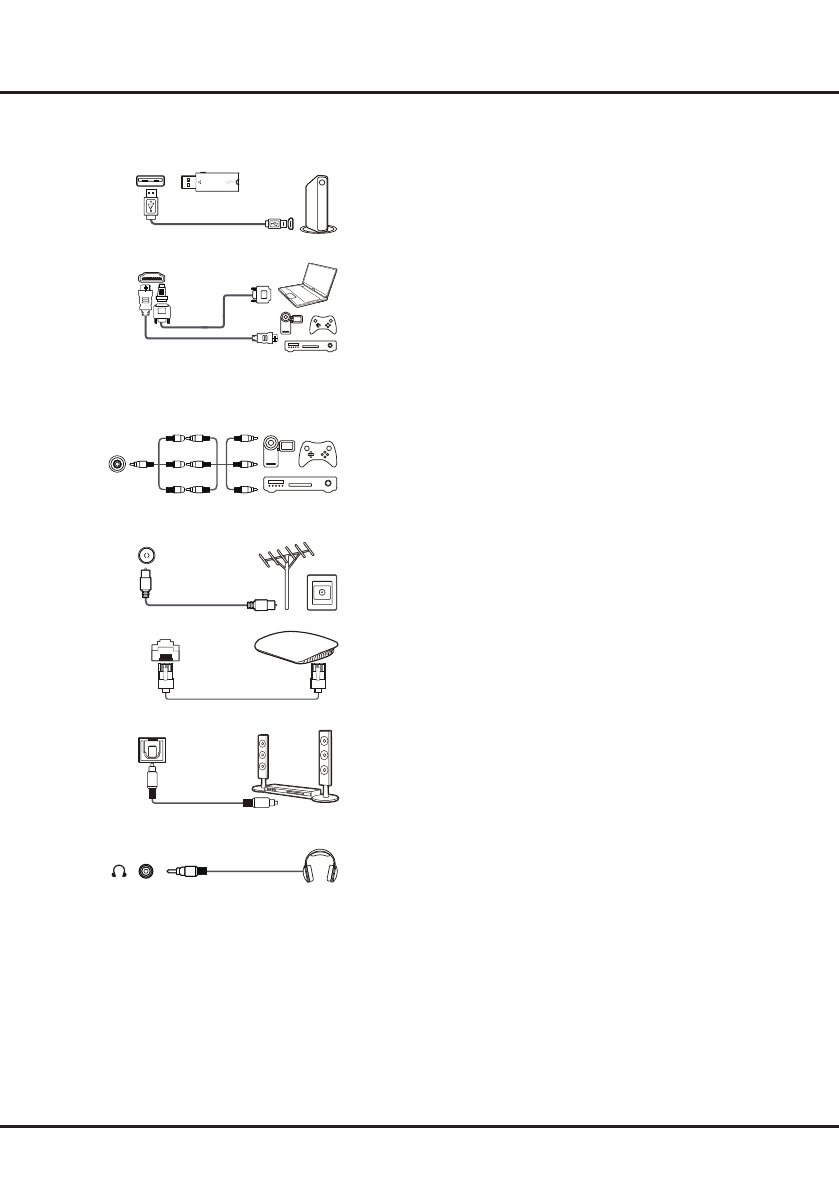

LAN

Router / Modem

ANTENNA IN

AV IN

adapter

V

L

R

V

L

R

V

L

R

     HDMI

(SERVICE)

or HDMI

(ARC)

USB 2.0

HDD

SPDIF or

DIGITAL

AUDIO OUT

(OPTICAL)
