Introduction

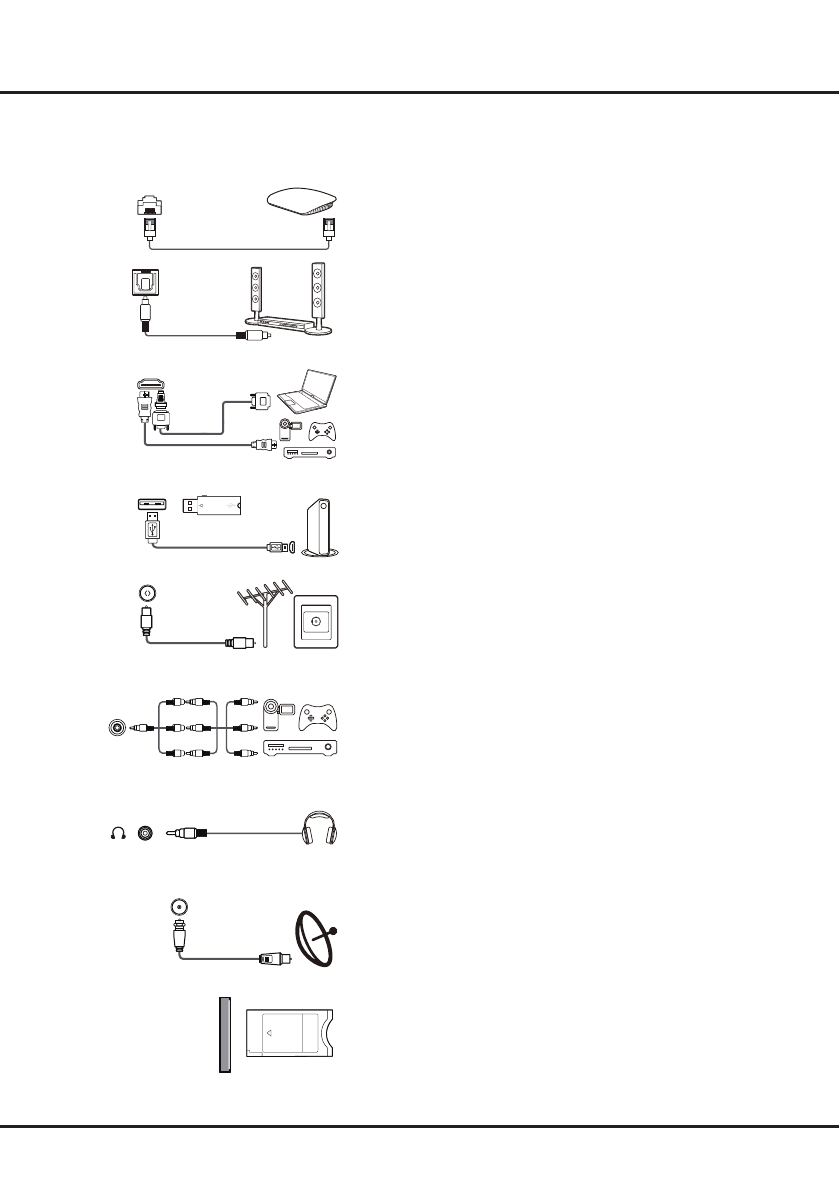

Sockets

Note

:

The location and names of the sockets on the TV may vary according to TV model, and not all sockets

available on all models.

LAN

This socket can be used to connect to external modem or network

access equipment.

SPDIF or DIGITAL AUDIO OUT(OPTICAL) socket (output)

This socket can be used to connect a compatible digital audio

receiver.

HDMI(SERVICE) or HDMI(ARC) socket (input)

The HDMI (High-Definition Multimedia Interface) socket can be

used to connect a Blu-ray player, PC with a compatible video

card installed, certain DVD players or a high-definition compatible

digital satellite decoder. This socket provides an uncompressed

digital connection that carries both video and audio data by way

of an integrated mini-plug cable.

USB 2.0 socket (input)

This socket can be used to connect a USB device.

Note: The number of USB sockets on the TV may vary according

to TV model.

ANTENNA/CABLE IN socket (input)

This socket can be used to connect the outside aerial or cable

network.

AV IN adapter socket

The AV IN adapter socket can be used to connect the attached

AV adapter cable with VIDEO and AUDIO L & R IN sockets. The

AV IN sockets can be used to connect a range of equipment,

including video recorders, camcorders, decoders, satellite

receivers, DVD players, or games consoles.

Headphone socket (output)

This socket can be used to connect headphones or stereo

earphones.

Warning:

Excessive sound pressure from earphones and

headphones can cause hearing loss.

SATELLITE IN socket (input)

This socket can be used to connect a coaxial cable to receive the

signal from your satellite receiver.

COMMON INTERFACE socket

This slot can be used to watch encrypted digital TV channels by

inserting a CAM(Conditional Access Module) along with a smart

card provided by a digital TV service operator.

ANTENNA

/CABLE IN

AV IN

adapter

V

L

R

V

L

R

V

L

R

COMMON INTERFACE

LAN

Router / Modem

USB 2.0

HDD

     HDMI

(SERVICE)

or HDMI

(ARC)

SATELLITE IN

SPDIF or

DIGITAL

AUDIO OUT

(OPTICAL)
