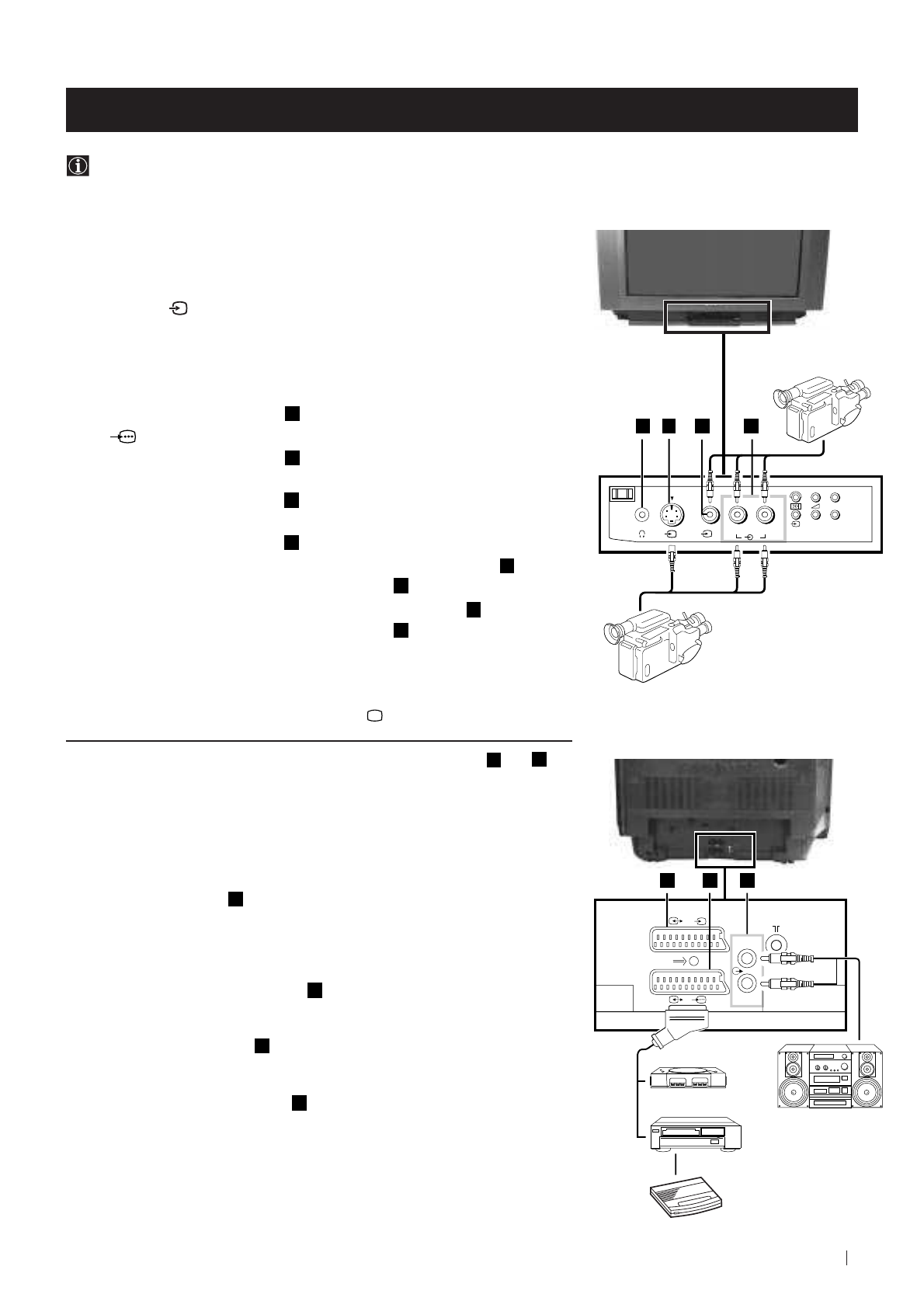

Optional Connections

You can connect optional audio or video equipment to your TV, such as a VCR, a camcorder or a video game as shown
below.

Using Optional Equipment

MONO

L/G/S/I R/D/D/D

+

P

_

L/G/S/I R/D/D/D

s

3

3

3

L/G/S/I R/D/D/D

Optional Connections

Select and View the Input Signal

1

Connect your equipment to the designated TV socket.

2

Press the

 button repeatedly on your remote control until the correct

input symbol appears on the TV screen.

Symbol

Input signals

k

• Audio/video input signal through the Euro AV

connector

 F

• RGB input signal through the Euro AV

connector

 F

K

• Audio/video input signal through the Euro AV

connector

E

q

• S video input signal through the Euro AV

connector

E

K

• Video input signal through the phono socket

C

 and

Audio input signal through

D

q

• S video input signal through the socket

 B

 and

Audio input signal through

D

.

3

Switch on the connected equipment.

4

To return to normal TV picture, press the

 button on the remote control.

Note:

To avoid picture distortion, do not connect equipment to the

 B

 and

E

connectors at the same time.

Additional Information

Connecting a VCR

Plug in VCR to the socket

 F

 on the rear of the TV set.

We recommend you tune in the VCR signal to TV programme number ‘0’ using
the section “Manually Tuning the TV“ of this instruction manual.

Connecting Headphones

Plug in your headphones to the socket

A

 on the front of the TV set.

Connecting Decoders

Plug in decoders to the socket

 F

 on the rear of the TV.

Connecting to External Audio Equipment

Plug in your Hi-Fi equipment to the

G

 sockets on the rear of the TV if you wish

to amplify the audio output from the TV.

*

 “PlayStation” is a product of Sony Computer Entertainment, Inc.

*

 “PlayStation” is a trademark of Sony Computer Entertainment, Inc.
