10

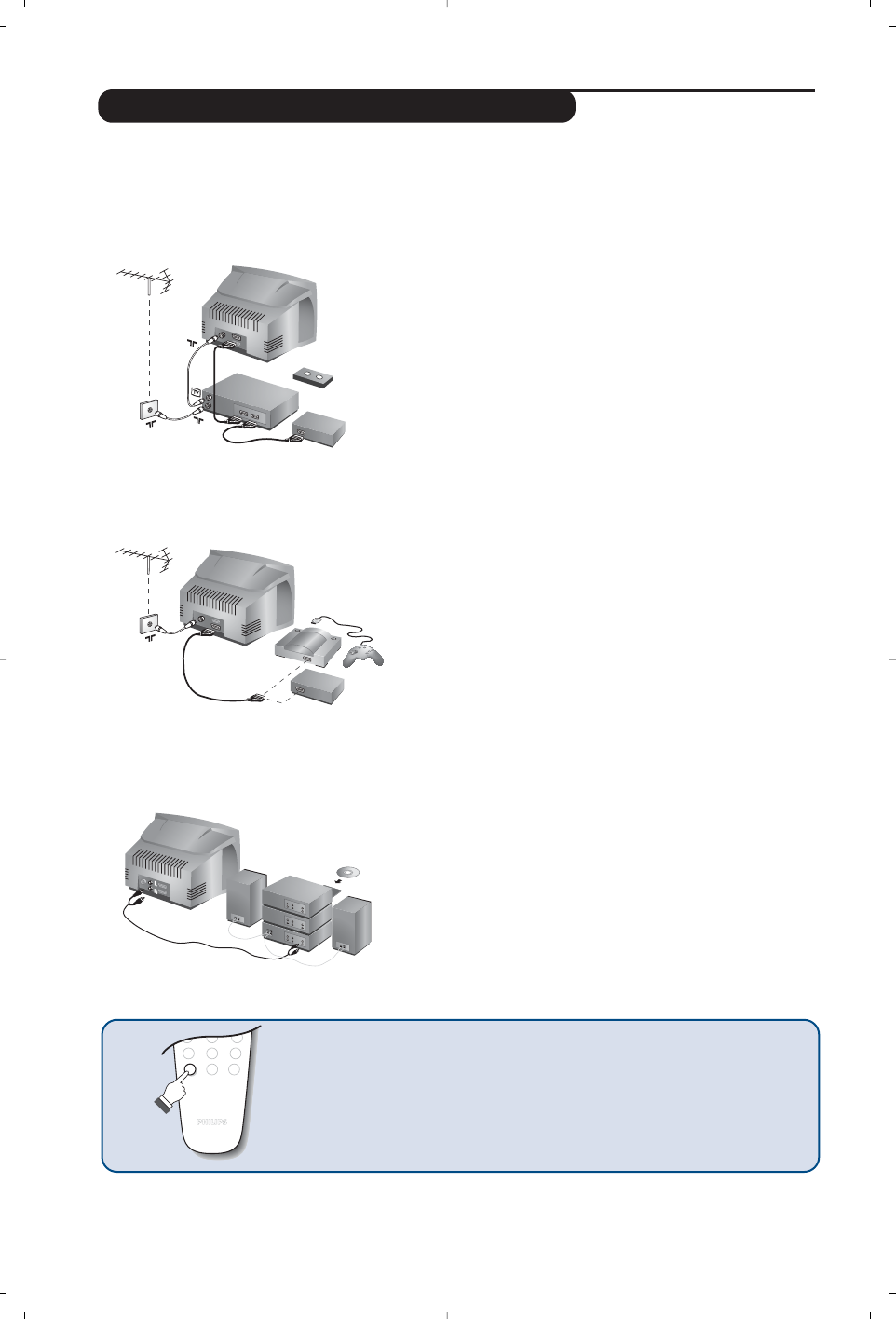

Connecting peripheral equipment

The television has 2 external sockets situated at the back of the set (EXT1 and EXT2).

The EXT1 socket has audio, CVBS/RGB inputs and audio, CVBS outputs.
The EXT2 socket has audio, CVBS/S-VHS inputs and audio, CVBS outputs.

Carry out the connections shown opposite, using a good
quality euroconnector cable.

If your video recorder does not have a euroconnector socket, the
only connection possible is via the aerial cable.You will therefore
need to tune in your video recorder's test signal and assign it
programme number 0 (refer to manual store, p. 6).
To reproduce the video recorder picture, press

0

.

Video recorder with decoder

Connect the decoder to the second euroconnector socket
of the video recorder.You will then be able to record
scrambled transmissions.

Video recorder

Satellite receiver, decoder, CDV, games, etc.

Carry out the connections shown opposite.
To optimise picture quality, connect the equipment which
produces the RGB signals (digital decoder, games, etc.) to
EXT1, and the equipment which produces the S-VHS
signals (S-VHS and Hi-8 video recorders, certain DVD
drives) to EXT2 and all other equipment to either EXT1
or EXT2.

To connect to a hi-fi system, use an audio connection cable
and connect the “L” and “R” outputs on the TV set to the
“AUDIO IN” “L” and “R” input on your hi-fi amplifier.

Other equipment

Amplifier

(only available on certain versions)

VCR

EXT 2

EXT 1

5

6

4

8

7

9

0

ù

Y

To select connected equipment

Press the

n

key to select

EXT1

,

EXT2

,

S-VHS2

(S-VHS signals

from the EXT2 socket) and

AV

for connections on the front panel.

Most equipment (decoder, video recorder) carries out the switching itself.
