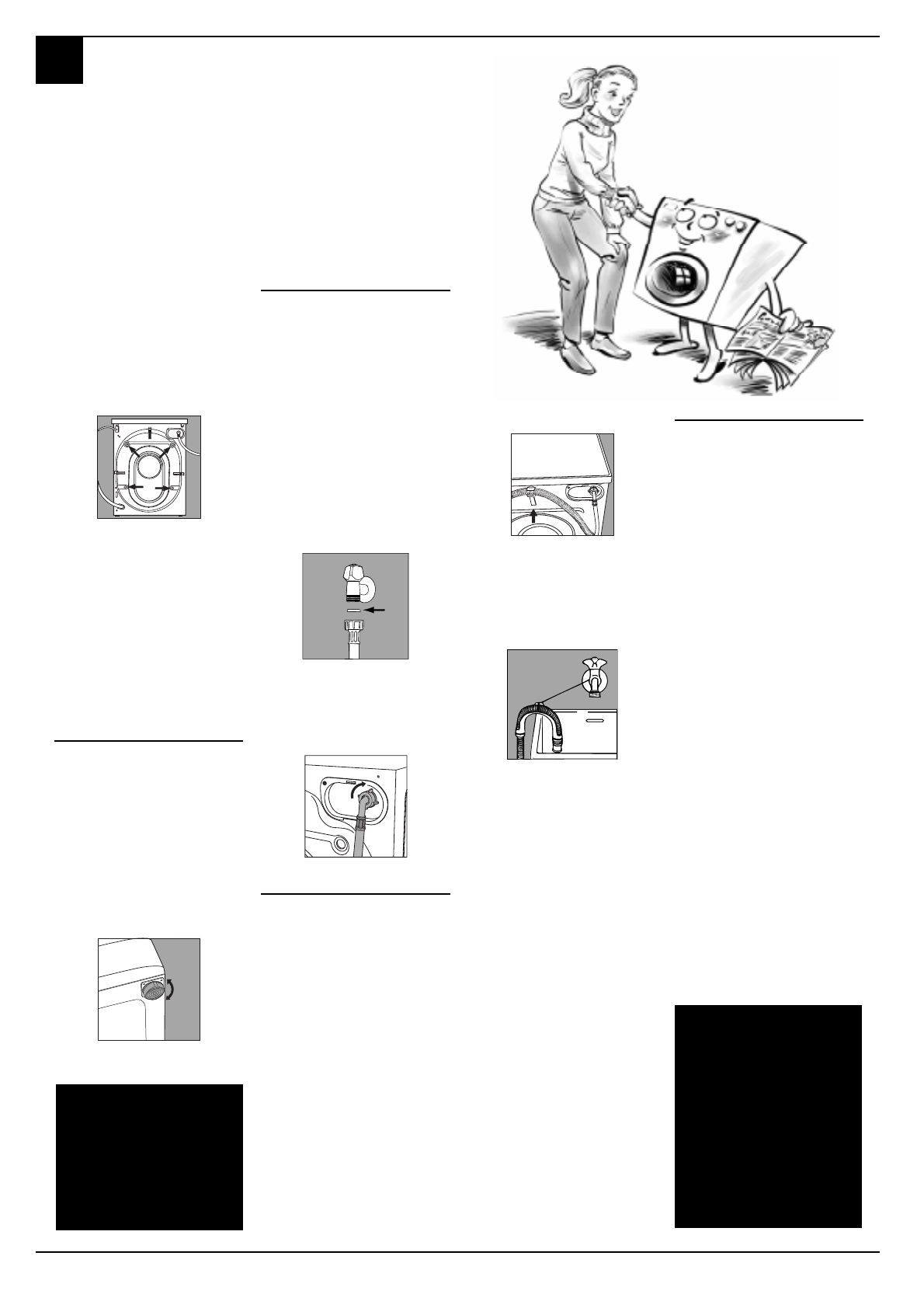

Margherita - Instructions for installation and use

When Margherita

arrives

Installation and removal

Whether new or just  transported to a new house,

installation is extremely important for the correct

functioning of your washer-dryer.

The hook to be used in case the drain
hose ends at a height below 60 cm.

If the tube drains into a tub or

sink, apply the plastic guide and

tie it to the tap.

The guide for draining into tubs and
sinks.

It must never remain immersed

in water.

Extensions are unadvisable. In

c a s e   o f   a b s o l u t e   n e e d ,   t h e

extension must have the same

diameter as the original hose and

must not exceed 150 cm. In case

of wall draining pipes, their

efficiency must be checked by a

qualified technician. If the

dwelling is on one of the upper

floors of a building, there may be

drain trap problems causing the

washer-dryer to load and unload

water continuously.

I n   o r d e r   t o   a v o i d   s u c h   a n

inconvenience, special anti-drain

trap valves are available in shops.

Electric connection

Before connecting the appliance

to the electric socket, be sure

that:

1) the electric socket is able to

s u s t a i n   t h e   a p p l i a n c e ’s

m a x i m u m   p o w e r   l o a d

indicated on the data plate

and in compliance with the

law;

2) the supply voltage is included

within the values indicated

on the data plate;

3) the socket is compatible with

the appliance’s plug. If not,

do not use adapters, but

replace either the socket or

the plug;

4) electric household appliances

must be equipped with an

“earthing” system.

After removing the appliance

from its packaging, check that it

is intact. If in doubt, contact a

qualified technician immediately.

The inside of the machine is

blocked, for transportation, by

four screws on the back panel.

Before using the washer-dryer,

remove the screws

, remove the

rubber with the aid of the special

spacer (keeping all the parts) and

use the plastic tabs provided to

fill in the holes.

Important:

Use the cap (provided)

to close the 3 holes which housed

the stop pin, situated in the right-

hand part of the lower back of the

washer-dryer.

Levelling

The washer-dryer must be levelled

appropriatey in order to guarantee

its correct functioning. To level the

appliance, the front feet must be

adjusted; the angle of inclination,

measured according to the

worktop, must not exceed 2°.

When placed on carpet, make sure

the ventilation is not hampered

within its surroundings.

The front feet are adjustable.

Connection to the water

mains

Water pressure must range within

the values indicated on the data

plate on the rear of your washer-

dryer. If the water pipes are new

or left unused, then before

connecting the machine run the

water until clear to remove

debris. Connect the inlet hose to

a cold water tap having a ¾ “ BSP

thread. Ensure that the rubber

sealing washer-dryers are fitted at

each end of the inlet hose, with the

fitter washer-dryer at the tap end.

A

The rubber gasket .

Connect the inlet hose to the

threaded connector on the

machine rear.

Water pipe inlet at the top right.

Connecting the drain

hose

There are two hooks (right or

left) on the rear of your washer-

dryer to which the drain hose is

to be fixed. Insert the other end

in a duct or place it on the edge

o f   a   s i n k   o r   t u b   a v o i d i n g

excessive kinks and bending. It

should be placed at a height

ranging from 60 to 100 cm. In

case it is necessary to fix the end

of the hose at a height below 60

cm from the ground, it must be

fixed in the appropriate hook

placed on the upper part of the

back panel.

W a r n i n g !

The company denies

all liability if and

when these norms are

not respected.

Plastic bags,

e x p a n d e d   s t y r o f o a m ,

nails and other

packaging parts are

not children’s toys,

and are potentially

d a n g e r o u s .

Do not throw the

blocking screws and

the spacers away. In

the event of a removal,

they can be used to

block the components

inside the appliance

again and so to protect

it during transport.
