ENGLISH

en

12

- Ensure good ventilation of the workplace and

keep it clean using a vacuum cleaner. Sweeping
or blowing stirs up dust.

- Vacuum or wash protective clothing. Do not blow,

beat or brush.

Illustrations are provided at the beginning of the
operating instructions.

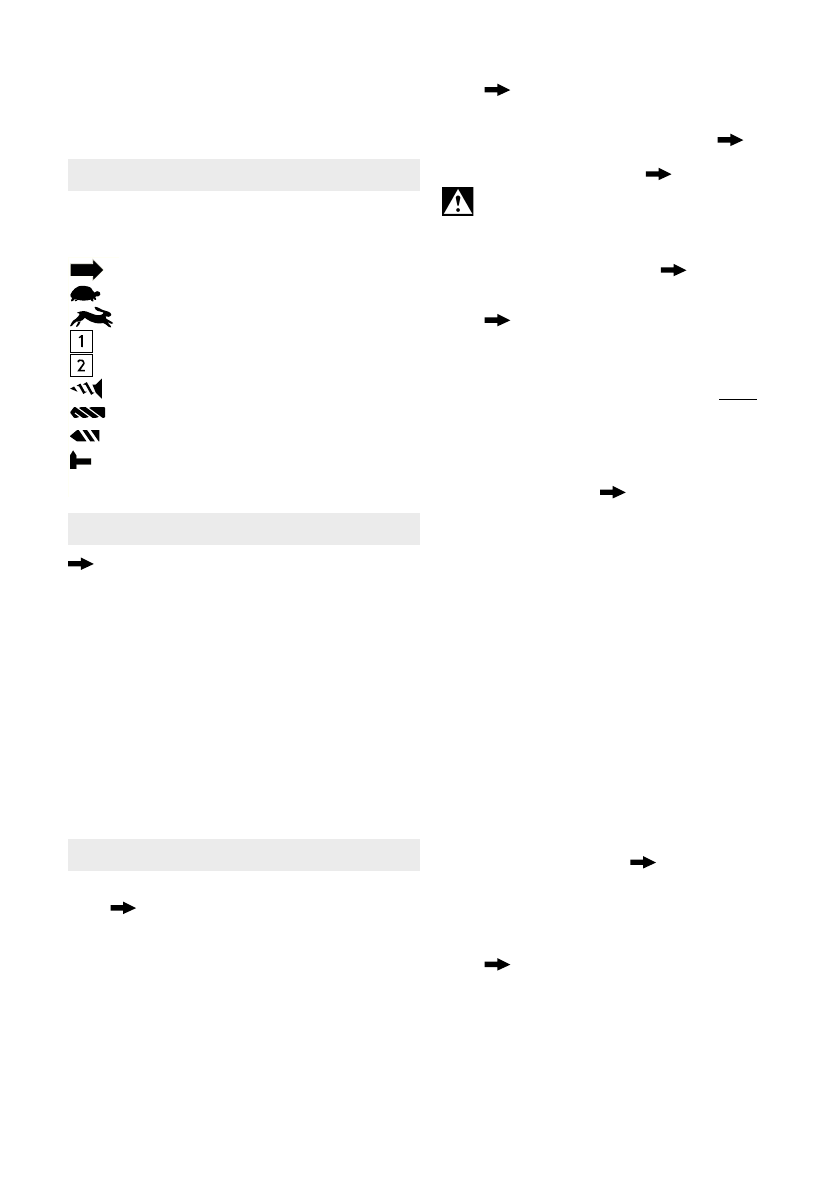

Symbol explanation:

Movement direction

Slow

Fast

First gear

Second gear

Screws

Drill bit

Without torque limitation

Impact drilling

Torque

Fig. A

1 Keyless  chuck
2 Sleeve (torque, drilling, impact drilling)*

3 Switch (1st/2nd gear)

4 Rotation selector switch (rotation setting,

transport lock) - both sides of the machine

5 Bit  depot  *
6 Belt  hook  *

7 Battery pack release button

8 Capacity indicator button
9 Capacity and signal indicator

10 Battery pack
11 LED lights

12 Trigger switch

*equipment-specific

7.1

Battery pack, capacity and signal display

Fig. B

Charge the battery pack before use.

If performance diminishes, recharge the battery
pack.

The ideal storage temperature is between 10°C and
30°C.

7.2

Removing, replacing battery pack

Fig. C

7.3

Setting direction of rotation, transporting

safety device (switch-on lock)

Fig. D

7.4

Selecting gear stage

Fig. E

Do not set the switch (3) unless the motor has
stopped completely!

7.5

Setting torque limitation,

drilling, impact drilling

Fig. F

7.6

Switching on/off, setting speed

Fig. A

Switching on, speed:

 press the trigger (12). The

speed can be changed by pressing in the
trigger.

Switching off:

 release the trigger (12). Note: The

noise that the machine makes when it switches
off is due to the design (quick stop) and has no
influence on the function or the service life of
the machine.

7.7

Keyless chuck

Fig. G

With a soft tool shank, retightening may be required
after a short period of operation.

Notes on machines with the designation SB...:

1. The ratchet sound which can possibly be heard

after opening the drill chuck is functional and is
switched off by a reverse rotation of the sleeve.

2. Clamping tool:

Turn sleeve in direction "GRIP, ZU" until the
noticeable mechanical resistance has been
overcome.

Caution! The chuck is not yet fully tight-

ened!

 Keep turning the sleeve (

it must "click"

when turning)

) until it cannot be turned any

further -

only now

 is the tool

 safely

 clamped.

Cleaning:

 From time to time, hold the machine

vertically with the keyless chuck facing
downwards and turn the sleeve fully in direction
"GRIP, ZU" and then turn fully in direction
"AUF, RELEASE". The dust collected falls from
the keyless chuck.

7.8

Unscrewing chuck

Fig. H

Employ the same procedure when attaching the
chuck, except in reverse order.

7.9

Chuck with quick bit change system (for

BS 14.4 LT Quick, BS 18 LT Quick)

Fig. I

To remove:

Push the interlock ring forward (a),

advance and pull off the chuck (b).

To mount:

Push the interlock ring forward and

move the chuck as far as the limit stop on the drill
spindle.

5. Figures

6. Overview

7. Use

Nm
