8 ENGLISH

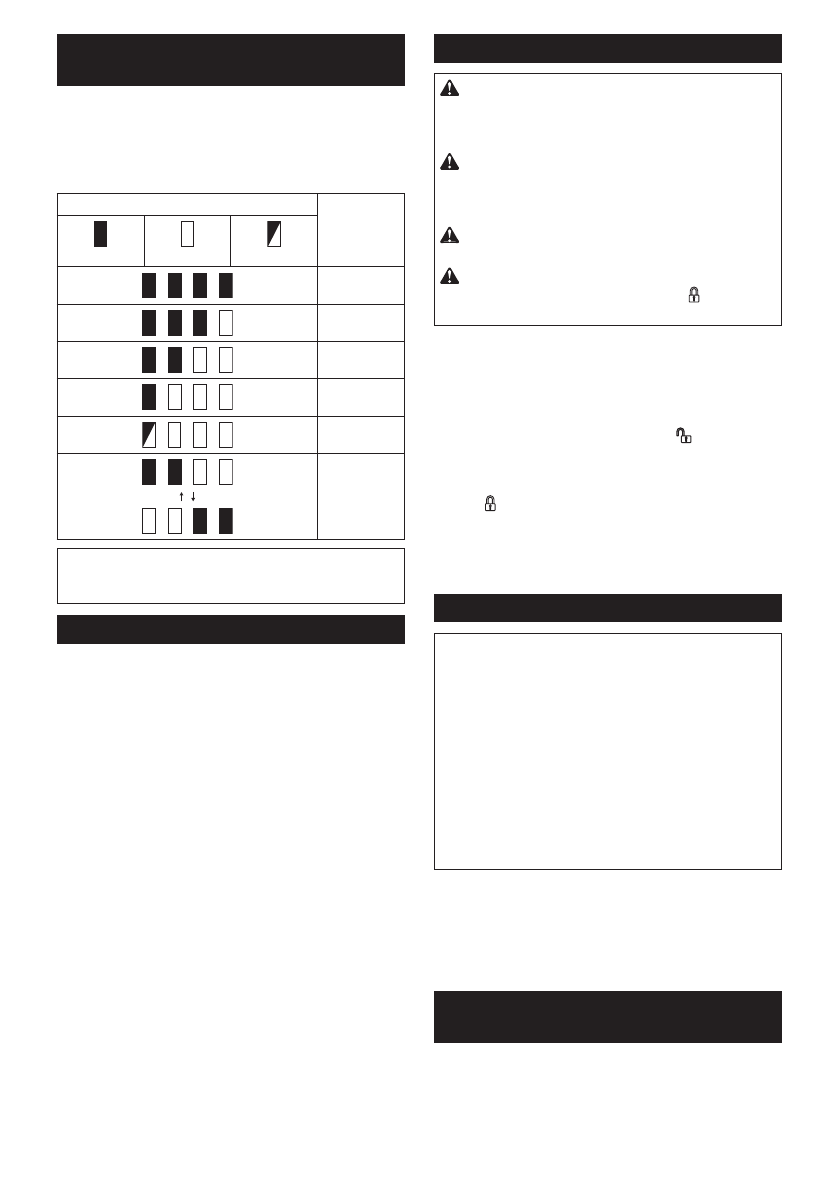

Indicating the remaining battery

capacity

Only for battery cartridges with the indicator

►

Fig.3:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indi

-

cate the remaining battery capacity. The indicator lamps

light up for a few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.

Tool / battery protection system

The tool is equipped with a tool/battery protection sys

-

tem. This system automatically cuts off power to the

motor to extend tool and battery life. The tool will auto

-

matically stop during operation if the tool or battery is

placed under one of the following conditions:

Overload protection

When the tool or battery is operated in a manner that

causes it to draw an abnormally high current, the tool

automatically stops without any indication. In this sit

-

uation, turn the tool off and stop the application that

caused the tool to become overloaded. Then turn the

tool on to restart.

Overheat protection

When the tool or battery is overheated, the tool stops

automatically. In this case, let the tool and battery cool

before turning the tool on again.

Overdischarge protection

When the battery capacity is not enough, the tool stops

automatically. In this case, remove the battery from the

tool and charge the battery.

Switch action

CAUTION:

Before installing the battery car-

tridge into the tool, always check to see that the

switch trigger actuates properly and returns to

the "OFF" position when released.

CAUTION:

Switch can be locked in "ON" posi-

tion for ease of operator comfort during extended

use. Apply caution when locking tool in "ON"

position and maintain firm grasp on tool.

CAUTION:

Do not install the battery cartridge

with the lock button engaged.

CAUTION:

When not operating the tool,

depress the trigger-lock button from   side to

lock the switch trigger in the OFF position.

►

Fig.4:

1.

 Trigger-lock button

►

Fig.5:

1.

 Switch trigger

2.

 Lock button

3.

 Trigger-

lock button

To prevent the switch trigger from accidentally pulled,

the trigger-lock button is provided. To start the tool,
depress the trigger-lock button from A ( ) side and pull

the switch trigger. Tool speed is increased by increas

-

ing pressure on the switch trigger. Release the switch

trigger to stop. After use, depress the trigger-lock button
from B ( ) side.
For continuous operation, depress the lock button while

pulling the switch trigger, and then release the switch

trigger. To stop the tool, pull the switch trigger fully, then

release it.

Speed change

NOTICE:

Use the speed change knob only after

the tool comes to a complete stop.

 Changing the

tool speed before the tool stops may damage the tool.

NOTICE:

Always set the speed change knob

carefully into the correct position.

 If you operate

the tool with the speed change knob positioned half-

way between the position 1 and the position 2, the

tool may be damaged.

NOTICE:

If the rotation speed significantly

decreases during operation in the high speed

mode, stop the tool and change the mode to the

low speed mode.

 Otherwise, the motor may get

overloaded and cause a malfunction or fire.

Two speed ranges can be preselected with the speed

change knob.

To change the speed, turn the speed change knob so

that the pointer points to the position 1 for low speed or

the position 2 for high speed.

►

Fig.6:

1.

 Pointer

2.

 Speed change knob

Accidental restart preventive

function

If you install the battery cartridge while pulling the

switch trigger or locking the switch trigger, the tool does

not start. To start the tool, release the switch trigger, and

then pull the switch trigger.
