For tool with one-touch type sleeve
To install the bit, insert the bit into the sleeve as far as it
will go.
Procedure 2
In addition to the procedure(1) above, insert the bit-
piece into the sleeve with its pointed end facing in.
Fig.9
To remove the bit, pull the sleeve in the direction of the
arrow and pull the bit out.
NOTE:
•
If the bit is not inserted deep enough into the
sleeve, the sleeve will not return to its original
position and the bit will not be secured. In this
case, try re-inserting the bit according to the
instructions above.
•
When it is difficult to insert the bit, pull the sleeve
and insert it into the sleeve as far as it will go.
•
After inserting the bit, make sure that it is firmly
secured. If it comes out, do not use it.
Hook
Fig.10
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool.
To install the hook, insert it into a groove in the tool
housing on either side and then secure it with a screw.
To remove, loosen the screw and then take it out.
OPERATION
Fig.11
CAUTION:
•
Never obstruct the air vents on the side of the tool
for cooling down oil unit and motor during
operation. Failure to do so may cause the tool
excessive heat and damage.

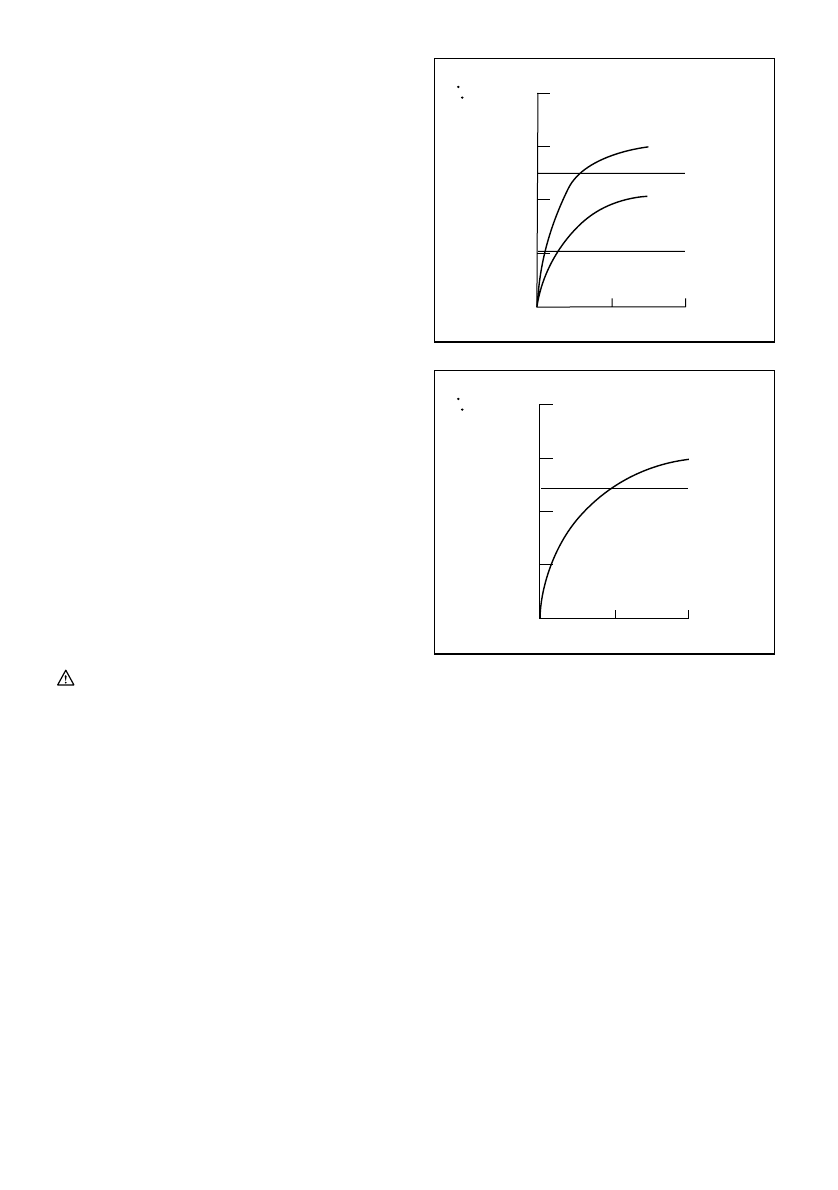

Fig.12
The proper fastening torque may differ depending upon
the kind or size of the screw/bolt, the material of the
workpiece to be fastened, etc. The relation between
fastening torque and fastening time is shown in the
figures.
Standard
bo
l
t
N
m
F
asten
i
ng
tor
q
ue
F
asten
i
ng
t
i
me
(S)
P
roper
fasten
i
ng
tor
q
ue
(kgf
cm)
20
(20
4
)
15
(153)
10
(102)
5
(51)
0
1
.
0
2
.
0
M6
M8
M8
M6
015298
Hi
gh
tens
il
e
bo
l
t
N
m
F
asten
i
ng
tor
q
ue
F
asten
i
ng
t
i
me
(S)
P
roper
fasten
i
ng
tor
q
ue
(kgf
cm)
0
1
.
0
2
.
0
M6
M6
20
(20
4
)
15
(153)
10
(102)
5
(51)
015299
Hold the tool firmly and place the point of the driver bit
in the screw head. Apply forward pressure to the tool to
the extent that the bit will not slip off the screw and turn
the tool on to start operation.
NOTE:
•
Use the proper bit for the head of the screw/bolt
that you wish to use.
•
Choose a proper impact force and carefully adjust
pressure on the switch trigger so that the screw is
not damaged.
•
Hold the tool pointed straight at the screw.
•
For tightening bolt, select the soft or T mode
impact force grade.
•
If the impact force is too strong you tighten the
screw for a time longer than shown in the figures,
the screw or the point of the driver bit may be
overstressed, stripped, damaged, etc. Before
starting your job, always perform a test operation
to determine the proper fastening time for your
screw.
The fastening torque is affected by a wide variety of
factors including the following. After fastening, always
check the torque with a torque wrench.
