7 ENGLISH

Position of

speed

change lever

Speed

Torque

Applicable

operation

1

Low

High

Heavy load-

ing operation

2

High

Low

Light loading

operation

To change the speed, switch off the tool first. Select

the "2" side for high speed or "1" for low speed but high

torque. Be sure that the speed change lever is set to the

correct position before operation.

If the tool speed is coming down extremely during the

operation with "2", slide the lever to the "1" and restart

the operation.

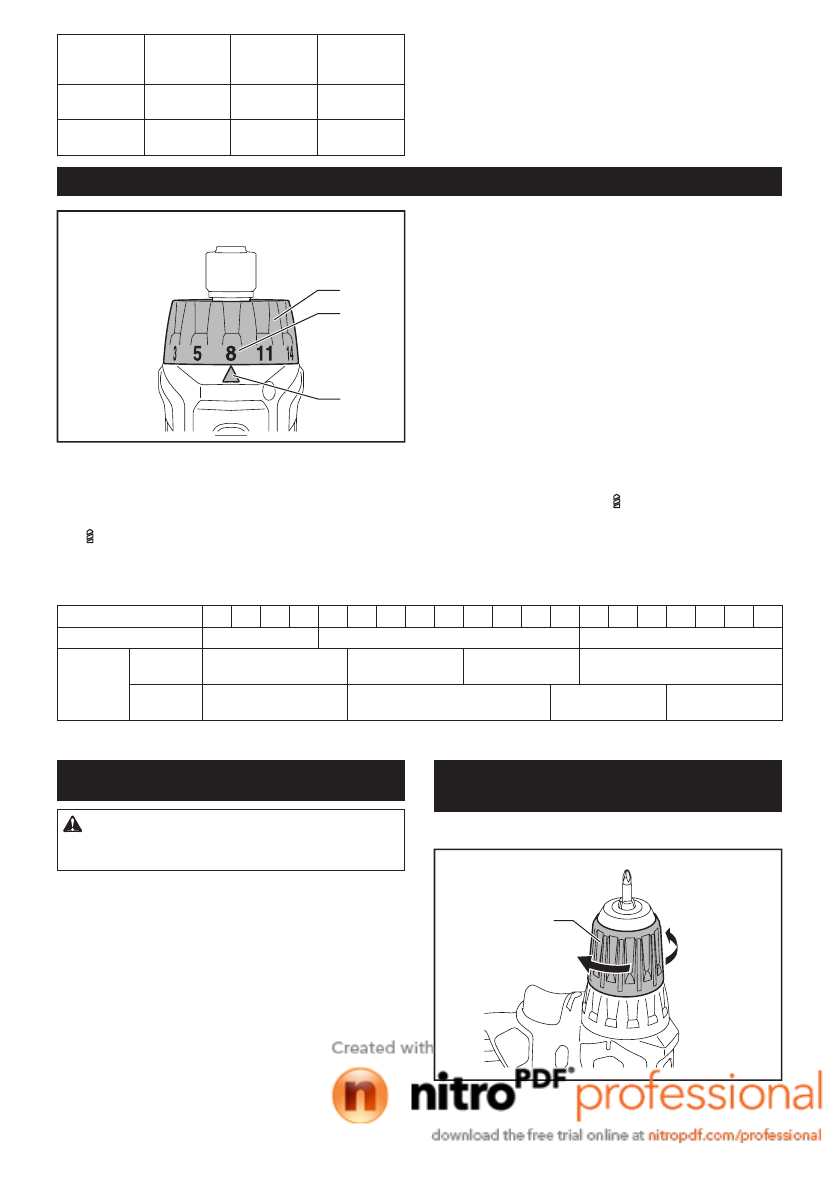

Adjusting the fastening torque

1

2

3

►

1.

 Adjusting ring

2.

 Graduation

3.

 Arrow

The fastening torque can be adjusted in 21 steps by turning the adjusting ring. Align the graduations with the arrow

on the tool body. You can get the minimum fastening torque at 1 and maximum torque at

marking.

The clutch will slip at various torque levels when set at the number 1 to 20. The clutch does not work at
the

marking.

Before actual operation, drive a trial screw into your material or a piece of duplicate material to determine which

torque level is required for a particular application.

The following shows the rough guide of the relationship between the screw size and graduation.

Graduation

1

2

3

4

5

6

7

8

9

10 11 12 13 14 15 16 17 18 19 20

Machine screw

M4

M5

M6

Wood

screw

Soft wood

(e.g. pine)

–

ɸ

3.5 x 22

ɸ

4.1x 38

–

Hard wood

(e.g. lauan)

–

ɸ

3.5 x 22

ɸ

4.1x 38

–

ASSEMBLY

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before carrying out any work on the tool.

Installing or removing driver bit/

drill bit

For Model DF332D (optional accessory)

3

2

1

►

1.

 Sleeve

2.

 Close

3.

 Open
