Changing the torque setting
(screwdriver mode " ")

The fastening torque can be adjusted by pressing the
button

 in screwdriver mode.

The numbers on the LED display shows torque setting.
The fastening torque is minimum at the number 1 and
maximum at the number 9. The indication "P" is a special
mode for fastening self drilling screws.
Every time the button

is pressed, the torque setting

changes from 1 to 9 and P, and then returns to 1.
The torque setting changes fast by keeping pressing the
button.
P mode is suitable for fastening self drilling screws into
steel plates in the following conditions.

•

With speed change lever at "2" side, fastening max.
4 mm screw into total max. 3.2 mm steel plates.

•

With speed change lever at "1" side, fastening max.
5 mm screw.

Before an actual operation, drive a trial screw into your
material or a piece of duplicate material to determine
which torque level is required for a particular application.
First, try to fasten the screw at "1". Then increase the
number to continue fastening. Hold the tool firmly during
operation.

CAUTION:

Don't fasten the machine screw on P mode. It may twist
your wrist suddenly and result in personal injury.

NOTE:

•

Make sure to check the number on LED display
before operation. If the number is not indicated,
contact your nearest Makita service center.

•

When the remaining battery capacity gets low in the
screwdriver mode, the light flashes a few times
when fastening the screw completely. In this case,
recharge the battery. If you keep operating, you
may not obtain the desired torque.

•

During pulling the switch trigger, the torque setting
cannot be changed.

•

For approximately one minute after releasing the
switch trigger, the torque setting can be changed. if
you want to change the torque setting after that,
pull the switch trigger again.

•

The number of torque setting does not mean
specific torque rate.

Empty signal for remaining
battery capacity

Fig.9

The remaining battery capacity will be signaled on the
LED display when pulling the switch trigger.

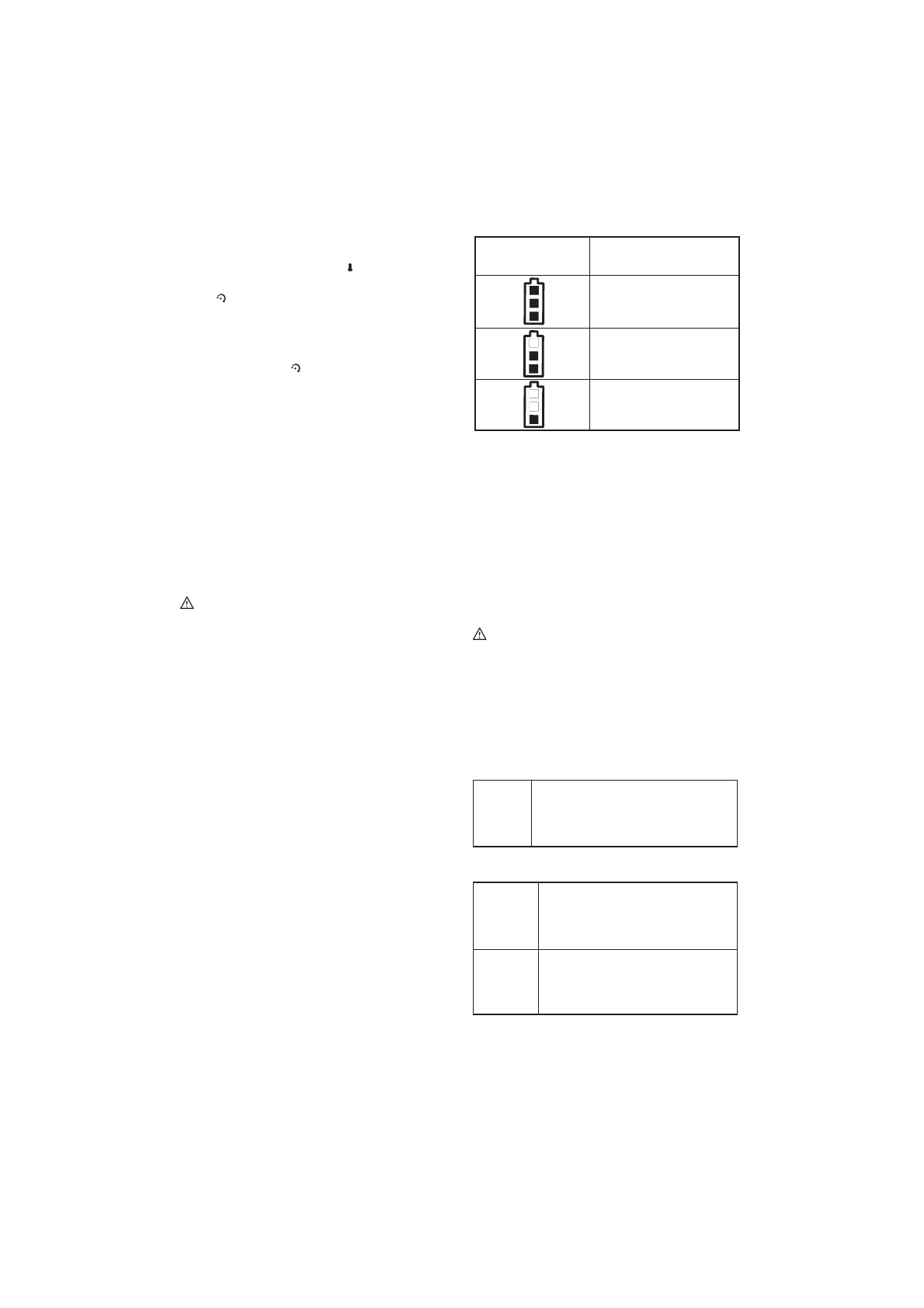

The remaining battery capacity is shown as the following
table.

LED indicator status

Remaining battery capacity

About 50% or more

About 20% - 50%

About less than 20%

012273

NOTE:

•

When the LED display goes off, the tool is turned off
to save the battery power. To check the remaining
battery capacity, slightly pull the switch trigger.

•

The LED display goes off approximately one
minute after releasing the switch trigger.

•

When the temperature of the tool gets high, the
light flashes once per second for one minute, and
then the LED display goes off. In this case, cool
down the tool before operation.

ASSEMBLY

CAUTION:

•

Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.

Installing or removing driver/drill/socket bit

Fig.10

Use only the driver/drill/socket bit shown in the figure. Do
not use any other driver/drill/socket bit.

For tool with shallow bit hole

A=12mm

B=9mm

Use only these type of bit. Follow the
procedure (1).
(Note) Bit-piece is not necessary.

006348

For tool with deep bit hole

To install these types of bits, follow
the procedure (1).

To install these types of bits, follow
the procedure (2).
(Note) Bit-piece is necessary for
installing the bit.

A=17mm

B=14mm

A=12mm

B=9mm

011405
