13

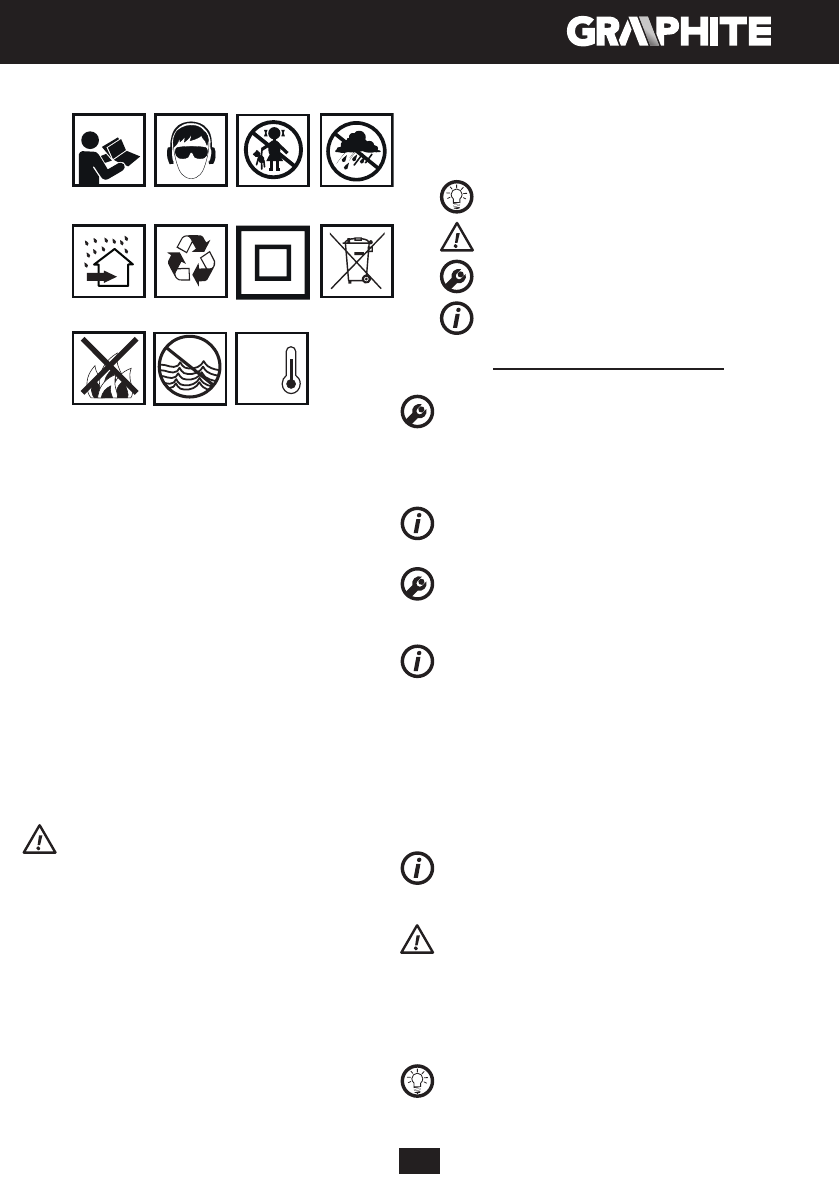

Explanation of used symbols
1
2
3
4
7
5
Max.
50°C
6
8
9
10
11
1.
Read instruction manual, observe warnings and safety
conditions therein.
2.
Use protective goggles and hearing protectors.
3.
Keep the tool away from children.
4.
Protect against rain.
5.
Use indoors, protect from water and moisture.
6.
Recycling.
7.
Protection class 2.
8.
Segregated waste collection.
9.
Do not throw cells into fire.
10.
Hazardous to water environment.
11.
Do not allow to heat above 50°C.
CONSTRUCTION AND USE
Drill is a battery powered tool. Drive consists of a commutator DC
motor with planetary gear. The drill is designed for screwing in
and out screws and bolts in wood, metal, plastics and ceramics,
and for drilling holes in such materials. Quick and tool-free
removal of the drill chuck allows to install single-ended driver
bits with different lengths and with hexagonal shanks, sized 6.35
mm (1/4"), directly on the spindle . An advantage of the solution
is operability in hard to reach areas.
Cordless, battery-powered power tools are especially useful for
works in interior furnishing, adaptation of premises etc.
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on
the drawing pages of this manual.
1.
Quick-release chuck
2.
Ring of the quick release chuck
3.
Torque adjustment ring
4.
Gear switch
5.
Direction selector switch
6.
Holder
7.
Battery
8.
Battery lock button
9.
Switch
10.
Illumination
11.
LED diodes
12.
Charger
13.
Button for battery level indication
14.
Battery level indicator (LEDs)
15.
Locking ring
16.
Spindle
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SET TINGS
INFORMATION
PREPARATION FOR OPERATION
REMOVING AND INSERTING THE BAT TERY
•
Set the direction selector switch (
5
) in middle position.
•
Push the battery lock button (
8
) and slide out the battery (
7
)
(
fig. A
).
•
Insert charged battery (
7
) into the handle holder, you should
hear when the battery lock button (
8
) snaps.
BAT TERY CHARGING
The battery for the device is supplied partially charged. Charge
the battery in ambient temperature between 4°C and 40°C. New
battery, or one that has not been used for a long time, will reach
full efficiency after approximately 3 to 5 charge/discharge cycles.
•
Remove the battery (
7
) from the device (
fig. A
).
•
Connect the charger to mains socket (
230 V AC
).
•
Slide the battery (
7
) into the charger (
12
) (
fig. B
). Make sure
the battery is properly fitted (pushed to the end).
When the charger is connected to a mains socket (
230 V AC
), the
green diode (
11
) on the charger turns on to indicate connected
supply.
When the battery (
7
) is placed in the charger (
12
), the red diode
(
11
) on the charger turns on to indicate that the charging is in
progress.
At the same time green diodes (
14
) of the battery level indication
are flashing in different configurations, see description below.
• All diodes are flashing
- battery is empty and requires
charging.
• 2 diodes are flashing
- the battery is partially discharged.
• 1 diode is flashing
- the battery level is high.
Once the battery is charged, the diode (
11
) on the charger lights
green, and all battery level diodes (
14
) light continuously. After
some time (approx. 15 s) battery level indication diodes (
14
) turn
off.
Do not charge the battery for more than 8 hours. Exceeding
this time limit may cause damage to battery cells. The charger
does not turn off automatically when the battery is full. Green
diode on the charger will remain on. Battery level indication
diodes turn off after some time. Disconnect power supply
before removing the battery from the charger socket. Avoid
consecutive short chargings. Do not charge the battery after
short use of the tool. Significant decrease of the period
between chargings indicates the battery is worn out and
should be replaced.
Batteries heat up when charging. Do not operate just
after charging – wait for the battery to cool down to room
temperature. It will prevent battery damage.
