The center position of the control buton locks the tool in the OFF position. When changing the
position of the control button, be sure the switch is released.

Torque Adjustment Ring (18+1 Torque Settings)

Your tool has an electronic adjustable torque screwdriver system for driving and removing a
wide range of fasteners. Circling the torque adjustment ring (2) are numbers and a drill bit
symbol. These numbers are used to set the ring to deliver a torque range. The higher the
number on the ring, the higher the torque and the larger the fastener that can be driven. To
select any of the numbers, rotate until the desired number aligns with the arrow.

2-Speed Gear Switch

The 2-speed feature of your tool allows you to shift gears for greater versatility. To select speed
1 (highest torque setting), turn the tool off and permit it to stop. Slide the gear switch (1) all the
way forward to speed 2(highest speed setting).

WARNING:

         Do not change speed when the tool is running. Always allow the drill to come to

a complete stop before changing speeds.

Keyless Chuck

WARNING:

Always lock off trigger switch and disconnect tool from power source when

changing accessories.

WARNING:

Always ensure the bit is secure before starting the tool. A loose bit may eject

from tool causing possible personal injury.
Your tool features a double-sleeve keyless chuck (3). To insert a drill bit or other accessory,
follow these steps.
1. Turn tool off and disconnect tool from power source.
2. Hold the sleeve A  to secure the chuck  with one hand and  grasp
    sleeve B  with the hand  to change accesory. Rotate the sleeve
    counterclockwise (as viewed from the front) far enough to accept
    the desired accessory.
3. Insert the accessory into the chuck and tighten securely by rotating
    the sleeve A clockwise.

LED Worklight

This drill features an LED worklight (7). This LED worklight (7) could automatically be turned on
when the speed control trigger is squeezed.

     WARNING:

The light of this power tool is intended to illuminate the power tool’s direct area

of working operation and is not suitable for household room illumination.

Installing and Removing the Battery Pack

NOTE:

For best results, make sure

your battery pack is fully charged. To install the battery

pack (8) into the tool handle, align the battery pack with the rails inside the tool’s handle and
slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does
not disengage. To remove the battery pack from the tool, press the release button (9) and firmly

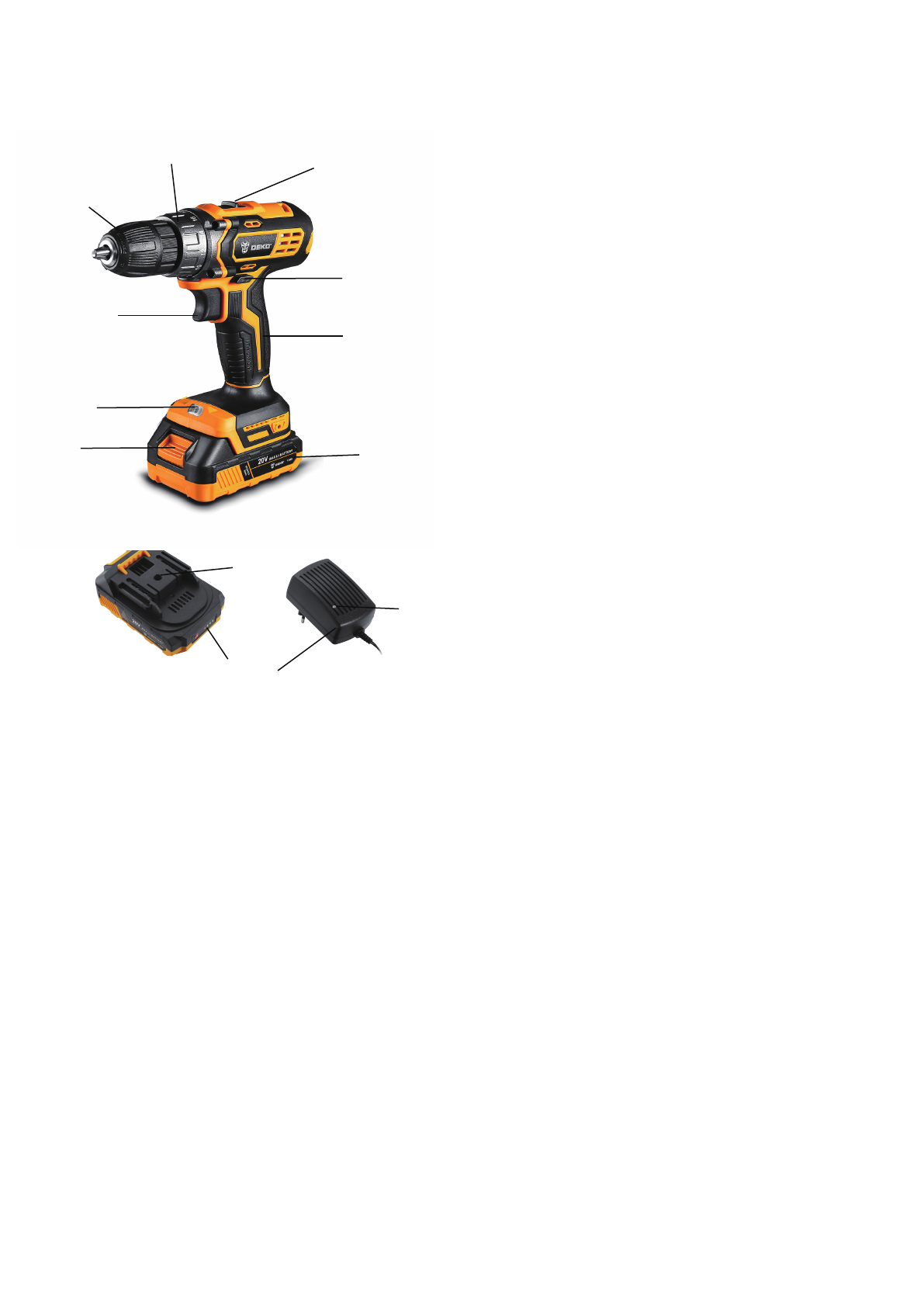

Parts  Description

1.2-speed gear switch
2.Torque adjustment ring
3. 10mm(3/8”) keyless chuck
4. Forward/reverse switch
5. Speed on/off control trigger
6. Handle
7. LED worklight
8.Battery pack
9.Battery pack release button
10.Battery indicator
11.Charing input port.
12.Adapter/Charger
13. Indicator light

      Red light--- in charge

      Green light- fully charged

10

13

12

11

6

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood,
metal, ceramics and plastic.

DO NOT

 use under wet conditions or in presence of flammable liquids or gases.

DO NOT

 let children come into contact with the tool. Supervision is required when inexperi-

enced operators use this tool.

Variable Speed Control Trigger

To turn the tool on, squeeze the

speed on/off control trigger

 (5). To turn the tool off, release

the trigger. The chuck will stop as soon as the trigger (5) is fully released.

NOTE:

Continuous use in variable speed range is not recommended. It may damage the switch

and should be avoided.

Forward/Reverse Switch

A forward/reverse switch (4) determines the direction of the tool and also serves as a lock-off
button.
To select forward rotation, release the switch and depress the forward/reverse control button
on the right side of the tool.
To select reverse, release the switch and depress the forward/reverse control button on the left
side of the tool.

1

2

5

4

6

3

7

8

9
