16

 | English

1 609 92A 1RB | (22.1.16)

Bosch Power Tools

GSB 14,4 VE-EC / GSB 18 VE-EC

Typically the A-weighted noise levels of the product are: Sound pressure level

87 dB(A); Sound power level 98 dB(A). Uncer-

tainty K

= 3 dB.

Wear hearing protection!

The vibration level given in this information sheet has been
measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with anoth-
er. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or insertion tools or is
poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working
period.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.

Assembly

Battery Charging

Note:

The battery supplied is partially charged. To ensure full

capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.

The lithium-ion battery is protected against deep discharging
by the “Electronic Cell Protection (ECP)”. When the battery is
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.



Do not continue to press the On/Off switch after the
machine has been automatically switched off.

The bat-

tery can be damaged.

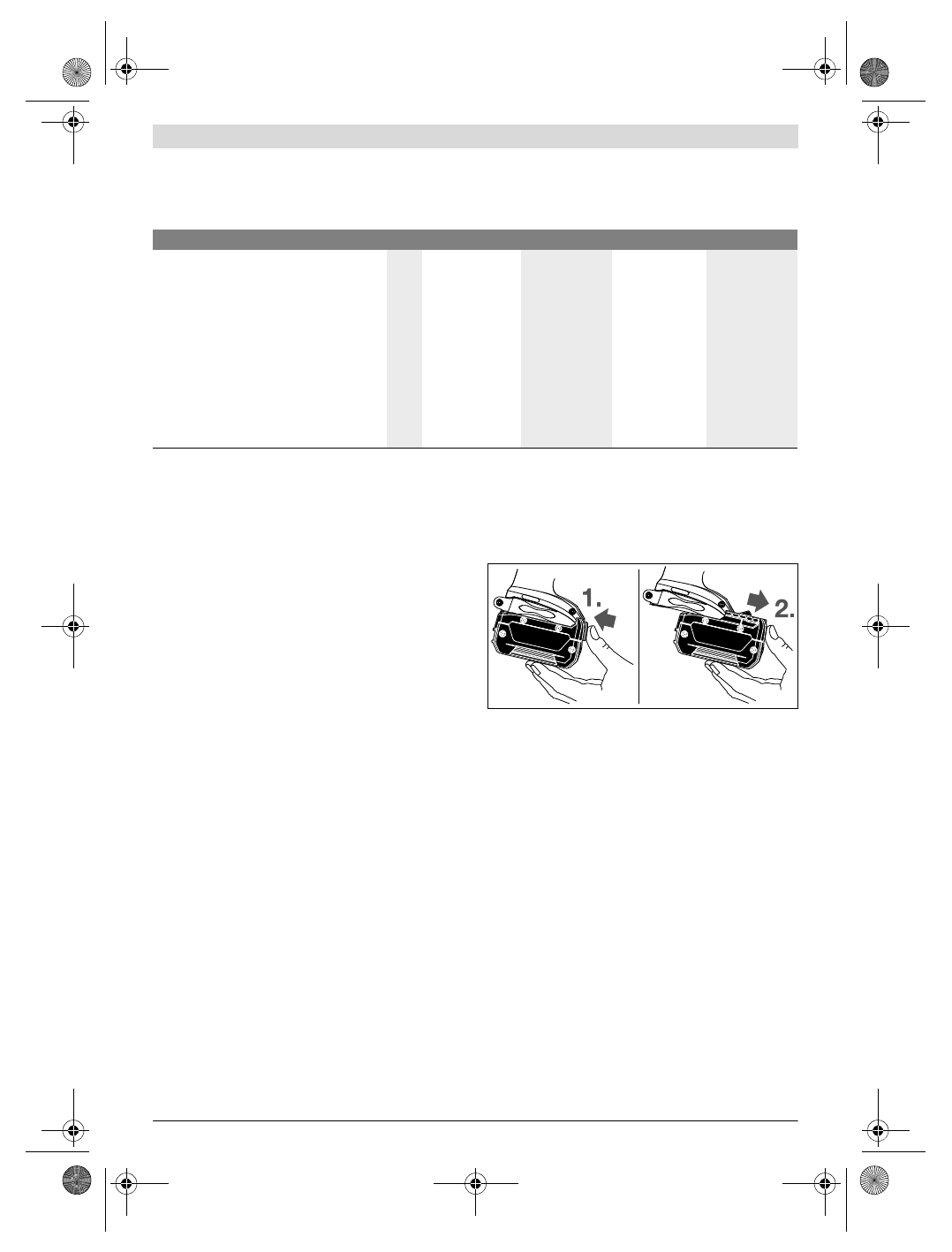

Removing the battery

The battery

12

 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery
unlocking button

13

 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a
spring.

To remove the battery

12

, press the unlocking button

13

 and

pull out the battery toward the front.

Do not exert any force.

Auxiliary Handle



Operate your machine only with the auxiliary handle 4.



Before performing any work, make sure that the auxil-
iary handle is firmly tightened.

Loss of control can lead

to injury.

Mounting the Auxiliary Handle

To open the auxiliary handle, turn the bottom part of the aux-
iliary handle

4

 in counterclockwise direction.

Pull back the intermediate piece of the auxiliary handle

5

 and

hold it in this position. Slide the auxiliary handle over the drill
chuck to mount the auxiliary handle on the power tool. Then
let go of the intermediate piece

5

.

Afterwards, tighten the bottom part of the auxiliary handle

4

again by turning in clockwise direction.

Changing the position of the auxiliary handle

The auxiliary handle

4

 can be set to any position for a secure

and low-fatigue working posture.

GSR  14,4 VE-EC GSR  18 VE-EC GSB  14,4 VE-EC

GSB 18 VE-EC

Vibration total values a

h

 (triax vector sum)

and uncertainty K determined according to
EN 60745-2-1, EN 60745-2-2.

Drilling in metal:
a

h

K
Impact drilling in concrete:
a

h

K
Screws:
a

h

K

m/s

2

m/s

2

m/s

2

m/s

2

m/s

2

m/s

2

2.5
1.5

-
-

< 2.5

1.5

2.5
1.5

-
-

< 2.5

1.5

2.5
1.5

12.5

1.5

< 2.5

1.5

2.5
1.5

12.5

1.5

< 2.5

1.5
