16

 | English

1 609 92A 33A | (30.9.16)

Bosch Power Tools

The vibration level given in this information sheet has been
measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main appli-
cations of the tool. However if the tool is used for different ap-
plications, with different accessories or insertion tools or is
poorly maintained, the vibration emission may differ. This may
significantly increase the exposure level over the total working
period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may signif-
icantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from
the effects of vibration such as: maintain the tool and the acces-
sories, keep the hands warm, organisation of work patterns.

Declaration of Conformity

We declare under our sole responsibility that the product de-
scribed under “Technical Data” is in conformity with all rele-
vant provisions of the directives 2009/125/EC (Regulation
1194/2012), 2011/65/EU, until 19 April 2016:
2004/108/EC, from 20 April 2016 on: 2014/30/EU,
2006/42/EC including their amendments and complies with
the following standards: EN 60745-1, EN 60745-2-1,
EN 60745-2-2, EN 50581.

Technical file (2006/42/EC) at:
Robert Bosch Power Tools GmbH, PT/ECS,
70538 Stuttgart, GERMANY

Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017

Assembly

Battery Charging

Note:

The battery supplied is partially charged. To ensure full

capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.

The lithium-ion battery is protected against deep discharging
by the “Electronic Cell Protection (ECP)”. When the battery is
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.



Do not continue to press the On/Off switch after the
machine has been automatically switched off.

The bat-

tery can be damaged.

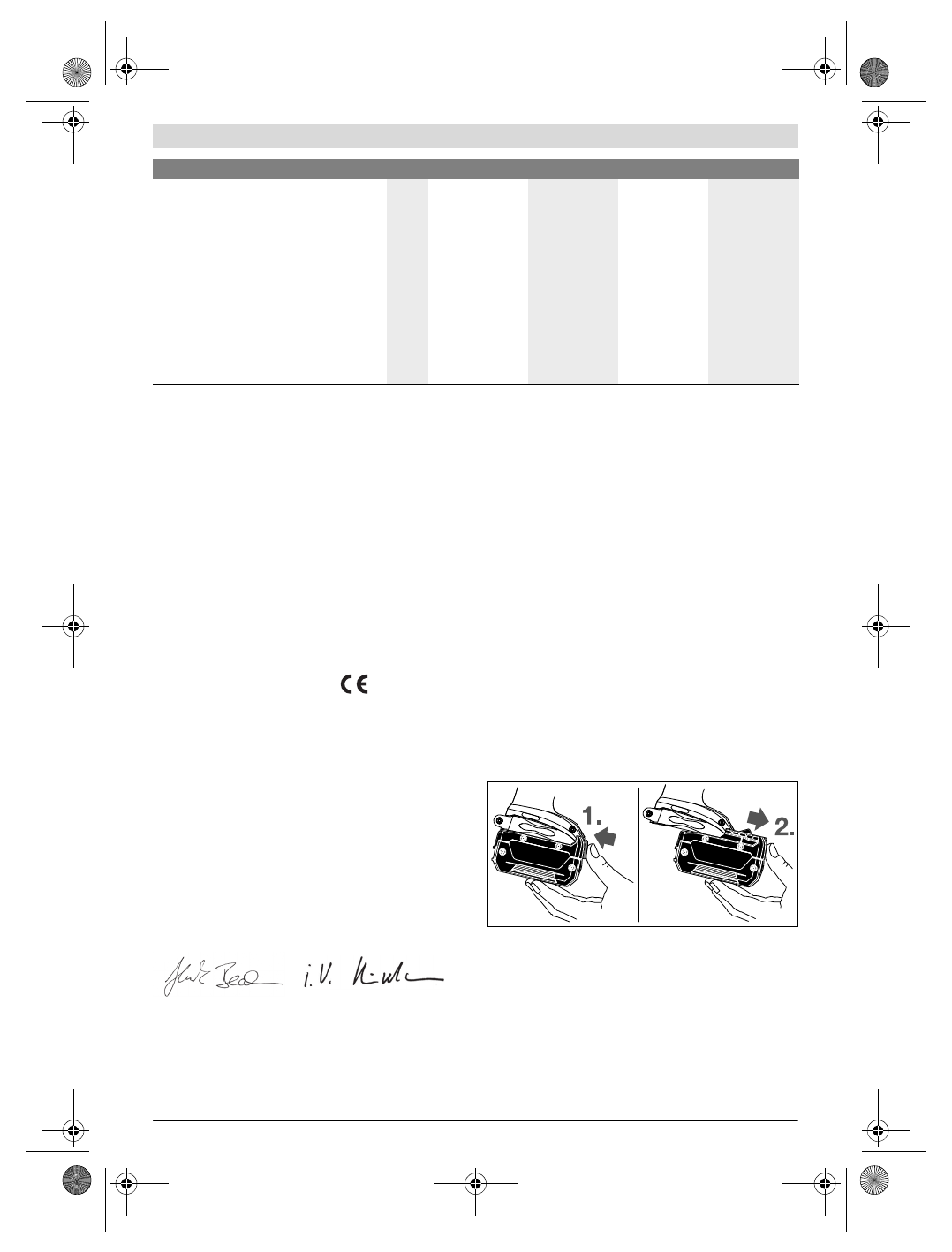

Removing the battery

The battery

8

 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery
unlocking button

9

 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a
spring.

To remove the battery

8

, press the unlocking button

9

 and

pull out the battery toward the front.

Do not exert any force.

Changing the Tool (see figure A)



Before any work on the machine itself (e. g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating
the On/Off switch.

Open the keyless chuck

2

 by turning in rotation direction



,

until the tool can be inserted. Insert the tool.

GSR  14,4 V-EC

GSR  18 V-EC GSB  14,4 V-EC

GSB 18 V-EC

Vibration total values a

h

 (triax vector sum)

and uncertainty K determined according to
EN 60745-2-2.

Drilling in metal:
a

h

K

Impact drilling in concrete:
a

h

K

Screws:
a

h

K

m/s

2

m/s

2

m/s

2

m/s

2

m/s

2

m/s

2

<2.5

1.5

-
-

<2.5

1.5

<2.5

1.5

-
-

<2.5

1.5

<2.5

1.5

9.0
1.5

<2.5

1.5

<2.5

1.5

8.0
1.5

<2.5

1.5

Henk Becker
Executive Vice President
Engineering and
Manufacturing

Helmut Heinzelmann
Head of Product Certification
PT/ECS
