 BSS18B6

..................... 4747 50 01...

   ...000001-999999

.........................1/4" (6,35  mm)

....................0-3000 min

-1

....................0-4000 min

-1

......................... 280 Nm

........................ M14

........................... 18 V

............ 1,7 kg... 2,4 kg

.................-18...+50 °C

................ L1815R, ... L1890R

.. AL18G, AL1218G, BL1218, BLK1218

........................ 99,5 dB  (A)

...................... 110,5 dB  (A)

.......................... 6,7 m/s

2

.......................... 1,5 m/s

2

ENGLISH

SPECIFIED CONDITIONS OF USE

The cordless impact screwdriver can be used to tighten and

loosen nuts and bolts wherever no mains connection is

available.
Do not use this product in any other way as stated for

normal use.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product

described under “Technical Data” ful

fi

 lls all the relevant

provisions of the directives 2011/65/EU (RoHS), 2014/30/

EU, 2006/42/EC and the following harmonized standards

have been used:
EN 62841-1:2015

EN 62841-2-2:2014

EN 55014-1:2017

EN 55014-2:2015

EN IEC 63000:2018

Winnenden, 2019-07-18

Alexander Krug

Managing Director
Authorized to compile the technical

fi

 le.

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

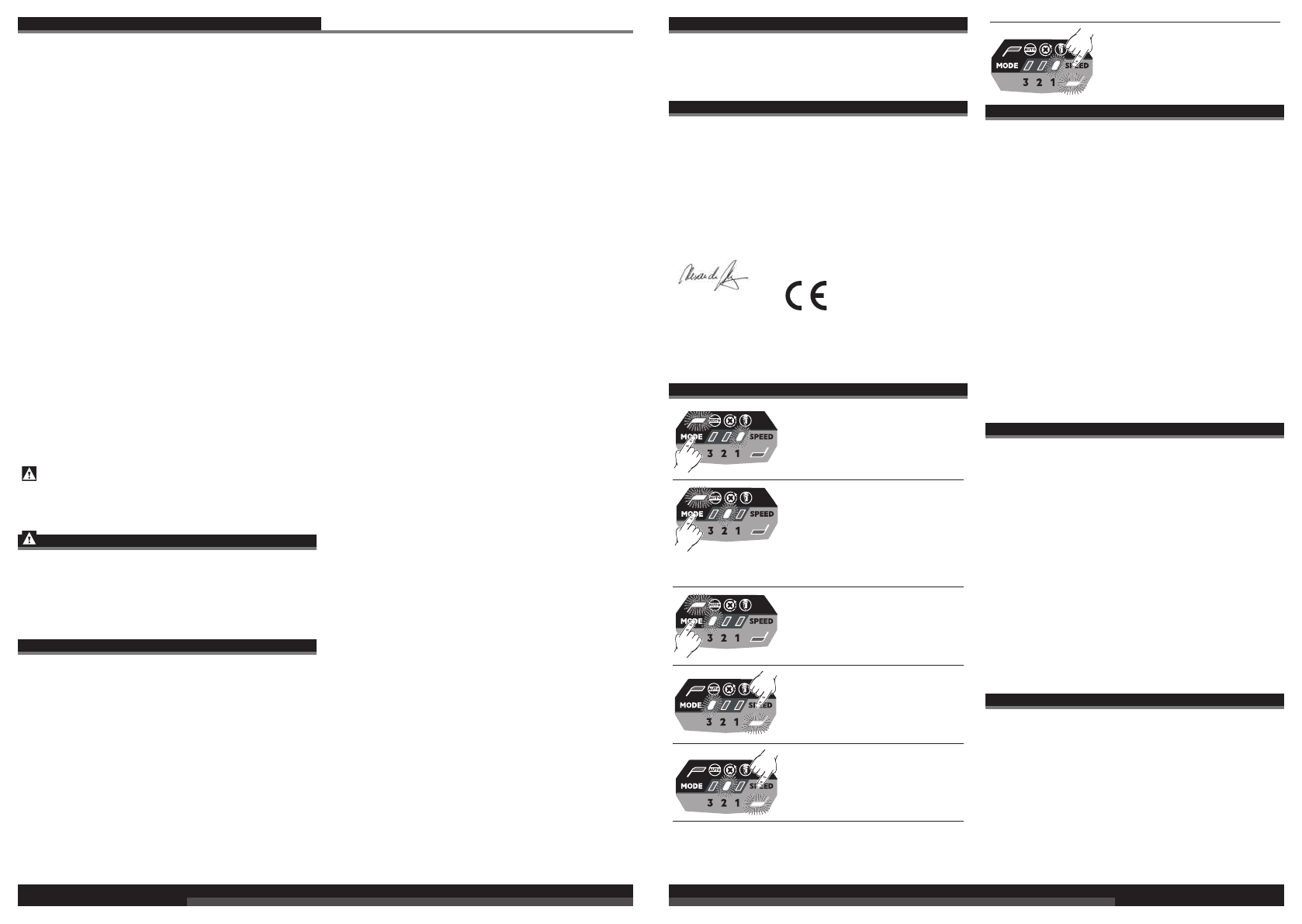

MODE SELECTION

1 x

Mode 1: Self tapping screw

Use this mode to drive self tapping

screws into metal. This mode starts at a

high speed to facilitate hole drilling and

then lowers the speed when driving in

the screw.

2 x

Mode 2: Assistance

Use this mode to drive screws when

better control is required. This mode

starts at a lower speed and then

increases to

fi

 nish driving in the screw.

In reverse direction, this mode rotates

in 6 pulses moving up to a controlled

reverse speed designed to remove

screws with damaged heads.

3 x

Mode 3: Auto tight (120 Nm)

Use this mode to avoid overdriving the

nut or bolt. After the impact screwdriver

detects a resistance, it impacts for

about 1 second and then stops

automatically.

1 x

Speed mode 3

Maximum speed (3000 min-1)

Maximum torque (280 Nm)

Use this mode to drive large fasteners

when maxmium force and speed are

required.

2 x

Speed mode 2

Medium speed (2200 min

-1

)

Medium torque (210 Nm)

Use this mode to drive medium-sized

fasteners when medium force and

speed are required.

3 x

Speed mode 1

Low Speed (750 min

-1

)

Low torque (50 Nm)

Use this mode to drive small fasteners

when lowest speed and force are

required.

OPERATION

Note: It is recommended after fastening to always check

the torque with a torque wrench.

The fastening torque is a

ff

 ected by a wide variety of factors

including the following.
•  State of battery charge – When the battery is discharged

voltage will drop and the fastening torque will be reduced.

•  Operation at speeds – Operating the tool at low speeds

will cause a reduction in fastening torques.

•  Fastening position – Holding the tool or the driving

fastener in various angles will a

ff

 ect the torque.

•  Drive accessory/socket – Failure to use the correct size

accessory or socket, or a non-impact rated accessory may

cause a reduction in the fastening torque.

•  Use of accessories and extensions – Depending on the

accessory or extension

fi

 tment can reduce the fastening

force of the impact wrench.

•  Bolt/Nut – Fastening torques may di

ff

 er according to the

diameter of the nut or bolt, the class of nut/bolt and the

length of nut/bolt.

•  Condition of the fastener – Contaminated, corroded, dry or

lubricated fasteners may vary the fastening torques.

•  Condition and base material – The base material of the

fastener and any component in between the surfaces may

e

ff

 ect the fastening torque (dry or lubricated base, soft or

hard base, disc, seal or washer between fastener and

base material).

IMPACTING TECHNIQUES

The longer a bolt, screw, or nut is impacted, the tighter it will

become.
To help prevent damaging the fasteners or workpieces,

avoid excessive impacting.
Be particularly careful when impacting smaller fasteners

because they require less impacting to reach optimum

torque.
Practice with various fasteners, noting the length of time

required to reach the desired torque.
Check the tightness with a hand-torque wrench.
If the fasteners are too tight, reduce the impacting time.
If they are not tight enough, increase the impacting time.
Oil, dirt, rust or other matter on the threads or under the

head of the fastener a

ff

 ects the degree of tightness.

The torque required to loosen a fastener averages 75% to

80% of the tightening torque, depending on the condition of

the contacting surfaces.
On light gasket jobs, run each fastener down to a relatively

light torque and use a hand torque wrench for

fi

 nal

tightening.

BATTERIES

Battery packs which have not been used for some time

should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the

performance of the battery pack. Avoid extended exposure

to heat or sunshine (risk of overheating).
The contacts of chargers and battery packs must be kept

clean.
For an optimum life-time, the battery packs have to be fully

charged, after used.
To obtain the longest possible battery life remove the battery

pack from the charger once it is fully charged.
For battery pack storage longer than 30 days:

Store the battery pack where the temperature is below 27°C

ENGLISH

TECHNICAL DATA  CORDLESS IMPACT SCREWDRIVER

Production code......................................................................

Tool reception .........................................................................

No-load speed ........................................................................

Impact rate (high speed).........................................................

Max. torque with battery 6.0 Ah ..............................................

Max. diameter bolt / nut ..........................................................

Battery voltage........................................................................

Weight according EPTA-Procedure 01/2014 (1.5 Ah, ... 9.0 Ah) ......

Recommended ambient operating temperature .....................

Recommended battery types..................................................

Recommended charger ..........................................................

Noise/vibration information

Measured values determined according to EN 62841.

Typically, the A-weighted noise levels of the tool are:

  Sound pressure level (Uncertainty K=3dB(A)).....................

  Sound power level (Uncertainty K=3dB(A)) .........................

Wear ear protectors!

Total vibration values (vector sum in the three axes)

determined according to EN 62841.

Vibration emission value a

h

  Impact tightening of fasteners of the maximum capacity of the tool

 Uncertainty K=

.....................................................................

 WARNING Read all safety warnings, instructions,

illustrations and speci

fi

 cations provided with this power

tool.

Failure to follow all instructions listed below may result

in electric shock,

fi

 re and/or serious injury.

Save all warnings and instructions for future reference.

 IMPACT SCREWDRIVER SAFETY WARNINGS

Hold the power tool by insulated gripping surfaces,

when performing an operation where the fastener may

contact hidden wiring.

Fasteners contacting a „live“ wire

may make exposed metal parts of the power tool „live“ and

could give the operator an electric shock.

Wear ear protectors.

 Exposure to noise can cause hearing

loss.

ADDITIONAL SAFETY AND WORKING INSTRUCTIONS

Use protective equipment. Always wear safety glasses when

working with the machine. The use of protective clothing is

recommended, such as dust mask, protective gloves, sturdy

non-slip footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to

health. Do not inhale the dust. Wear a suitable dust

protection mask.
Do not machine any materials that present a danger to

health (e.g. asbestos).
Switch the device o

ff

  immediately if the insertion tool stalls!

Do not switch the device on again while the insertion tool is

stalled, as doing so could trigger a sudden recoil with a high

reactive force. Determine why the insertion tool stalled and

rectify this, paying heed to the safety instructions.
The possible causes may be:

•  it is tilted in the workpiece to be machined

•  it has pierced through the material to be machined

•  the power tool is overloaded

Do not reach into the machine while it is running.
The insertion tool may become hot during use.

WARNING!

Danger of burns

•  when changing tools

•  when setting the device down
Chips and splinters must not be removed while the machine

is running.
When working in walls ceiling, or

fl

 oor, take care to avoid

electric cables and gas or waterpipes.
Clamp your workpiece with a clamping device. Unclamped

workpieces can cause severe injury and damage.
Remove the battery pack before starting any work on the

machine.
Do not dispose of used battery packs in the household

refuse or by burning them. AEG Distributors o

ff

 er to retrieve

old batteries to protect our environment.
Do not store the battery pack together with metal objects

(short circuit risk).
Use only System GBS chargers for charging System GBS

battery packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store

only in dry rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under

extreme load or extreme temperatures. In case of contact

with battery acid wash it o

ff

  immediately with soap and

water. In case of eye contact rinse thoroughly for at least 10

minutes and immediately seek medical attention.

Warning!

To reduce the risk of

fi

 re, personal injury, and

product damage due to a short circuit, never immerse your

tool, battery pack or charger in

fl

 uid or allow a

fl

 uid to

fl

 ow

inside them. Corrosive or conductive

fl

 uids, such as

seawater, certain industrial chemicals, and bleach or bleach

containing products, etc., can cause a short circuit.

WARNING

The vibration and noise emission level given in this information sheet has been measured in accordance with a standardized

test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of

exposure.
The declared vibration and noise emission level represents the main applications of the tool. However if the tool is used for

di

ff

 erent applications, with di

ff

 erent accessories or poorly maintained, the vibration and noise emission may di

ff

 er. This may

signi

fi

 cantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration and noise should also take into account the times when the tool is switched

o

ff

  or when it is running but not actually doing the job. This may signi

fi

 cantly reduce the exposure level over the total working

period.
Identify additional safety measures to protect the operator from the e

ff

 ects of vibration and/or noise such as: maintain the tool

and the accessories, keep the hands warm, organization of work patterns.
